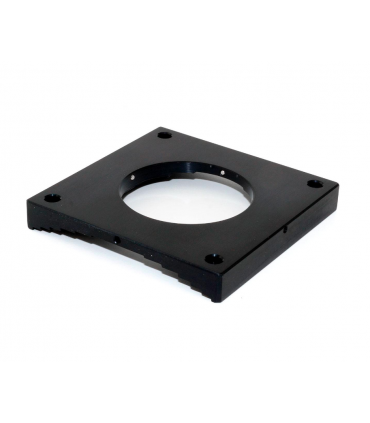

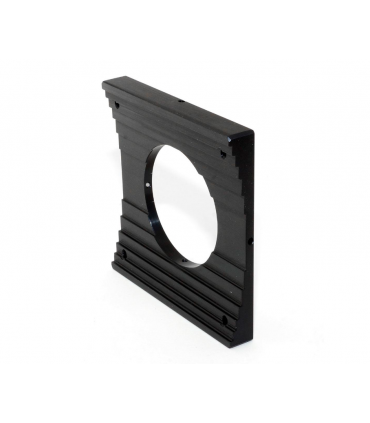

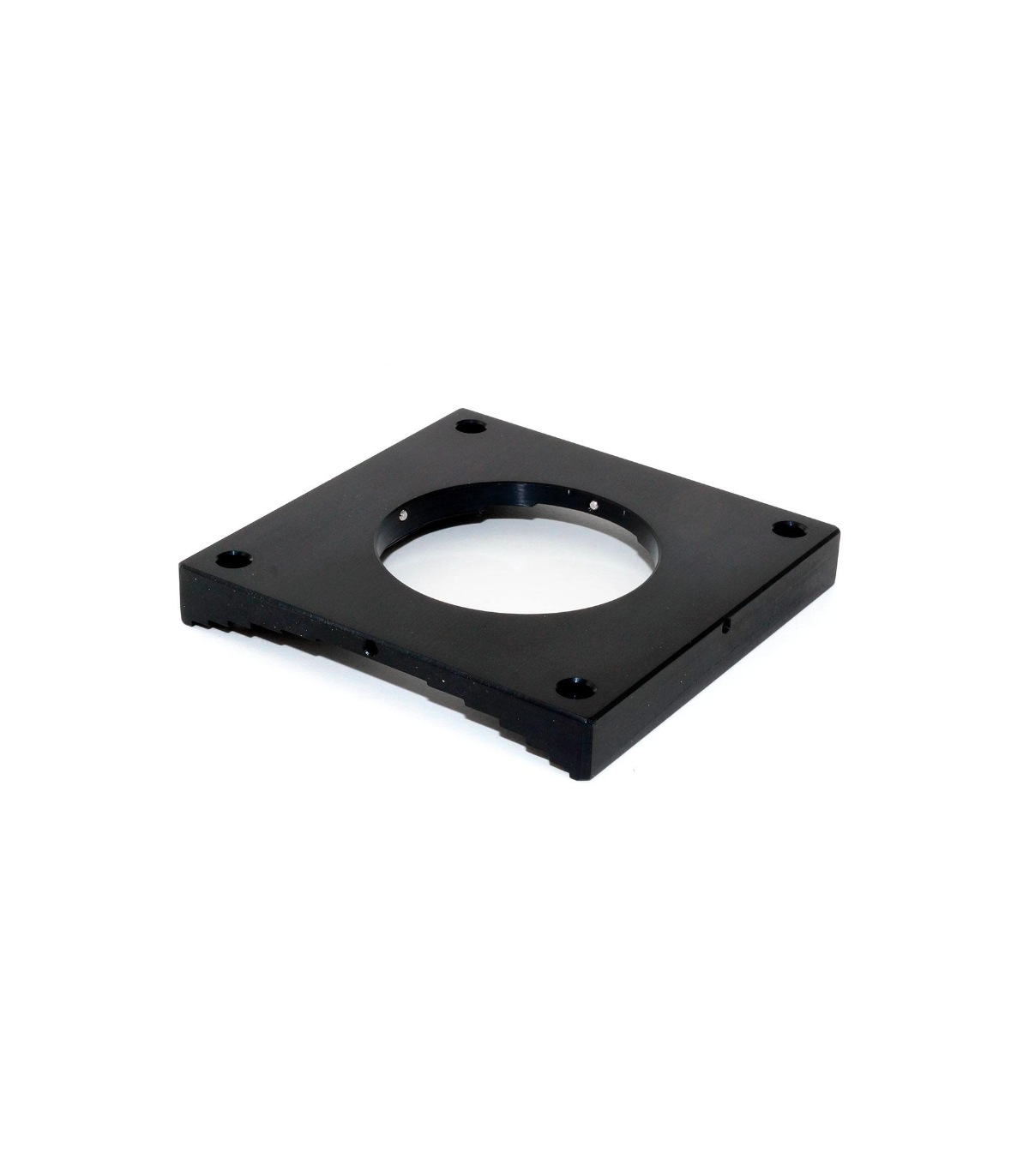

TS-Optics Newtonian base for Starlight Feather Touch 2" for D-190 mm

Newtonian base for Starlight Feather Touch focuser FTF2008, FTF2015... Suitable for 190 mm diameter tubes.

♦ CNC Bases for 2" Starlight Feather Touch Focusers

♦ The contact surface optimally adapts to the tube surface thanks to its stepped design, it is not possible to tip over

♦ The base is suitable for telescope tubes with a diameter of 190mm, eg many 6" Newtonian telescopes

♦ The focuser is attached with four grub screws.

♦ Distance between the holes for fixing the telescope: 69.9 mm along and 69.9 mm along the tube

€99.13
Entrega entre 7 y 9 días laborables
Reference:
BA20CL-190mm
Description

Base newtoniana para Starlight FTF20.. Enfocadores

La base se adapta a telescopios newtonianos con tubos de 190 mm de diámetro. Debido a una forma especial de la superficie de contacto, la base siempre se adapta de manera óptima a la curvatura del tubo. La inclinación no es posible. La gran superficie de contacto también garantiza la estabilidad y evita que el tubo se deforme.

La base se fija al tubo con tornillos M4 (no incluidos).

La base tiene cuatro tornillos para un ajuste preciso.

Especificaciones:

Newtonian Base: suitable for FTF20.. Feather Touch focusers
Curvature: Suitable for tubes with 190 mm (7.48") diameter
Distance of the holes for attaching to the tube: 69.9 mm x 69.9 mm (2.75" x 2.75")
Diameter of the central bore: 69.9 mm (2.75")
Outer dimensions: 86 mm x 86 mm
Clamping of the focusers: at the dovetail ring of the the focuser with four headless screws (supplied)
Product Details
BA20CL-190mm
