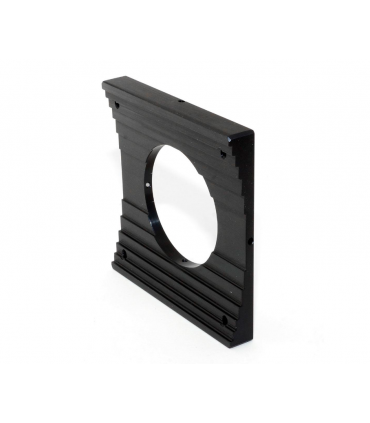

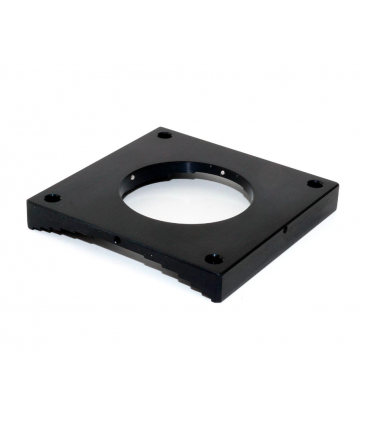

TS-Optics Newtonian base for Starlight Feather Touch 2" for D-280 mm
Newtonian base for Starlight Feather Touch focuser FTF2008, FTF2015... Suitable for 280 mm diameter tubes.
♦ CNC Bases for 2" Starlight Feather Touch Focusers
♦ The contact surface optimally adapts to the tube surface thanks to its stepped design, it is not possible to tip over
♦ The base is suitable for telescope tubes with a diameter of 280mm, eg many 10" Newtonian telescopes from Skywatcher, Celestron, Orion UK
♦ The focuser is attached with four grub screws.
♦ Distance between the holes for fixing the telescope: 69.9 mm along and 69.9 mm along the tube
Newtonian base for Starlight FTF20.. Focusers
The base fits Newtonian telescopes with 280mm diameter tubes. Due to a special shape of the contact surface, the base always adapts optimally to the curvature of the tube. Tilt is not possible. The large contact surface also ensures stability and prevents the tube from deforming.
The base is fixed to the tube with M4 screws (not included).
The base has four screws for precise adjustment.
Especificaciones:
| Newtonian Base: | suitable for FTF20.. Feather Touch focusers |
| Curvature: | Suitable for tubes with 280 mm (11.02") diameter |
| Distance of the holes for attaching to the tube: | 69.9 mm x 69.9 mm (2.75" x 2.75") |
| Diameter of the central bore: | 69.9 mm (2.75") |
| Outer dimensions: | 86 mm x 86 mm |
| Clamping of the focusers: | at the dovetail ring of the the focuser with four headless screws (supplied) |
