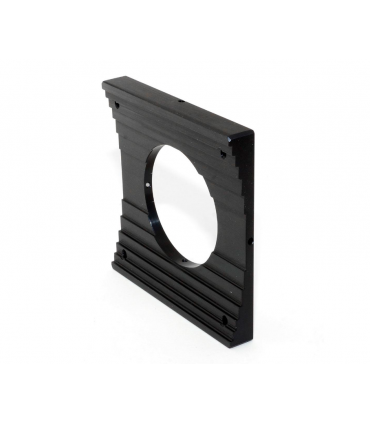

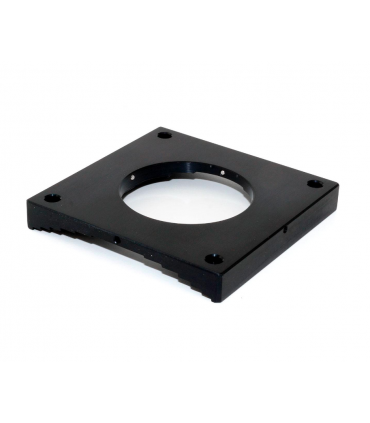

TS-Optics Newtonian base for Starlight Feather Touch 2" for D-230 mm

Newtonian base for Starlight Feather Touch focuser FTF2008, FTF2015... Suitable for tubes with a diameter of 230 mm or more.

♦ CNC Bases for 2" Starlight Feather Touch Focusers

♦ The contact surface optimally adapts to the tube surface thanks to its stepped design, it is not possible to tip over

♦ The base is suitable for telescope tubes with a diameter of 230mm, eg many 8" Newtonian telescopes from GSO or Skywatcher

♦ The focuser is attached with four grub screws.

♦ Distance between the holes for fixing the telescope: 100 mm along and 100 mm along the tube

€99.13
Entrega entre 7 y 9 días laborables
Reference:
BA20CL-230mm
Description

Newtonian base for Starlight FTF20.. Focusers

The base fits Newtonian telescopes with 230mm diameter tubes. Due to a special shape of the contact surface, the base always adapts optimally to the curvature of the tube. Tilt is not possible. The extra large contact surface also ensures stability and prevents the tube from giving way.

The base is fixed to the tube with M4 screws (not included).

Especificaciones:

Newtonian Base: suitable for FTF20.. Feather Touch focusers
Curvature: Suitable for tubes with 230 mm (9.05") diameter
Distance of the holes for attaching to the tube: 100 mm x 100 mm (3.94" x 3.94")
Diameter of the central bore: 69.9 mm (2.75")
Outer dimensions: 119 mm x 119 mm
Clamping of the focusers: at the dovetail ring of the the focuser with four headless screws (supplied)
Product Details
BA20CL-230mm
