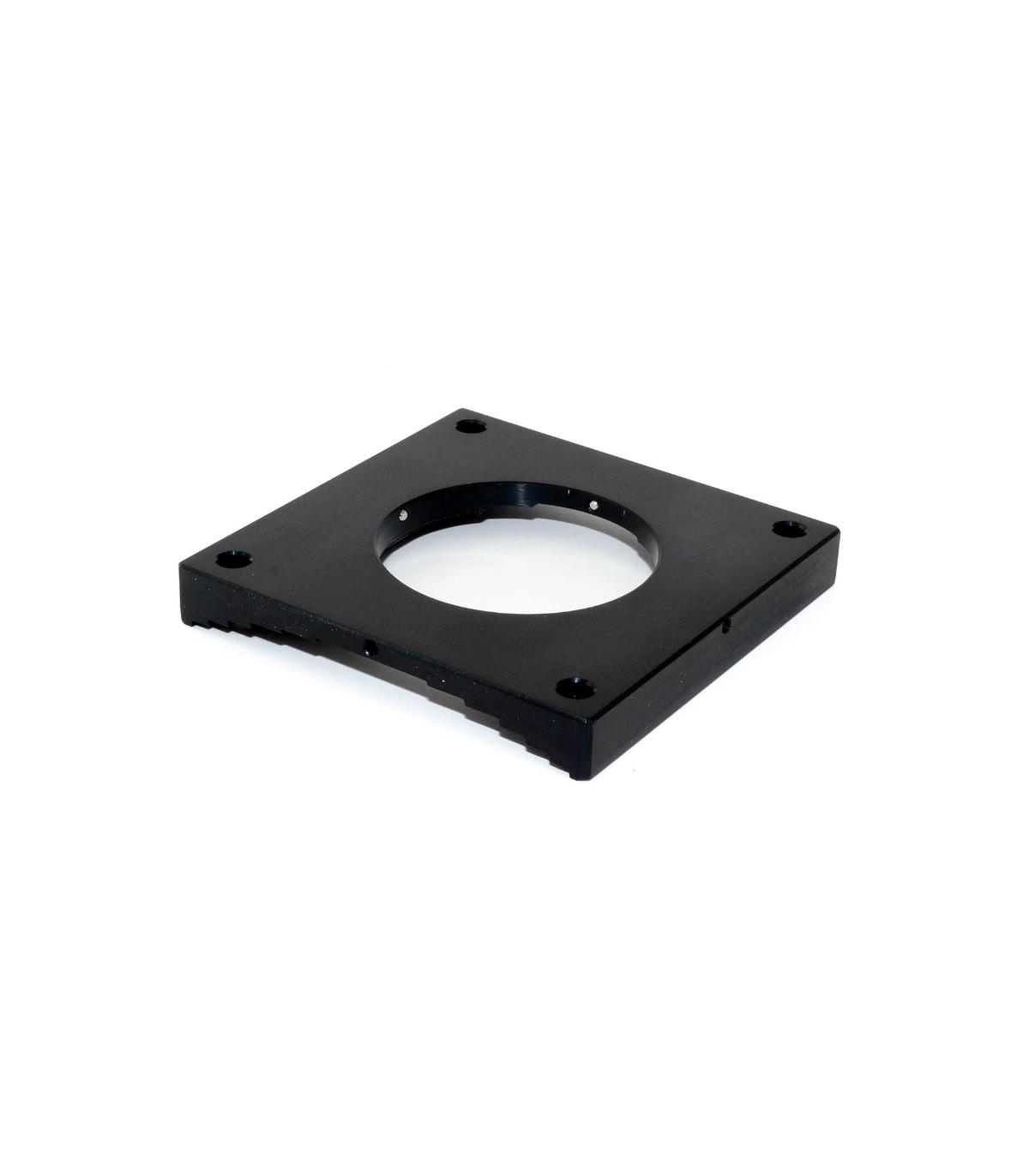

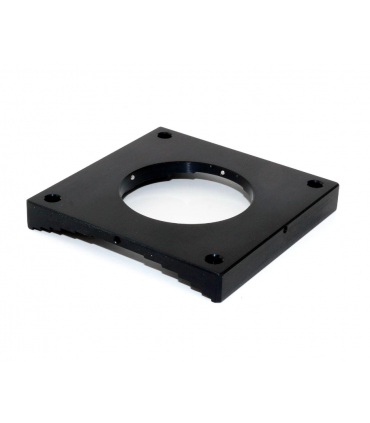

TS-Optics Base newtoniana para Starlight Feather Touch 2" para D-190 mm
Base newtoniana para enfocador Starlight Feather Touch FTF2008, FTF2015... Apto para tubos de 190 mm de diámetro.
♦ Bases CNC para enfocadores Starlight Feather Touch de 2"

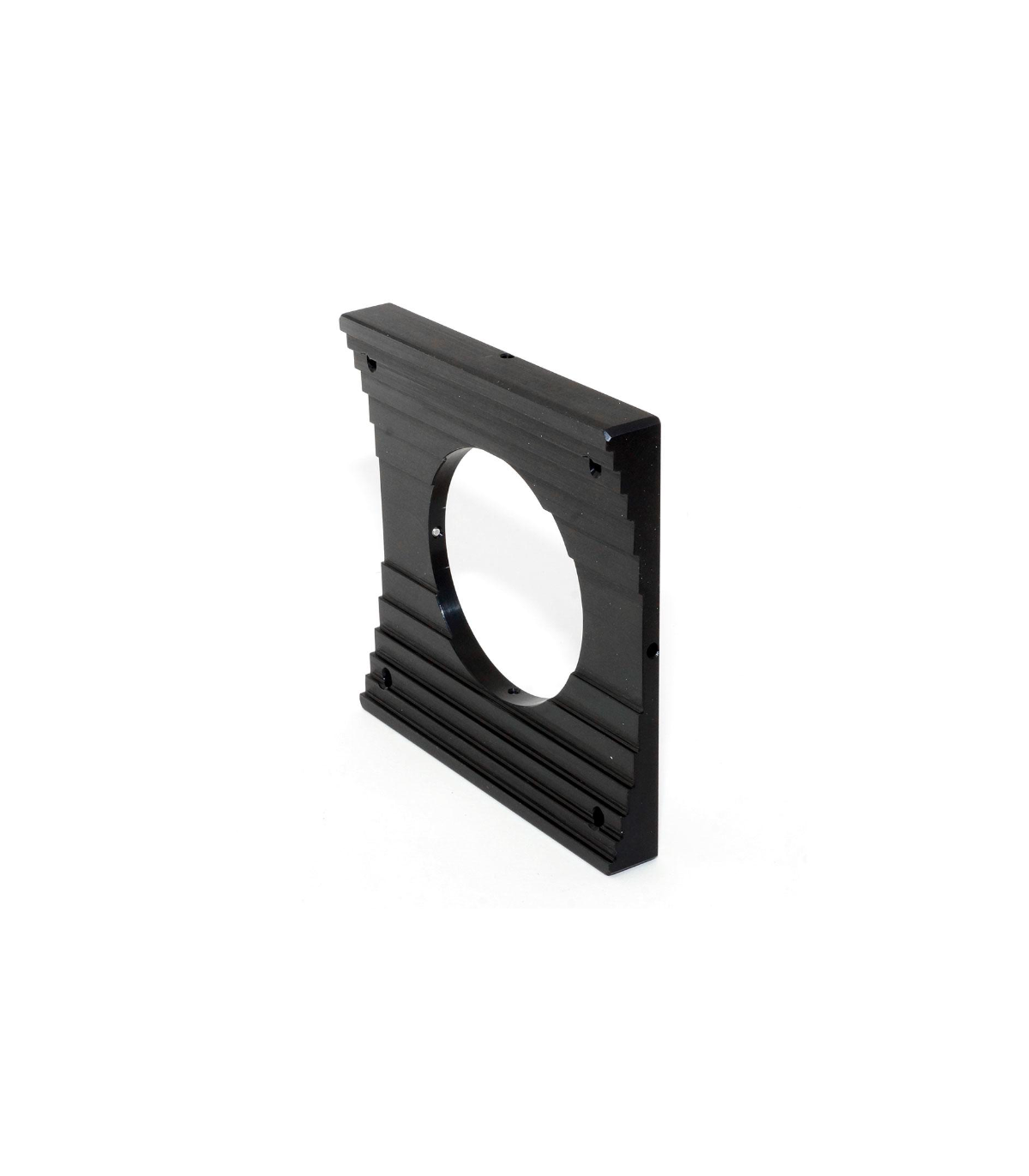

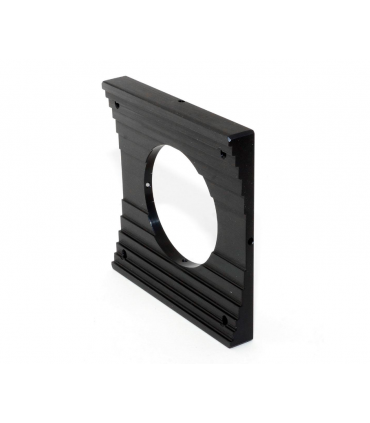

♦ La superficie de contacto se adapta de forma óptima a la superficie del tubo gracias a su diseño escalonado, no es posible que se vuelque
♦ La base es adecuada para tubos telescópicos con un diámetro de 190 mm, por ejemplo, muchos telescopios newtonianos de 6"
♦ El enfocador está sujeto con cuatro tornillos sin cabeza.
♦ Distancia entre los orificios para la fijación del telescopio: 69,9 mm a lo largo y 69,9 mm a lo largo del tubo
149,90 €
(impuestos inc.)
Referencia:
BA20CL-190mm
Newtonian base for Starlight FTF20.. Focusers
The base fits Newtonian telescopes with 190mm diameter tubes. Due to a special shape of the contact surface, the base always adapts optimally to the curvature of the tube. Tilt is not possible. The large contact surface also ensures stability and prevents the tube from deforming.
The base is fixed to the tube with M4 screws (not included).
The base has four screws for precise adjustment.
Especificaciones:
| Newtonian Base: | suitable for FTF20.. Feather Touch focusers |
| Curvature: | Suitable for tubes with 190 mm (7.48") diameter |
| Distance of the holes for attaching to the tube: | 69.9 mm x 69.9 mm (2.75" x 2.75") |
| Diameter of the central bore: | 69.9 mm (2.75") |
| Outer dimensions: | 86 mm x 86 mm |
| Clamping of the focusers: | at the dovetail ring of the the focuser with four headless screws (supplied) |
