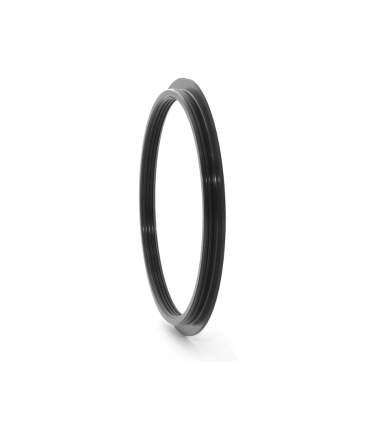

TS M68 system adapter from M68 to M63 - Riccardi connection adapter
The adapter allows to connect the Riccardi Reducer with external thread M63x1 to focusers with internal thread M68x1
♦ Telescopic side connection thread: External thread M68x1 (male)
♦ Eyepiece side connection thread: Internal thread M63x1 (female)
♦ Optically effective total length: only 1 mm
♦ The adapter reduces a ZEISS level internal thread M68x1 to an internal thread M63x1
Adapter system TS M68 - Connection adapter for accessories with male thread M63 on focusers with female thread M68x1
With this adapter you can, for example, connect the Riccardi Reducer with external thread M63x1 (male) on the telescope side to all focusers and adapters with internal thread M68x1.
Only 1 mm of optical path is required because the M63 external thread is countersunk on the connection adapter or on the Riccardi Reducer.
| Connector at telescope side: | M68x1 thread (male) |
| Connector at eyepiece side: | M63x1 thread (female) |
| Optical length: | only 1 mm |
| Length of the male M63x1 thread: | 4 mm |
What goes in the box:
♦ TS Optics Adapter
