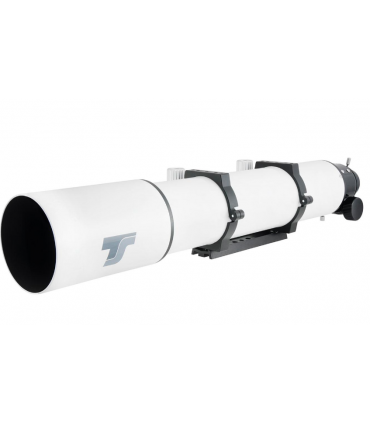

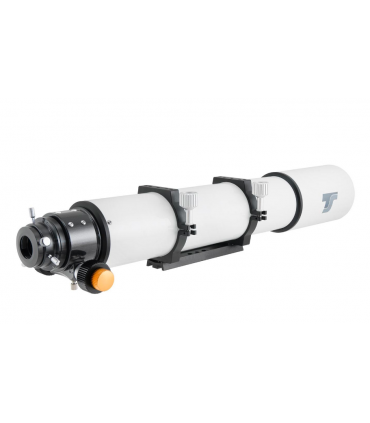

TS-Optics ED APO 102mm f/7 Refractor with 2.5" R&P Focuser

TS Premium 102mm f7 ED Apo Refractor Telescope with Enhanced Imaging and 2.5" Rack and Pinion Focuser for Astrophotography and Observation

♦ The TS 102mm ED refractor with a focal length of 714mm is a recommended telescope for astrophotography and visual observation.

♦ Premium 102mm f/7.0 ED 2 element lens with enhanced color correction and wide aperture - Glass from Ohara (Japan)

♦ Excellent mechanical workmanship with CNC tube, CNC tube rings and temperature compensated adjustable lens mount

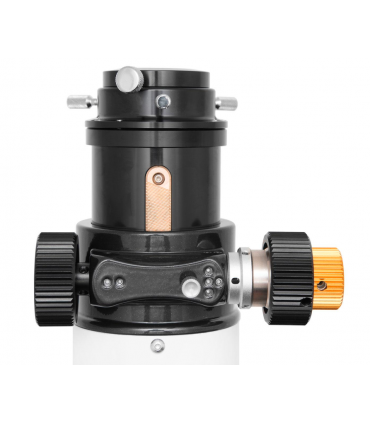

♦ 2.5" RPA rack and pinion focuser with micro reduction - one of the best focusers in the TS range for high payload

♦ 2" receptacle, internal thread M68x1 and M63x1 available for adaptations

♦ Very good astrophotography correctors and image field reducers available as an option

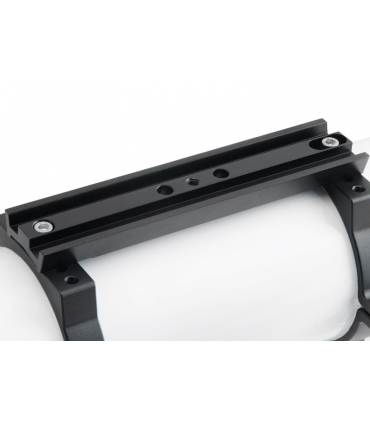

♦ Dovetail bar - GP/EQ5 level included

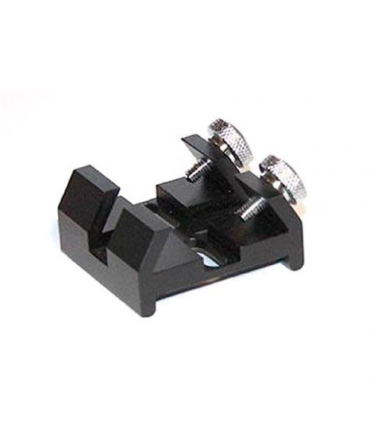

♦ The finder's shoe is mounted on the focuser

€660.33
receive it in usually 7 to 9 working days
Reference:
TSED102F7
Description

TS-Optics 102mm f/7 ED-APO refractor for astrophotography and observation

Teleskop-Service's 102mm f/7 Extra-Low Dispersion ED Refractor is an easily transportable "complete telescope" for observing and astrophotography. Well-corrected optics offer a nearly colorless image thanks to the moderate aperture ratio and built-in ED glass. Use the APO refractor for astrophotography or impressive observations. The good optics, the "photo-friendly" 2.5" focuser and the good workmanship guarantee joy and success and wonderful experiences under the starry sky.

The advantages of the TS 102mm f7 ED refractor:

♦ very well corrected ED optics - adjustable

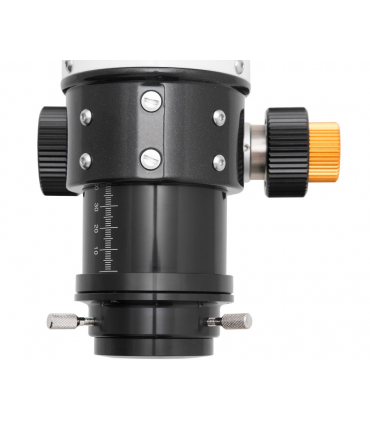

♦ Stable and precise 2.5" focuser - ball bearing drive tube - rack and pinion adjustment

♦ 2" bushing reduced to 1.25" with compression ring and photo additional thread M63x1 and M68x1 for threaded connections

♦ Robust tube construction with fixed dew cap and CNC tube rings guaranteeing the best mechanical stability

The Duplex ED lens:

The handcrafted lens is in an adjustable, temperature compensated mount. It is a dual lens with an ED element for good chromatic aberration correction. We use the best possible manufacturer's multi-coating on every glass-to-air surface for optimal contrast.

The TS 102mm f/7 ED refractor is ideal for astrophotography:

The precise focuser and bright optics make the 102mm ED Refractor a good telescope for astrophotography. To correct the field of the image, we recommend the following correctors, which are also linked in the accessories area.

TSFLAT2 - 2" field correction without changing the focal length... excellent illumination - also suitable for larger sensors - a field of approx. 40 mm diameter is 100% illuminated. Working distance from the corrector's M48 thread is 111 mm With With the TSFLAT2A adapter kit you get a tailor-made adaptation for your camera.

TSRED102 - 2" field correction and focal length reduction ... focal length is reduced from 714mm to 571mm. Light intensity is improved from F/7 to F/5.8. Exposure times are reduced accordingly.We recommend the reducer for sensors up to 30mm in diameter, such as those in APS-C format.The working distance from the T2 thread of the corrector is 55mm.

Especificaciones:

Telescope type: Refactor
Aperture: 96 mm
Focal length: 575 mm
Focal ratio: f/6
Objective: Air-spaced 2-element ED objective - FDC1 special glass
Coating: Full multicoating on each glass air surface
Transport length: approx. 460 mm
Focuser: Dual-speed 2.5" RAP focuser
Working distance: 120 mm from the 2" receptacle
Eyepiece side connections: 1.25", 2" and M63x1 female thread
Tube material: Aluminum
Diameter of tube: 102 mm
Diameter of dew shield: 122.4 mm
Tube weight: 3 kg
