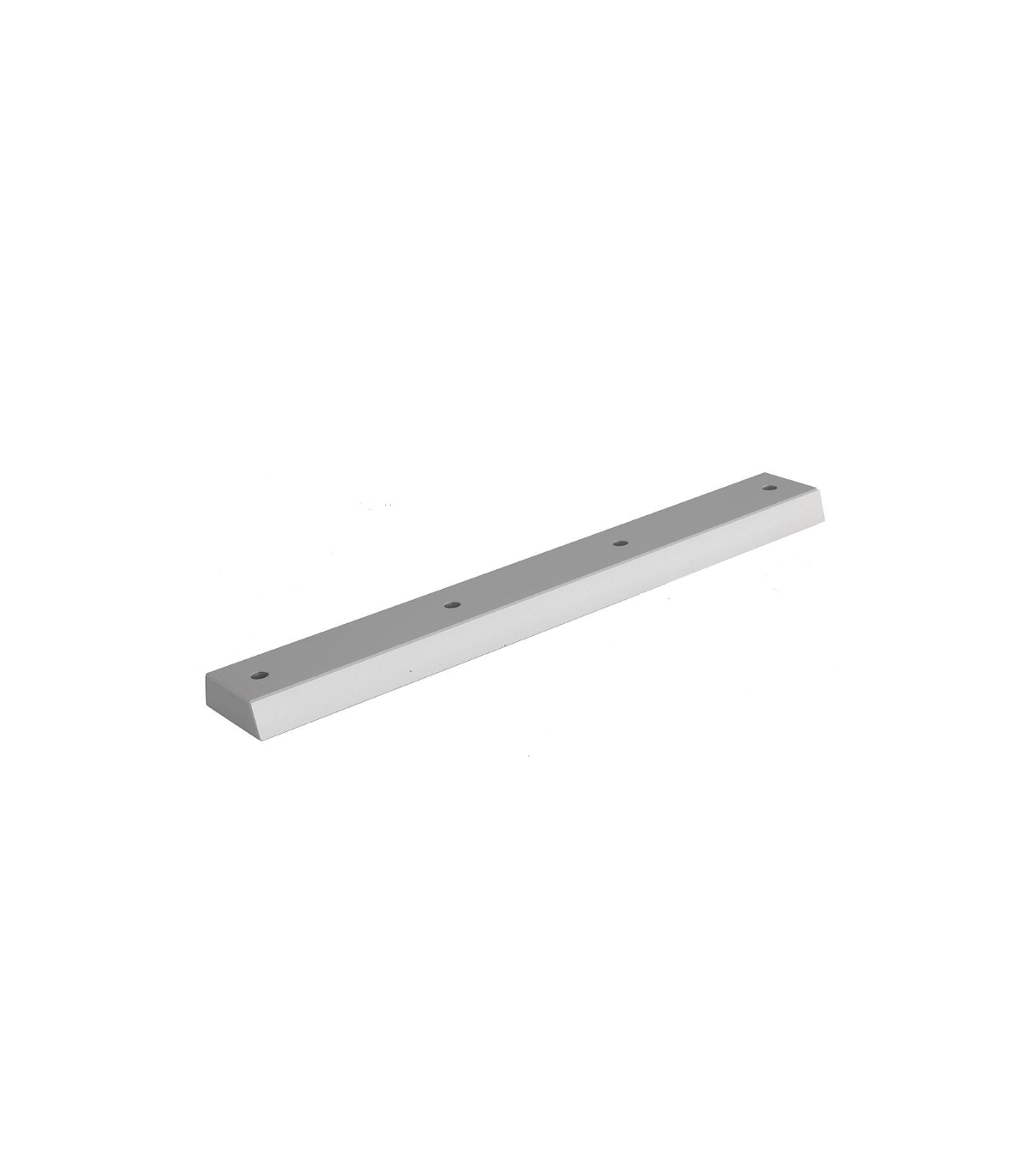

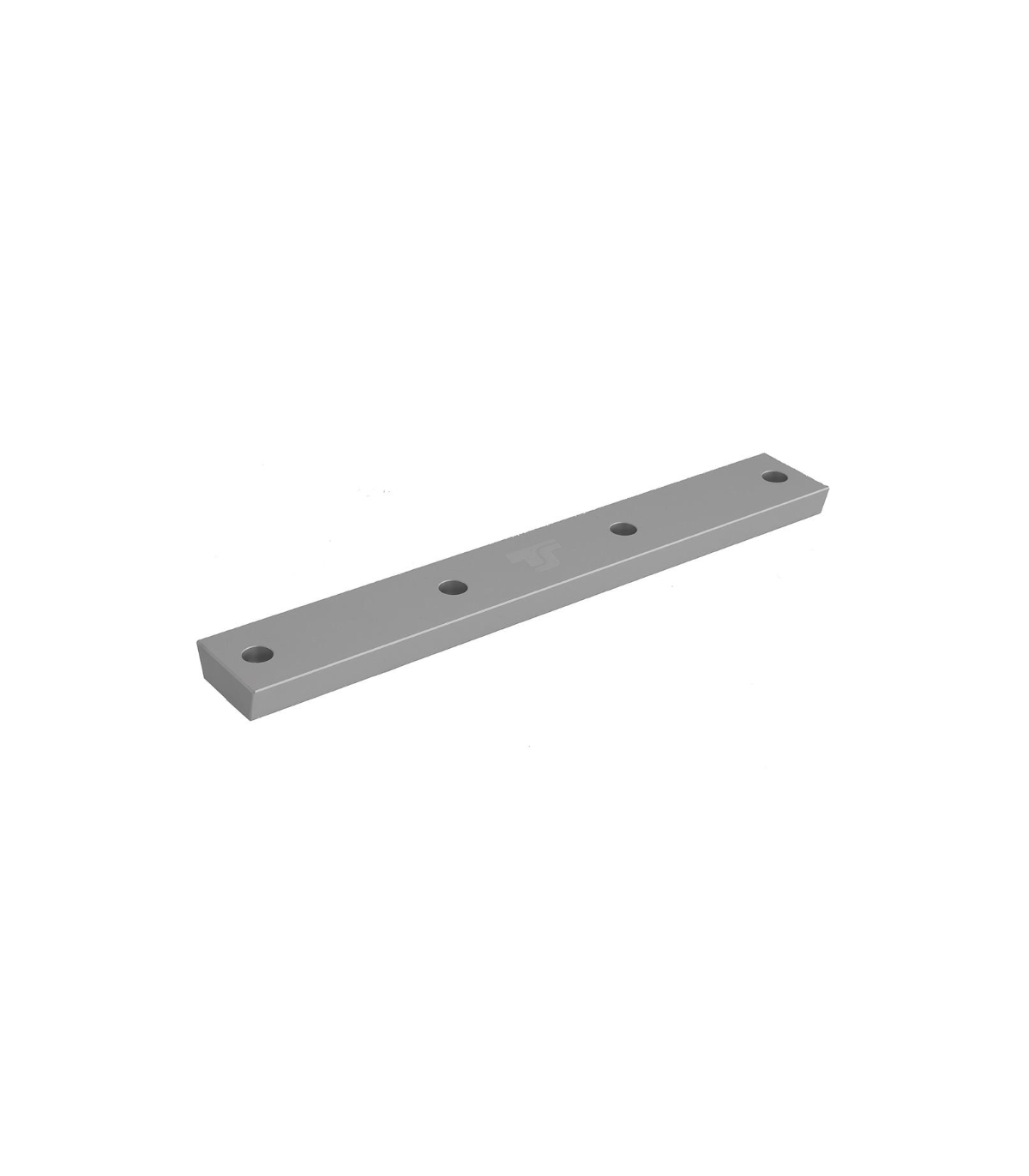

Stable dovetail bar for attaching telescopes with tube rings to mounts like the Skywatcher EQ5.
♦ Four holes for 1/4" and M6 socket head screws.
♦ The two outer holes are 255 mm apart
♦ Dovetail Bar Length: 281mm
♦ Ideal for hexagon socket screws with a thread length of 12.5mm to 15mm
♦ Dovetail bar thickness: 15mm - solid

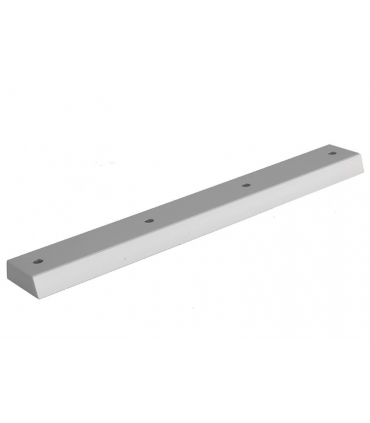

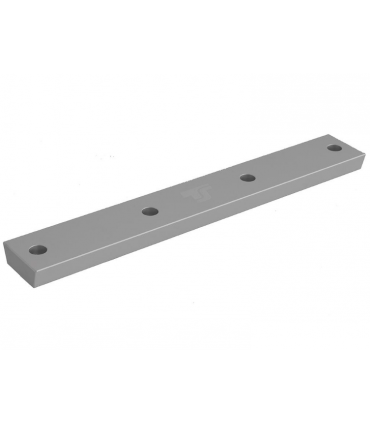

TS Dovetail Bar Level EQ5
The PS28 dovetail bar allows for the adaptation of spotting scopes and spotting scopes to mounts with GP style quick couplers as well as suitable dovetail clamps.
| Level: | Vixen GP-EQ5-Level |
| Length: | 281 mm |
| Height: | 15 mm |
| Material: | Aluminum |
