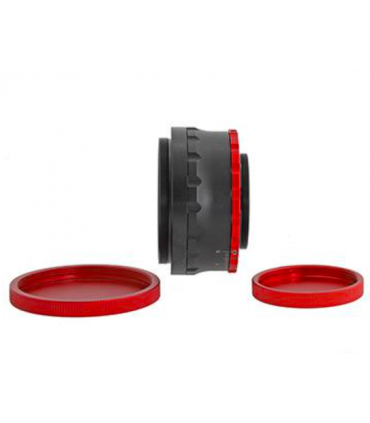

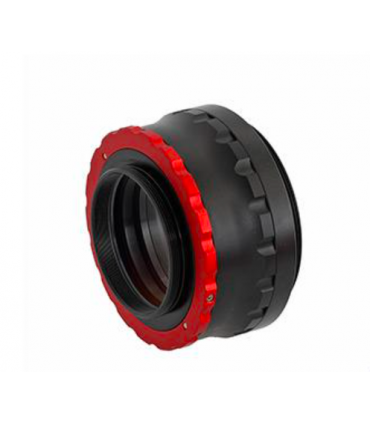

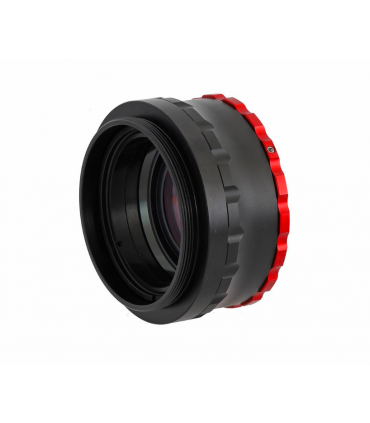

TS-Optics 0.92 Reducer for 85mm f/6 APO and ED Refractor

TS 0.92x Field Corrector for 85mm f/6 APO and ED Refractors

The corrector has been optimized for these telescopes and works very well. The field is level so up to full frame cameras can be used. At the same time, the axis correction is maintained. Sharpness and resolution are not affected, so very high resolution cameras can also be used.

Adaptation to the telescope:

The corrector has an external thread M63x1 on the telescope side. This allows you to screw the corrector directly onto the telescope's focuser. This ensures an optimal fit without tilting. If you want to rotate the camera, you can set a rotation system between the focuser and corrector. We recommend the short swivel adapter #TSROTM63K, which is also a quick coupler.

Connecting the camera to the corrector:

An external thread M48x0.75 is available on the camera side. The working distance is 55mm from the thread, so the external thread does not count as it disappears into the connection adapter. Most system cameras, astronomical cameras and SLR cameras offer adapters with which you can achieve exactly this distance.

Specifications:
