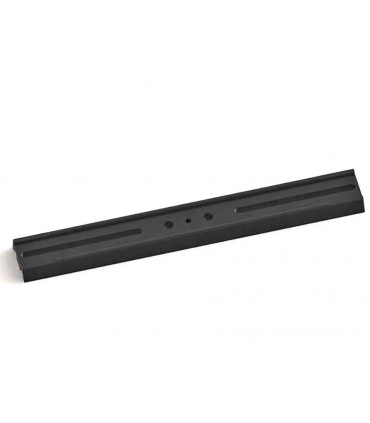

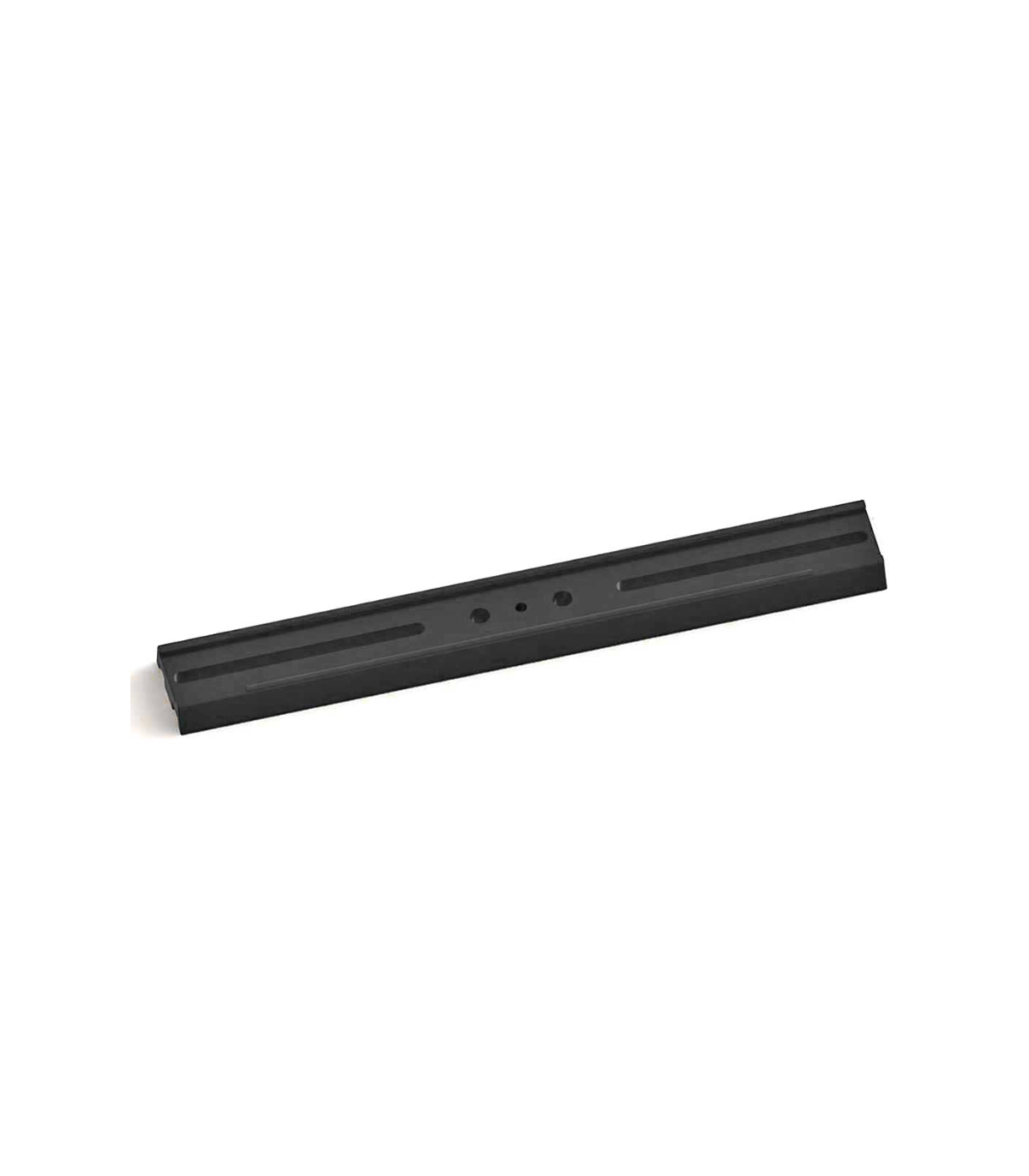

TS-Optics Vixen-EQ5 Level Dovetail Rod - L-300mm - Profile Construction
Light and flexible dovetail bar with slotted holes, countersunk hole and 1/4" photo thread
♦ Suitable for adapting telescopes and photographic lenses to dovetail mounts and clamps with Vixen and EQ5 style quick couplers
♦ Also suitable for photo tripods, tilt heads and ball heads via the 1/4" photo thread in the middle
♦ Two slotted holes, each 100mm long, suitable for 1/4" and M6 Allen screws
♦ Dovetail Bar Length: 300mm
♦ Dovetail bar thickness: 14mm (profile design)
€42.00
(VAT incl.)
Reference:
PS30

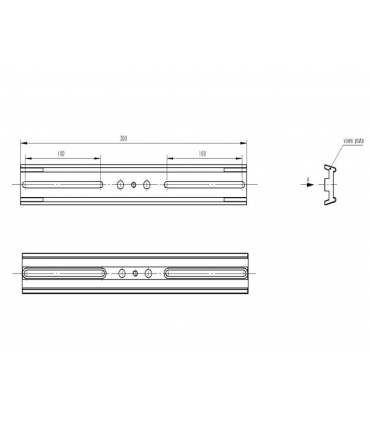

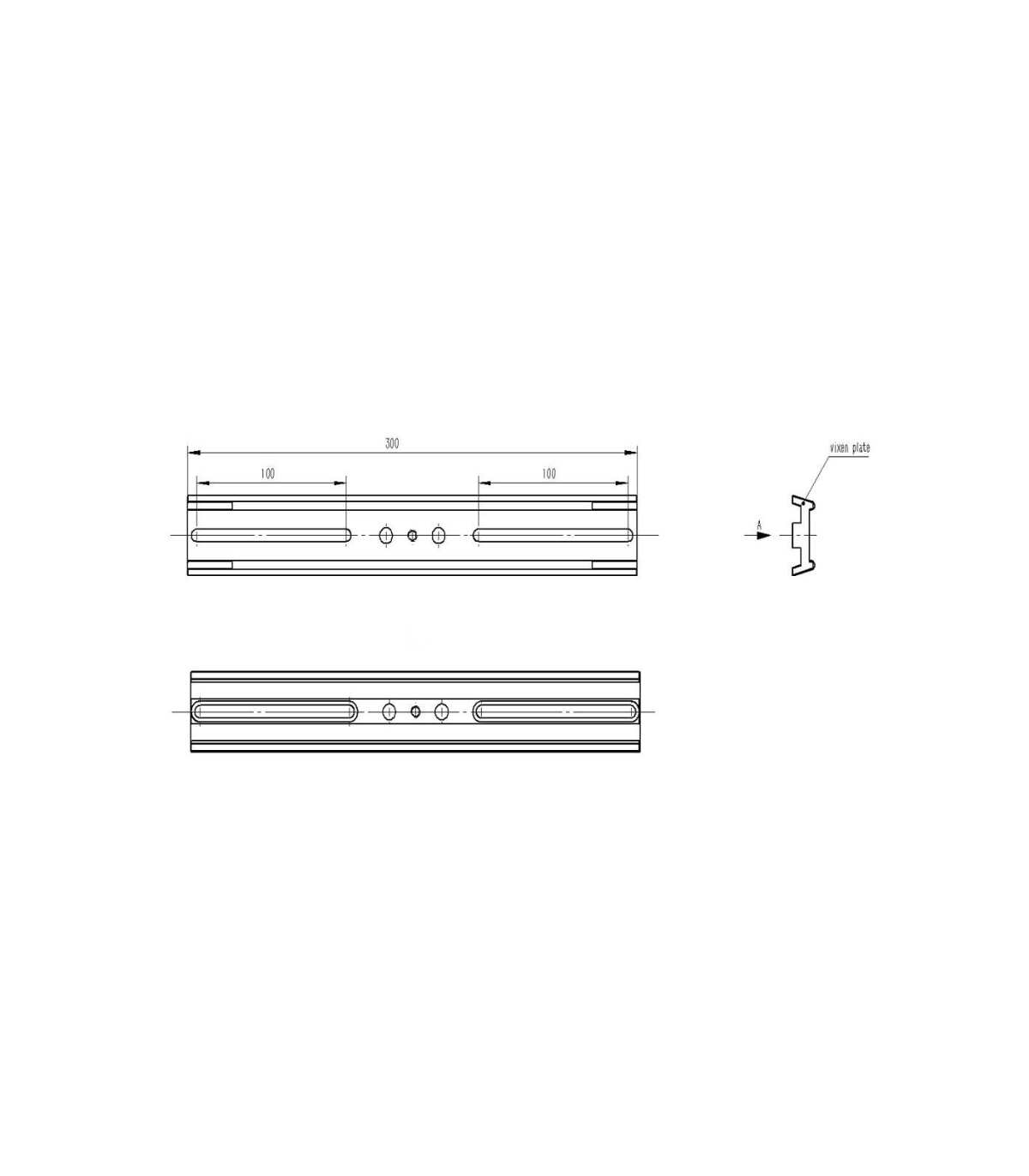

Dovetail bar photo TS EQ5 level with slot and thread photo
The PS30 dovetail bar allows for the adaptation of spotting scopes and spotting scopes to mounts with GP style quick couplers as well as suitable dovetail clamps. The profile construction reduces weight and also vibrations. The special shape of the surface allows the connection of flat surfaces (tube clamps and top plates), but also round surfaces (telescopic tubes).
The prismatic rail is particularly flexible:
The rail has two slotted holes. This allows the distance between the pipe clamps to be varied. The holes are suitable for M6 and 1/4" screws. The screw heads are countersunk into the rail. The thread length of hexagon socket screws must be at least 13mm.
The dovetail bar also fits photographic tripods and panoramic heads:
The rail has a 1/4" female photo thread right in the middle. This means the rail will fit on photo tripods and tilt heads. You can also use it to attach your telescope or spotting scope to a photo tripod. The example is heavy on the upper part. .
Especificaciones:
| Level: | Vixen GP-EQ5 Level |
| Length: | 300 mm |
| Thickness: | 14 mm - profile construction |
| Length of the oblong holes: | 100 mm |
| Internal thread: | 1/4" thread in the center |
| Material: | aluminium |
