TS-Optics Vixen-EQ5 Level Dovetail Bar - L- 255mm - Profile Construction

Light and flexible dovetail bar with slot, countersunk holes and M6 thread

♦ Suitable for adapting telescopes and photographic lenses to GP-EQ5 style quick coupler mounts and dovetail clamps

♦ Also suitable for photo tripods, tilt heads and ball heads via optional prism clamps

♦ One slotted hole and two countersunk holes for M6 and 1/4" UNC Allen screws

♦ Two internal M6 threads at the ends of the rail

♦ Dovetail Bar Length: 255mm

♦ Dovetail bar thickness: 14mm (profile design)

Entrega entre 7 y 9 días laborables

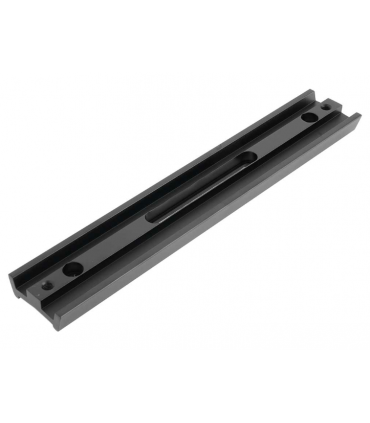

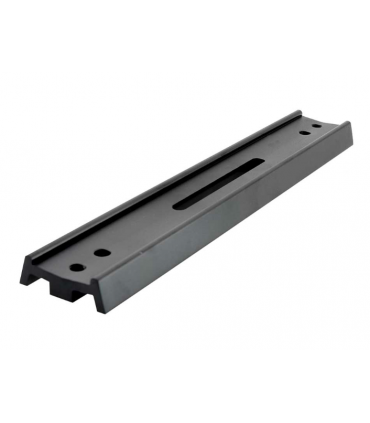

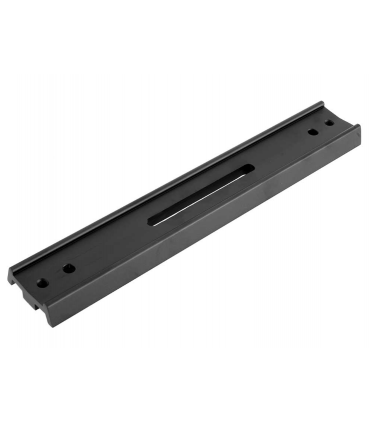

Dovetail bar photo TS EQ5 level with slot and thread photo

This dovetail bar allows for the adaptation of telescopes and spotting scopes to mounts with GP style quick couplers as well as suitable dovetail clamps. The profile construction reduces weight and also vibrations. The special shape of the surface allows the connection of flat surfaces (tube clamps and top plates), but also round surfaces (telescopic tubes).

The prismatic rail is particularly flexible:

The rail is equipped with a slot, two countersunk holes and two internal threads (M6).

♦ Slotted hole, suitable for M6 and 1/4" socket head screws, in the center of the rail, length 85 mm, suitable for screws with a thread length of 12-14 mm.

♦ Two countersunk holes, suitable for M6 and 1/4" socket head screws, 200mm apart - ideal for fixing pipe clamps - suitable for screws with a thread length of 12-14mm.

♦ Two internal M6 threads on the outer edge of the prism rail spaced 234mm apart for additional adaptations or construction of a lightweight dual fixture with two prism clamps.


System: Vixen GP / EQ5 style
Length: 255 mm
Thickness: 14 mm - profile construction
Weight: 300 g
Material: Aluminum
