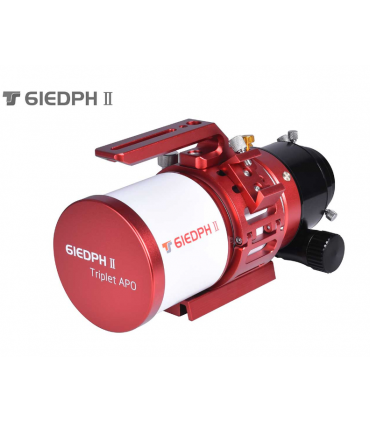

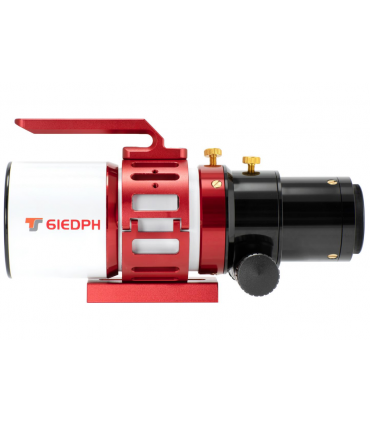

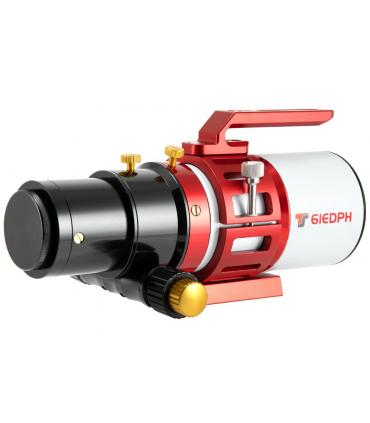

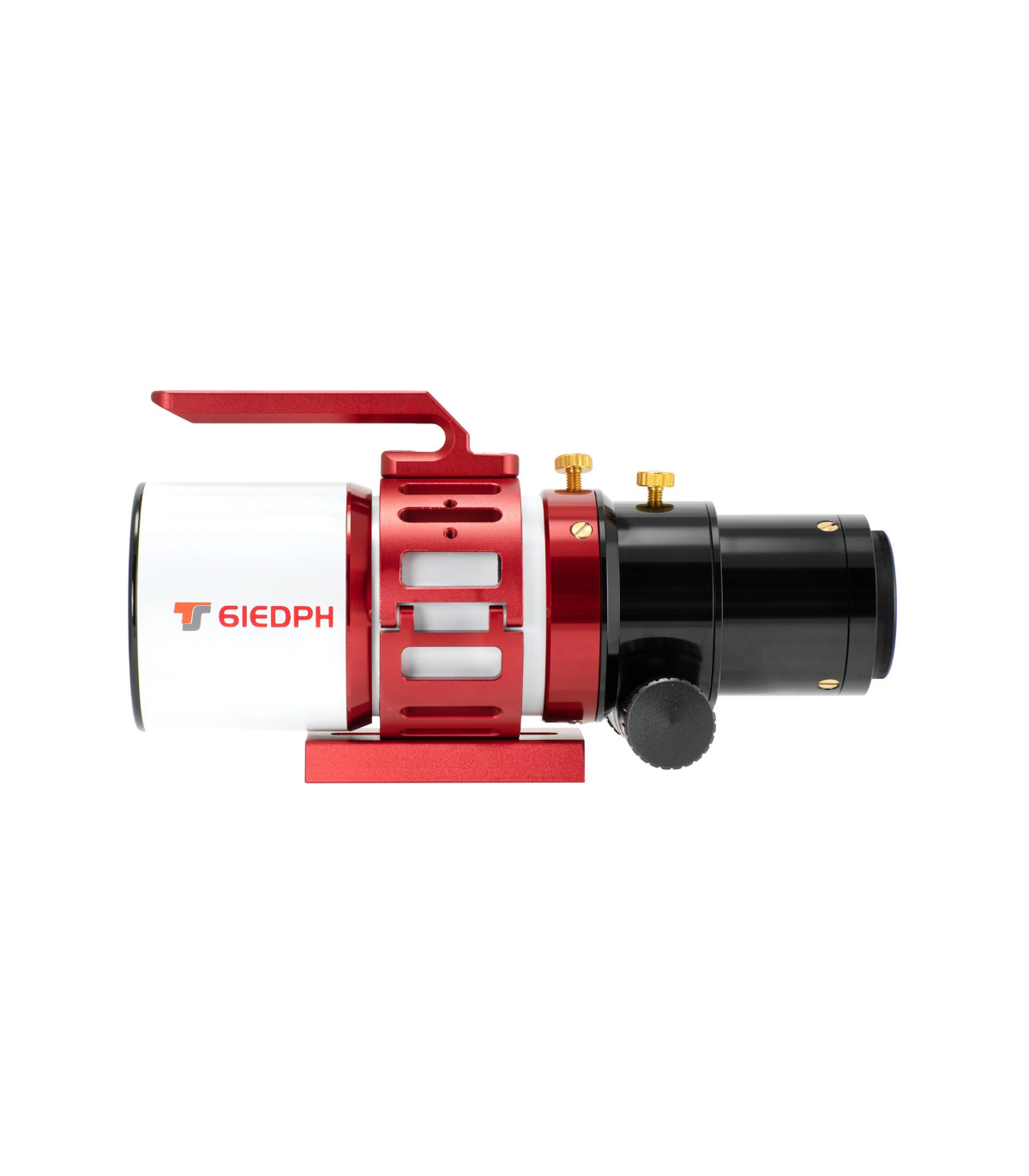

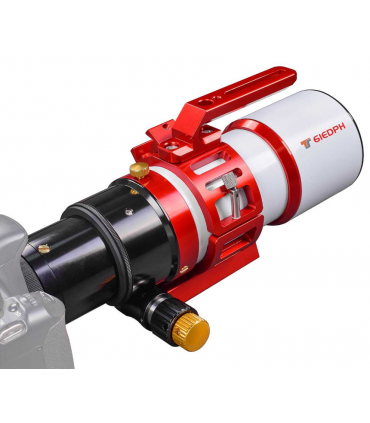

TS-Optics 61EDPH II - 6 Element Flat Field Apo 61mm F/4.5 Aperture
The 6-element Apo 61EDPH II with 61mm aperture and 274mm focal length was developed by Teleskop-Service for astrophotography.
♦ Opening: 61mm
♦ Focal Length: 274mm
♦ Fast f/4.5 aperture ratio for short exposure times
♦ 44mm diameter corrected illuminated image field - usable up to full frame
♦ 6-element system with triple lens and 3-element corrector
♦ Multi-coated triple APO pure color lens with two ED lenses: color correction comparable to an FPL53 triplet

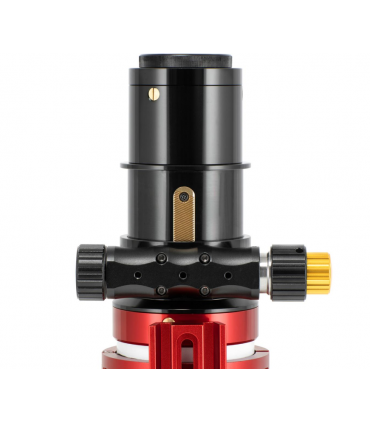

♦ 2.5" RAP rack and pinion focuser with a 360° rotation option and micro reduction that also accommodates heavy cameras
♦ CNC clamp with universal dovetail bar with connection for photo tripod and carrying handle is included in the scope of supply
♦ The finder shoe for finderscopes and mini sights is integrated into the CNC clamp.
♦ Retractable spray shield
♦ Easy camera adaptation via M48 connection thread - working distance 55 mm
♦ 2" nebula filters can be retrofitted, are directly in front of the camera to prevent full frame shadows.
♦ The lens has an aperture ratio of f/5.5; together with the built-in corrector, you get an effective aperture ratio of f/4.5
€769.00
(VAT incl.)
Reference:
TS61EDPH

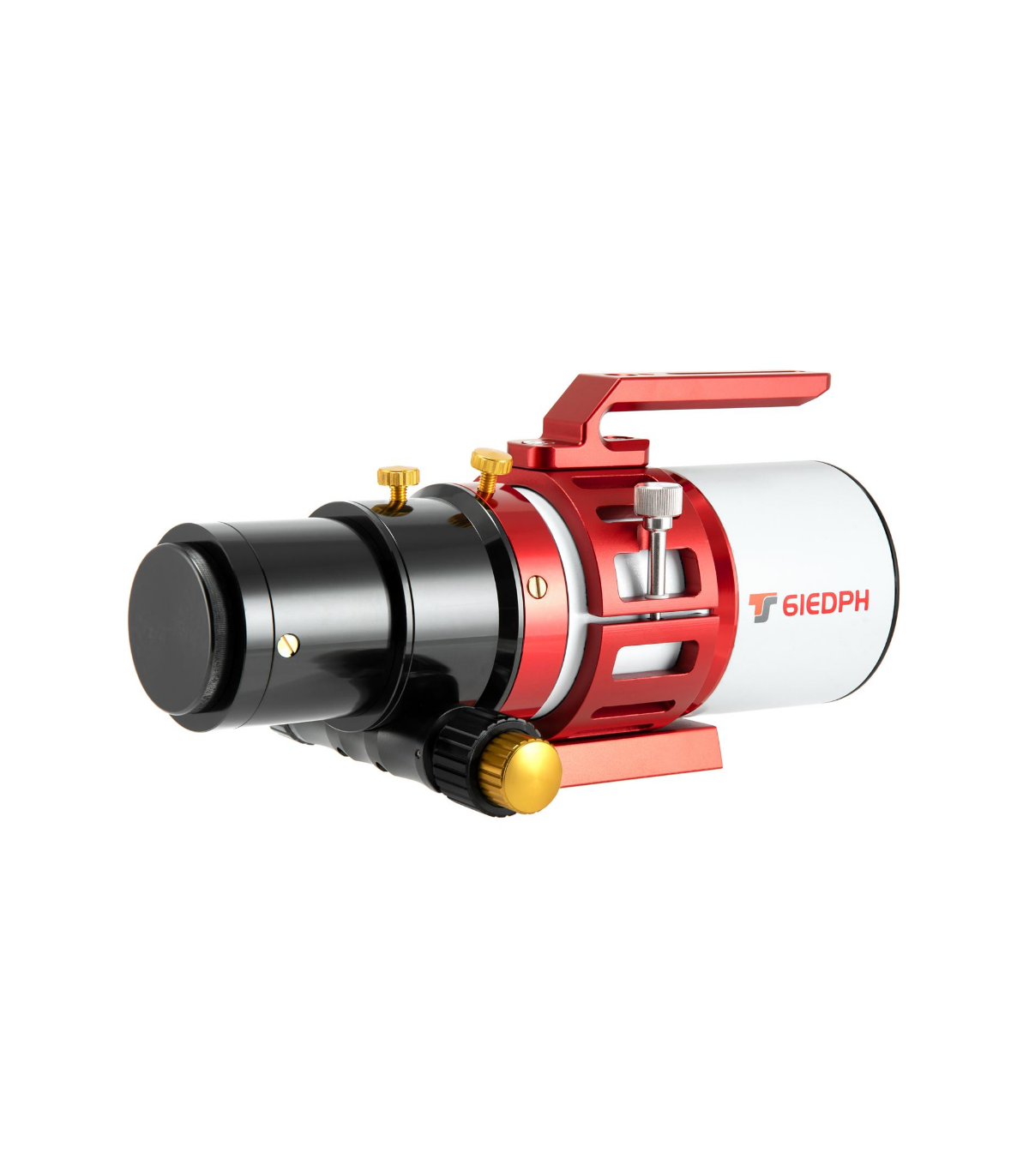

TS-Optics 61EDPH II 6 Element Flat Field Apochromat
The TS-Optics 61EDPH is aimed at astrophotographers and nature photographers. It impresses with its compact dimensions and high-quality triple lens. The 3-element corrector has been specially developed for this apo and creates a very well corrected field of view with a diameter of 44mm, ideal for full-frame cameras. The fast f/4.5 aperture ratio allows for short exposure times. The 61EDPH is a portable, fast travel apophoto for astrophotography.

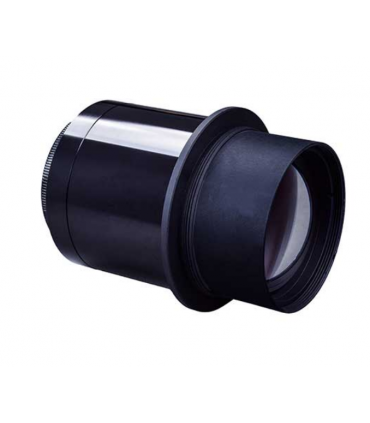

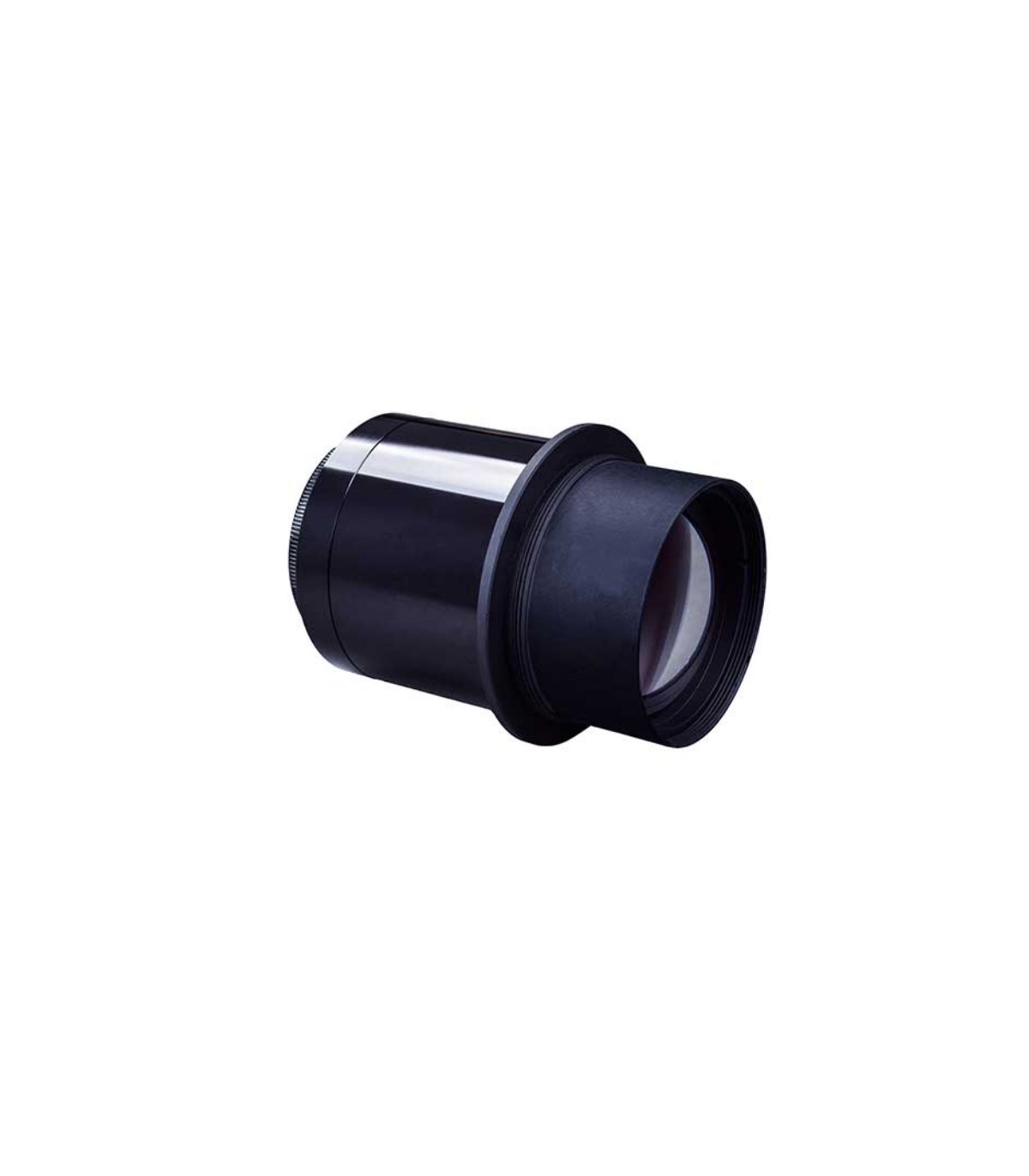

Important: The corrector can be attached to the focuser in two ways. With the correct one, the long part points towards the extension tube and the short part towards the camera.
Connecting cameras to the apo:

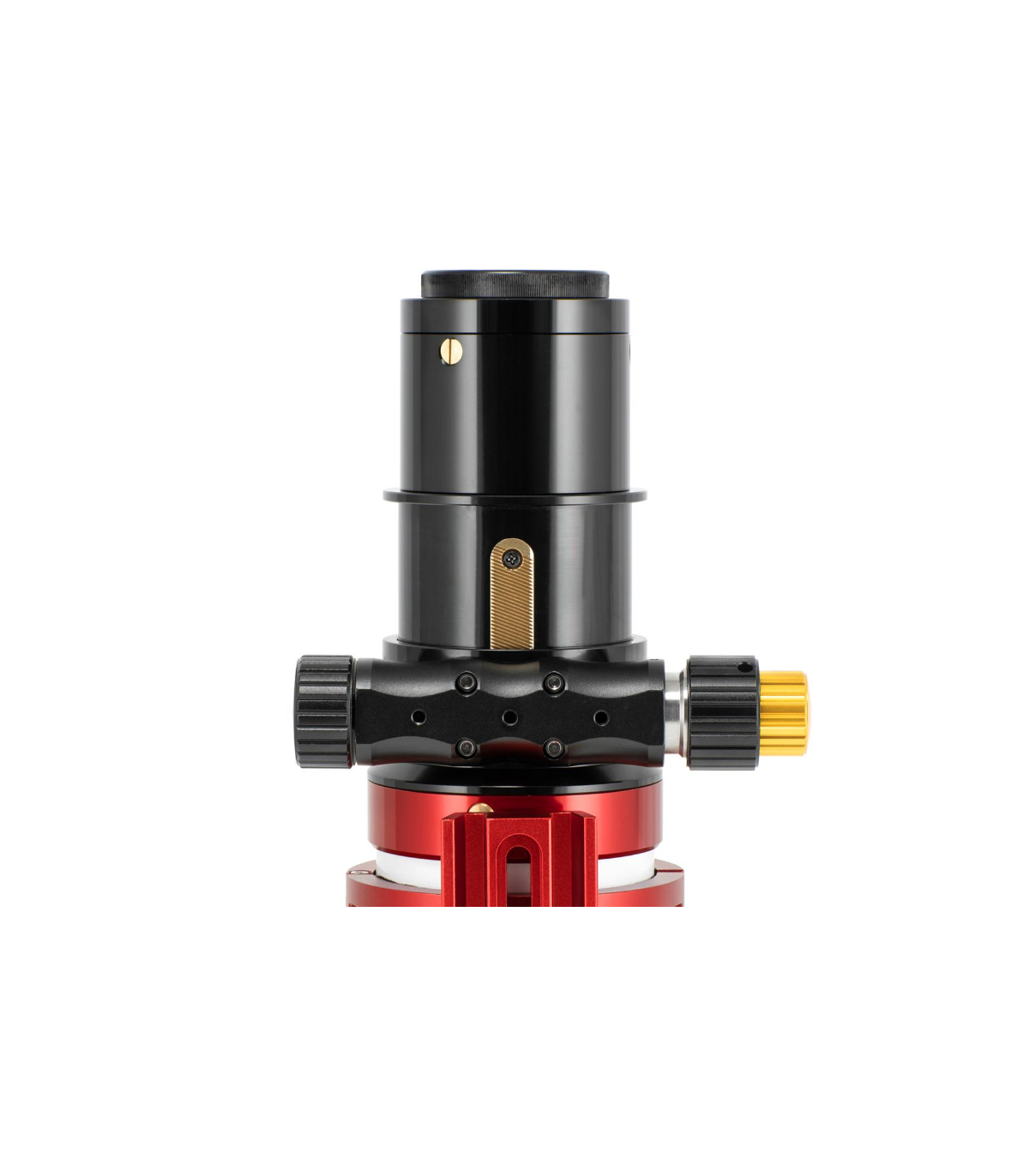

An M48x0.75 thread is available on the back of the stable 2.5" focuser. The working distance from this thread to the camera sensor is exactly 55mm. This is ideal for all astro cameras and DSLR cameras. / SLR Matching t-rings can be found in the accessories section.
The TS 61EDPH offers a connection for 2" nebula filters
Simply unscrew the corrector extension from the focuser and you will find the internal M48x0.75 thread on the camera side at the end of the extension. The 55mm working distance does not change. You can continue to use your adaptation, either with or without a filter.
Fixing the TS 61EDPH to supports

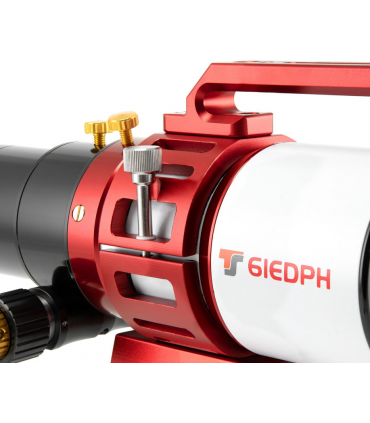

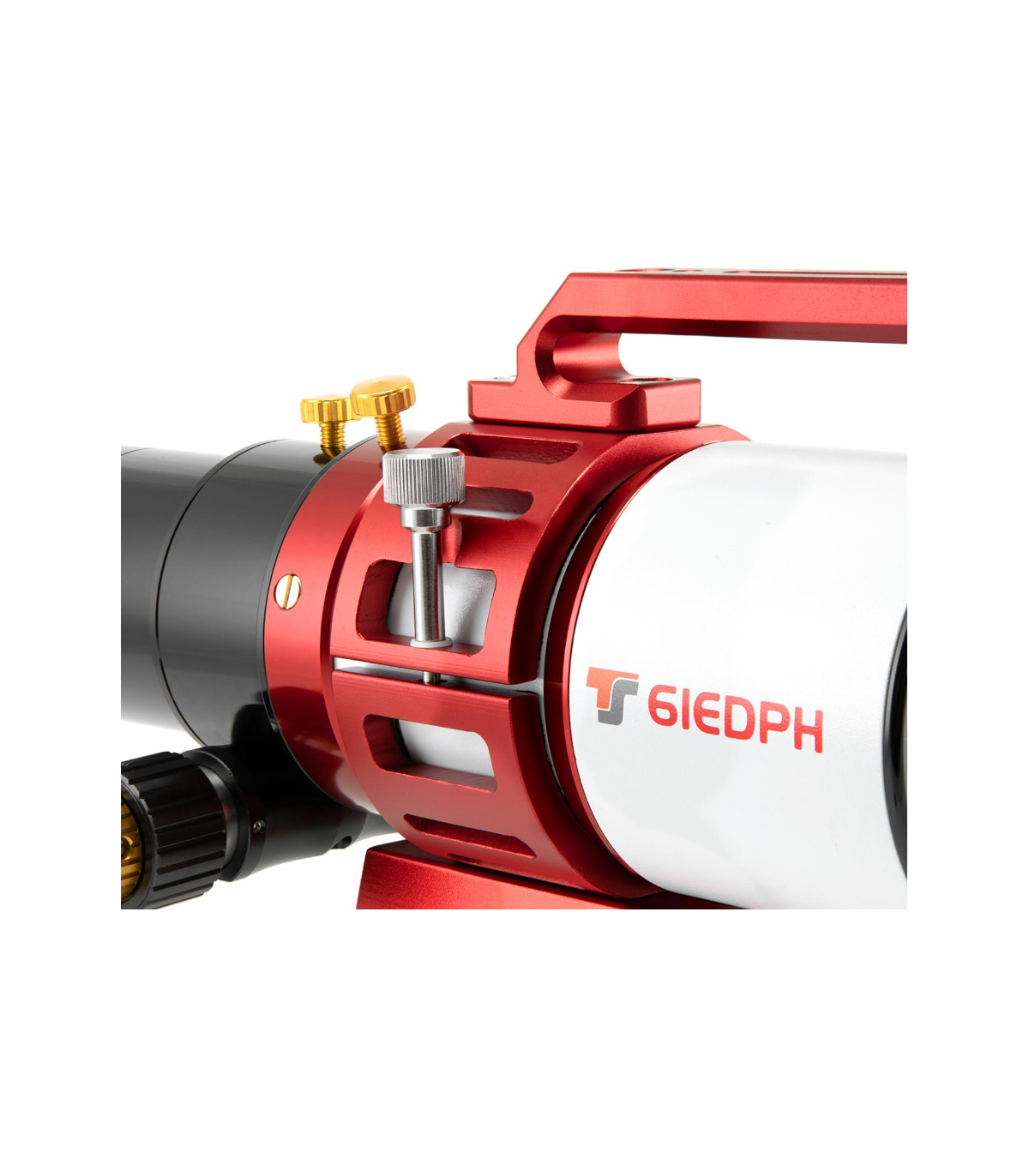

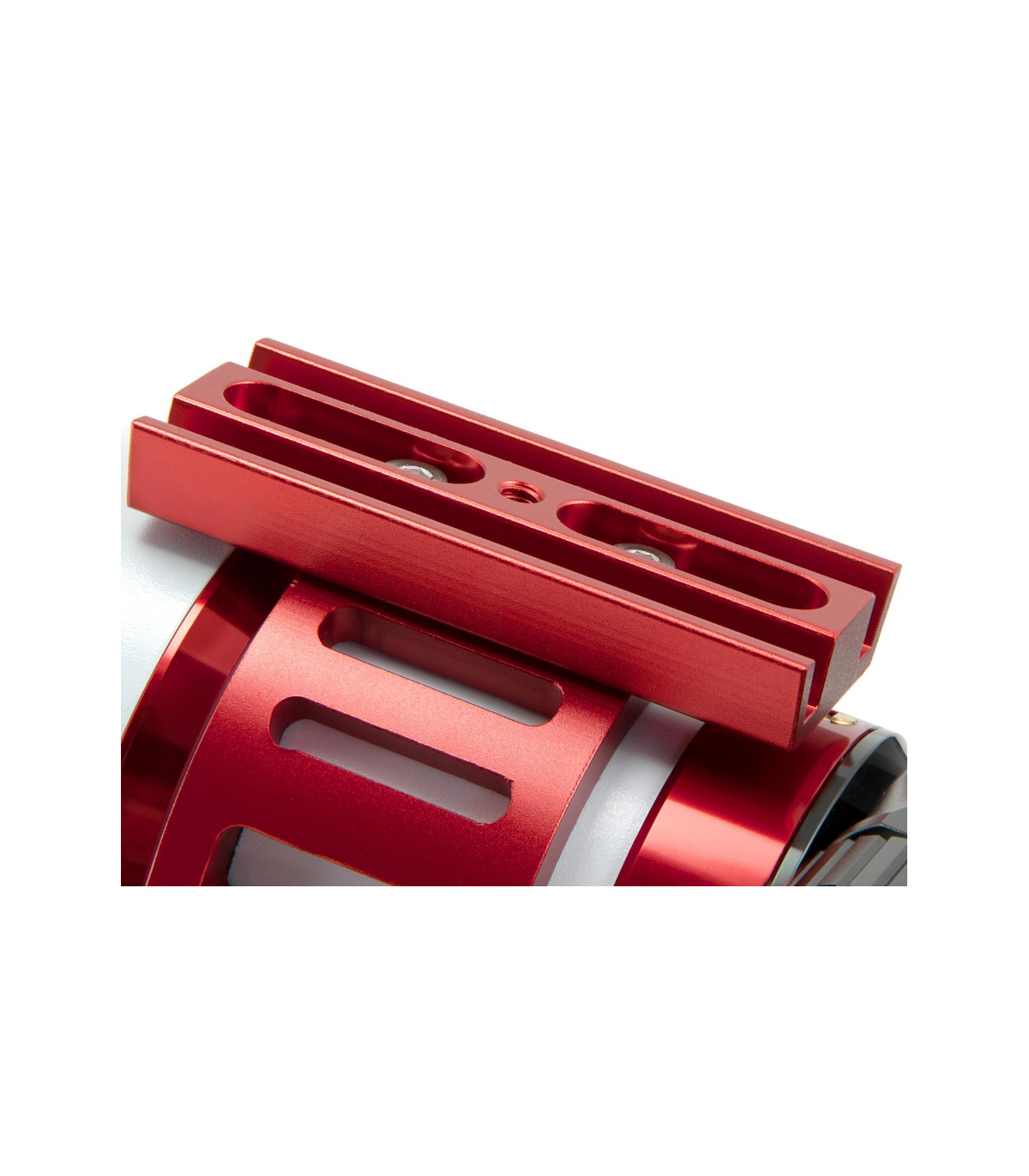

The CNC clamp has a GP and EQ5 style dovetail bar at the base. You can attach the telescope to suitable quick-disconnect mounts and travel mounts, such as the Skywatcher Star Adventurer. Matching dovetail clamps can be found in the accessories section. In addition, the rail also has a 1/4" photo tripod thread. Therefore, the Apo fits directly onto any photo tripod, such as a telephoto lens.

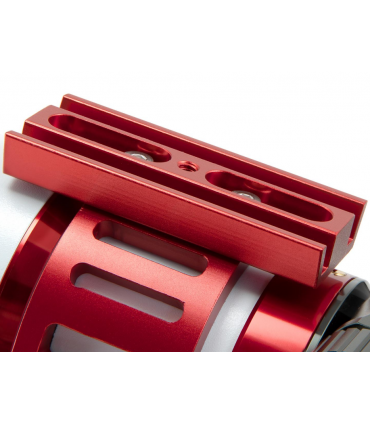

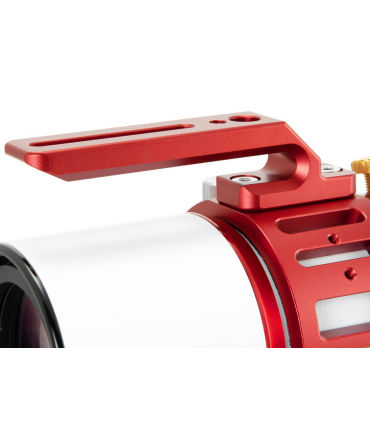

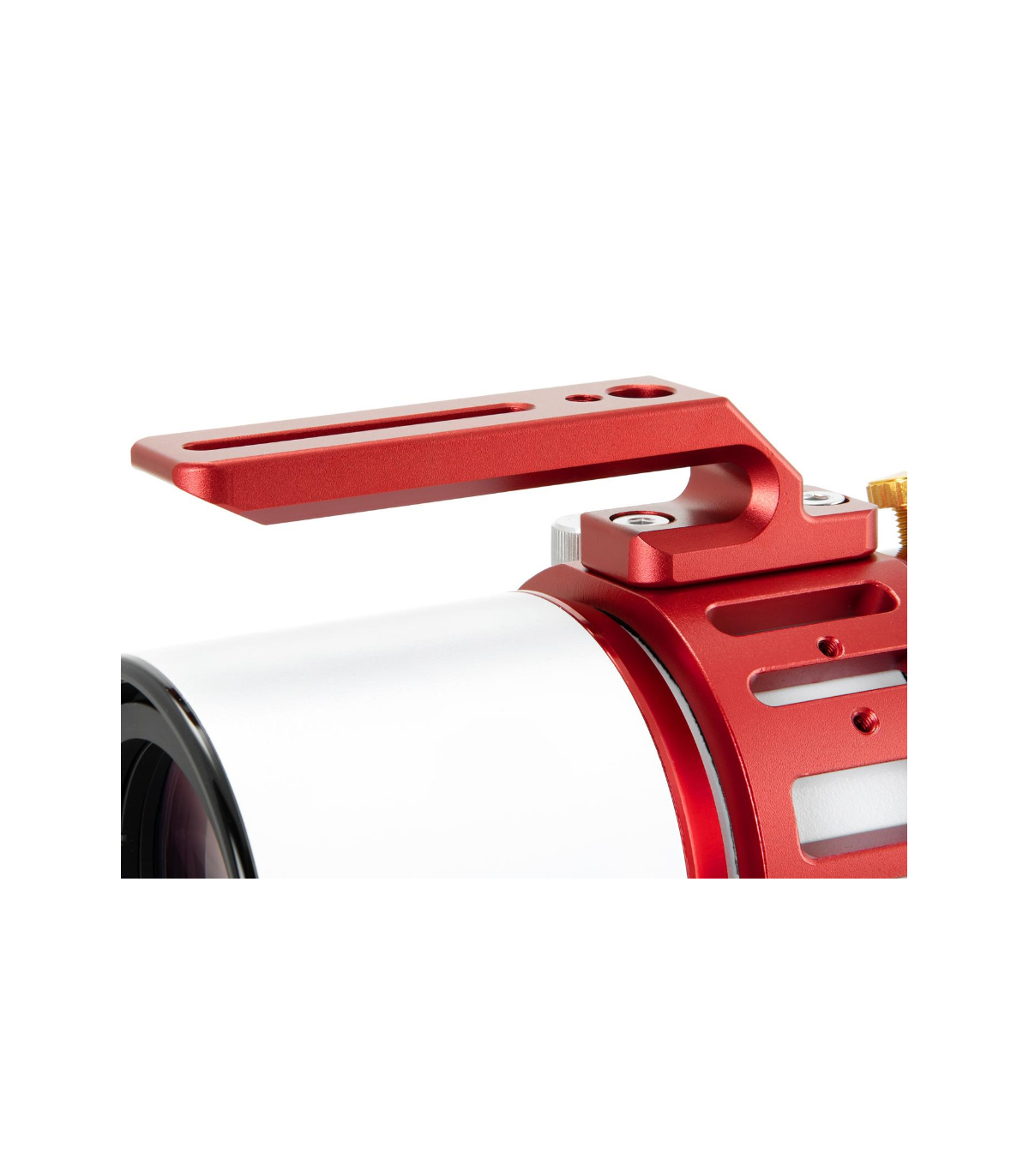

The carrying handle is a true multifunctional piece.
The handle not only makes it easy to mount on the photo tripod, but is also the basis for future adaptations. The handle has an elongated hole and a 1/4" photo tripod thread. You can attach a ball head to it, for example, and mount a second camera in parallel. Next to the grip handle is a search shoe for search scopes, Mini guide viewers or direction finders.
Observation by the TS61EDPH
Although apochromatic was developed for astrophotography, it also allows observation. Unscrew the photo corrector. You have available internal thread M63x1. Then screw on the 2" adapter, which is included in the scope of delivery. A 2" to 1.25" plug-in adapter is also available. The back focus is sufficient to use 1.25" star diagonals and eyepieces. and 2" as well. Nothing stands in the way of nature and stargazing.

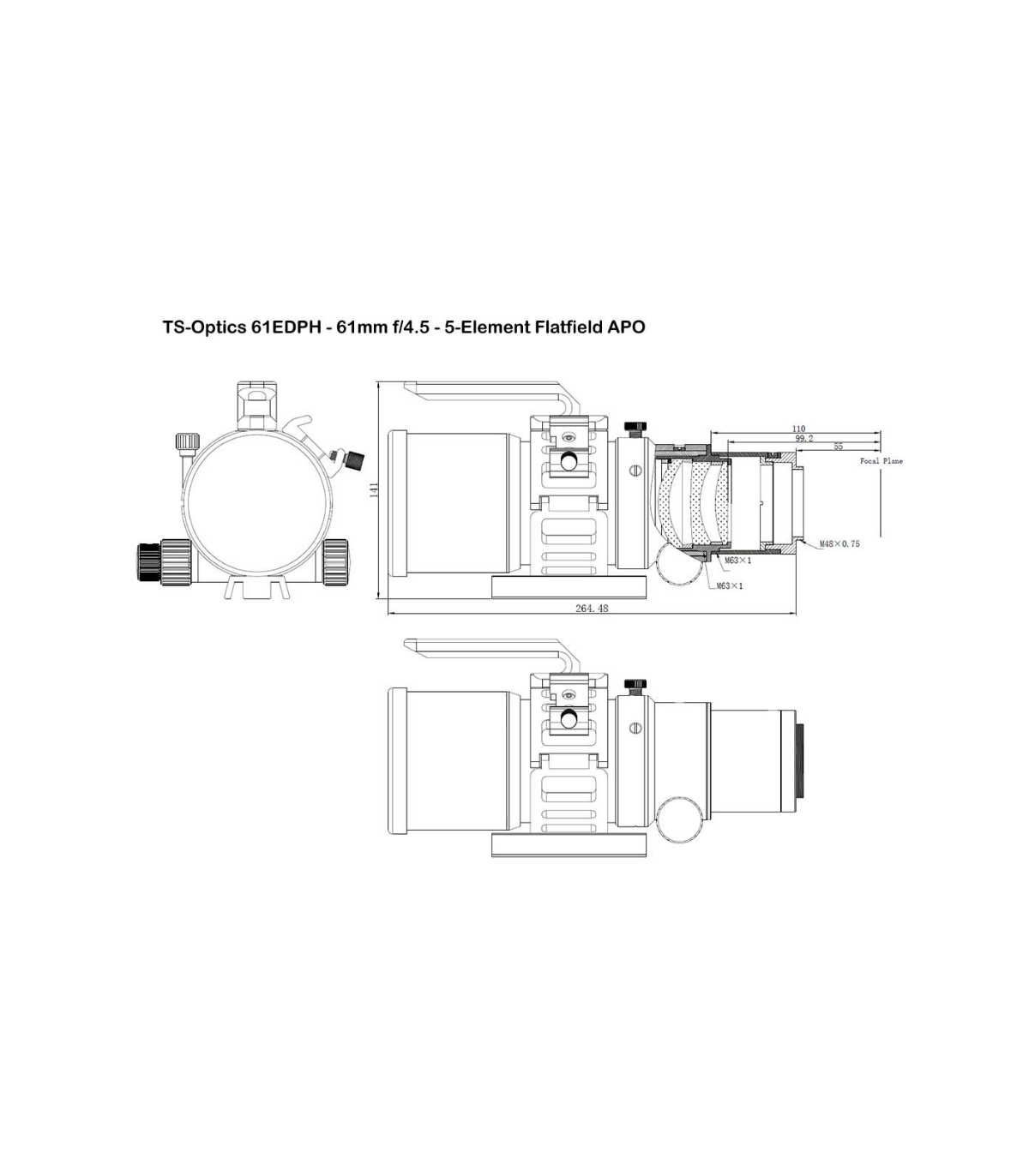

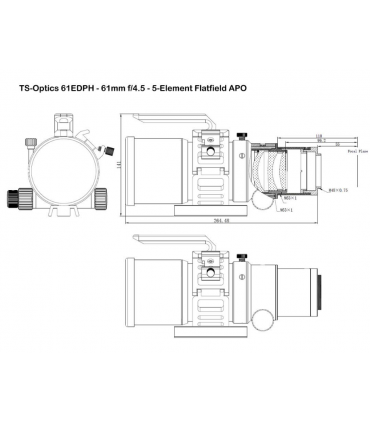

Especificaciones:
| Aperture: | 61 mm |
| Focal length: | 274 mm |
| Open ratio: | f/4.5 effective |
| Objective f/Ratio: | f/5.5 |
| Objective: | triplet objective with two ED elements, air-spaced |
| Corrector: | Reduction factor 0,81x |
| Illuminated and corrected image circle: | 44 mm |
| Optical system: | 3-element system in 2 groups |
| Objective lens: | 3-element ED lens |
| Connection at camera side: | M48x0,75 external thread (male) |
| Working distance: | 55 mm from the M48 thread |
| Auxiliary thread: | M63x1 internal thread on focuser - max. 115 mm back focus |
| Focuser: | 2.5" RAP rack and pinion focuser with micro speed reduction and 360° rotation |
| Length: | 264 mm with dew cap inserted |
| Height: | 141 mm including dovetail and carrying handle |
| Weight: | 1.8 kg (1.35 kg telescope with dovetail - 0.45 kg corrector) |
| Dew cap diameter: | 90 mm |
| Lens diameter of the corrector: | 53 mm (telescope side) 48 mm (camera side) |
| Dovetail: | EQ5/Vixen level with 1/4" Phototripod thread - length 100 mm |
