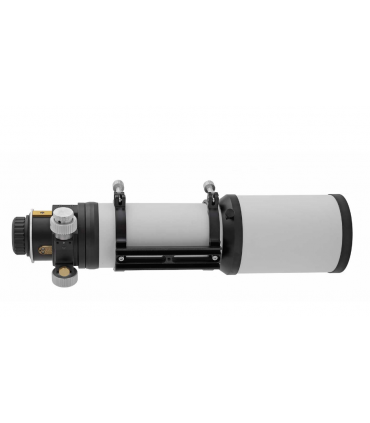

TS-Optics APO refractor 106/700 mm - triple lens + photocorrector 2.5" 0.75x

TS PHOTOLINE 106mm f/6.6 triple-tapochromatic with pure color imaging including 0.75x 3-element full-frame corrector for astrophotography

♦ 106mm aperture / 700mm focal length / f/6.6 focal ratio

♦ 3-element multi-coated lens with FCD100 APO element (similar to FPL53) from Hoya (Japan) for a color-free image

♦ The lens can be adjusted with tension and pressure screws

♦ Includes 3" 0.75x Field Corrector: Improves aperture ratio to f/4.95 with full correction up to full frame

♦ Internal screens for higher contrast and less reflections

♦ 3.5" RAP focuser with improved micro-reduction focuser tube mount - carries cameras up to 10kg without moving

♦ Connection for screw adaptations via internal thread M63x1 - 2" and 1.25" receptacle

♦ Powerful telescope also for observation with a clear and high-contrast image

♦ Retractable spray shield for transport

♦ CNC clamps, Vixen/EQ5 style dovetail bar, shank and seeker shoe included

receive it in usually 7 to 9 working days

TS PHOTOLINE 106 mm triplet apo for first-class astrophotography

The new Photoline apochromat with the premium pure color triple lens from Hoya (Japan) is the optimal solution for astrophotography. The Apo offers a clear image with sharp stars all the way to the edge. The apo also impresses with a strong contrast and high contrast image up to the highest magnification range during observation. The Apo was developed for astrophotographers who value an optically and technically mature solution. The image field corrector for full-frame cameras is already included in the scope of supply: a complete solution that also meets high demands.

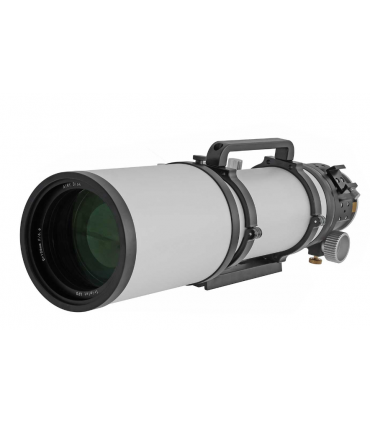

The optics achieve an image at a high level

The apo shows you lunar craters or planets without color errors with a contrast that only a refractor can do. But even bright stars show up without disturbing color fringes. The reason is the high-quality triple lens with special FCD100 glass from Hoya in Japan. The correction of this lens corresponds to the well-known FPL53.

The air-gapped triple lens is mounted on a stable, temperature-compensated mount. The entire frame can be adjusted with tension and pressure screws. Collimation is not done by lateral pressure on the lenses and is therefore much more precise and better for the image.

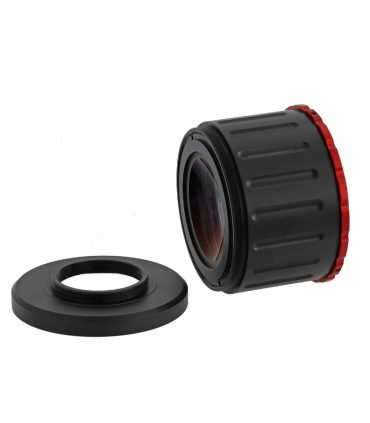

The 3-element 0.75x field corrector for sharp stars all the way to the edge

The corrector is already included in the scope of supply. It is screwed to the focuser using the M63x1 thread. Teleskop-Service highly appreciated a very good solution, especially regarding the corrector.

♦ 0.75x reduction factor: focal length reduced to 525mm, aperture ratio improved to bright f/4.95;

♦ working distance from 55mm to 60mm - finely adjustable with precision of 0.05mm - from thread M48x0.75;

♦ Adapter from M82x0.75 to M48x0.75 with a total length of 6.4 mm included for individual adaptations;

♦ 3 element design with special ED glass;

♦ Multilayers and field stops prevent reflections and improve contrast;

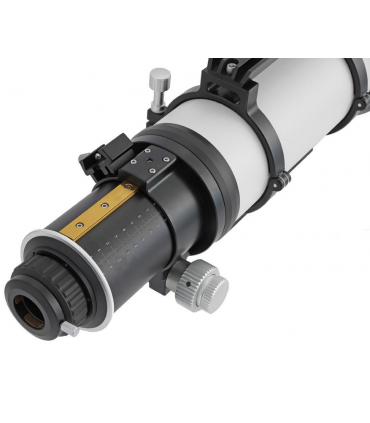

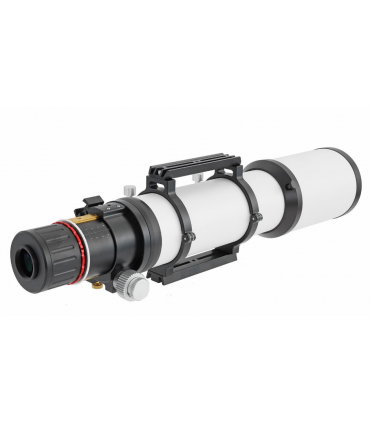

3.5" hybrid focuser for maximum load

The focuser has a special bearing so you can also attach heavy accessories to the focuser. It's not just the ball bearings that press against the drawtube, which gives way under higher loads. A rail is attached to the draw tube, which is perfectly supported by adjustable ball bearings. Even with heavy accessories up to 10kg, tilt cannot be detected.

The adjustment itself is decoupled and is achieved via a worm gear. This ensures a fine and consistent fit even with heavy accessories. The 1:10 micro reduction allows for even more precise focus. The focus position is fixed by locking the thumbwheel. No screw presses on the extraction tube.

In addition to the 2" and 1.25" barrel for visual observation, the focuser also offers the M63x1 internal thread and the M78x1 internal thread for screw-in adaptations.

360° rotation for the correct camera position

The focuser itself is permanently attached to the tube. However, many astrophotographers prefer a 360° rotation of the camera to obtain the correct image section. We offer a solution. You need 2 items for this:

♦ TSROTM63 (360° rotation) and

♦ M68a-M63i (reduced from M68x1 to M63x1)

This results in precise 360° rotation with an overall length of just 21.9mm. The rotator is screwed between the focuser and the corrector. Of course you can focus without any problem.

More information on the Hoya FCD100 APO element:

FCD100 is an ultra-low dispersion optical glass almost equivalent to fluorite (CaF2). With this glass, in combination with high refractive index optical lenses, excellent correction of chromatic aberration (color errors) can be achieved. The difference in the dispersion performance of the FPL53, for example, is less relevant than the difference in the polish of the optics. FCD100 is Hoya's designation for this special lens, just as FPL53 is Ohara's proprietary name.


Objective: 106 mm
Focal length: 700 mm
Focal ratio: f/6.6
Construction type: Air-spaced triplet lens
Special glass: Hoya FCD100 as APO element
Cell: Temperature compensated cell - adjustable
Tube material: Aluminum CNC machined with internal baffles
Tube length: 640 mm with dew shield extended - 550 mm with dew shield retracted
Tube diameter: 114.5 mm
Tube weight: 6.3 kg incl. rings and corrector
Tube rings: CNC with 1/4" female thread - centered
Dew shield: 145 mm diameter with unscrewable cap
Focuser: 3.5" hybrid focuser with rack and pinion adjustment and ball bearings
Focuser travel: 80 mm
Connections on focuser side: M78x1 and M63x1 female thread as well as 2" and 1.25
Working distance: 192 mm from the 2" receptacle
Corrector: 3-element 0.75x corrector
Telescope connection of corrector: M63x1 connection thread on the telescope side
Working distance from M48x0.75 thread: 55-60 mm, finely adjustable
