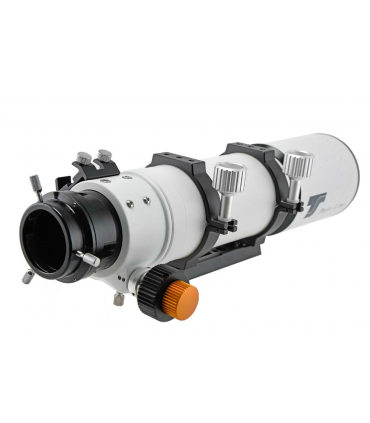

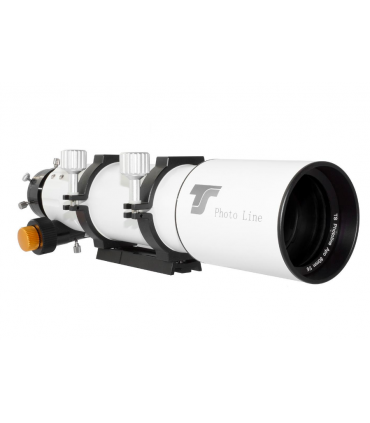

TS-Optics PHOTOLINE 80mm f/6 FPL53 Triplet Apo - 2.5" RAP Focuser

A highly corrected, almost apochromatic. Its compact dimensions make it a perfect travel telescope, also ideal for astrophotography.

♦ 80mm opening

♦ Focal length 480mm / focal ratio f/6

♦ Triplet with FPL53 element - no false color

♦ Quick cooling aluminum tube

♦ Internal baffles

♦ One of the best 2.5" focusers in its class - journal bearing mounted drawtube - rack and pinion adjustment - designed for high payload

♦ 2" receptacle and M68x1 female thread can be used for bolt-on adaptations

♦ Retractable dew cap for easy transport: a very slim travel telescope with only 3 kg weight and 37.5 centimeters transport length

€825.62
receive it in usually 7 to 9 working days
Reference:
TLAPO804
Description

TS 76mm f/5.5 Triplet ED Apo

This apochromatic refractor is the ideal telescope for travel. The refractor is compact, even supported by good photographic tripods or compact mounts like the EQ3. Due to the well-corrected triplet objective, the refractor convinces with a clear and contrasty image, free from disturbing chromatic aberrations. Daytime use is just as possible as nighttime use under the starry sky.

Astrophotography with the apo

We have developed a 0.82x image field corrector for the TSAPO76. Screws directly to the focuser. The concealer is linked in the recommended accessories.

Attaching the TS 76mm apo to photographic mounts and tripods

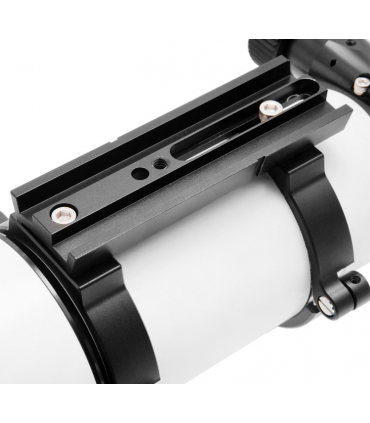

The CNC mount has a GP and EQ5 style dovetail bar at the base. You can attach the telescope to the corresponding saddles of mounts and travel mounts like the Skywatcher Star Adventurer. Matching saddle plates can be found in the accessories section. In addition, the dovetail bar also has a 1/4" photo tripod thread. So, like a telephoto lens, the apo fits directly onto any photo tripod.

The carry handle is a real multifunctional feature

The handle not only makes it easy to mount on the photo tripod, but is also the basis for future adaptations. The handle has a slotted hole and a 1/4" photo tripod thread. You can attach a ball head to it, for example, and mount a second camera in parallel. Next to the carrying handle is a finder shoe for finder scopes, mini guide scopes or red dot finders.

Observation with the TS APO76

Naturally, the pure color triplet lens also provides an excellent base for observation. The high contrast image ensures a flawless image during the day, for example when watching birds. At night, the 76mm aperture reveals crater scenery on the moon or exciting details on the planets of the solar system. Many thousands of deep-sky objects are also within range of the apo. You can use 1.25" and 2" accessories, such as 2" star diagonal mirrors.

Especificaciones:

Objective design: apochromatic triplet with FPL53 element
Coating: fully multi-coated
Aperture: 80 mm
Focal length: 480 mm
Focal ratio: f/6
Tube material: aluminum
Tube length with retracted dews hield: 375 mm
Tube length with extended dew shield: 435 mm
Tube diameter: 89 mm
Dew shield diameter: 103,3 mm
Thread between tube and focuser: M86x1 female thread on the tube side (only important when exchanging focuser)
Dew cap design: retractable
Tube weight: 3.14 kg with tube rings

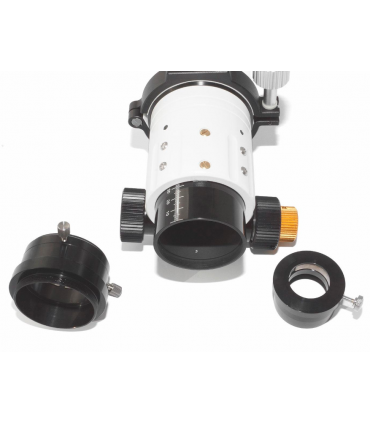

Focuser: 2.5" RAP with 1/11 dual speed, reinforced plain bearings
Connections on the eyepiece side: M68x1 female thread, 2" and 1.25"
Backfocus: 135 mm from the 2" connection and 170 mm from the female M68 thread
Maximal load of focuser: 5 kg
Drawtube travel: 75 mm
