TS-Optics Photoline 80mm f/6 Triplet FPL53 SuperApo with 2" Feather Touch Focuser

TS Photoline Triplet FPL53 Super Apo - 80mm Aperture / 480mm Focal Length (f/6)

♦ Triplet APO lens with 80/480mm air gap

♦ Ohara FPL53 for optimal color correction

♦ Retractable dewcap – allows for a transport length of just 318mm

♦ CNC Tube Rings

♦ 2" Starlight Feather touch FTF2025BCR with 63mm travel

♦ Overwhelming 5.5° field of view with a suitable 2" eyepiece

♦ In combination with the 2" TS flattener an exceptional and fast photographic Apo

♦ One of the best coatings we have ever seen: no annoying reflections

♦ Long working distance of 180mm from the 2" connection

receive it in usually 7 to 9 working days

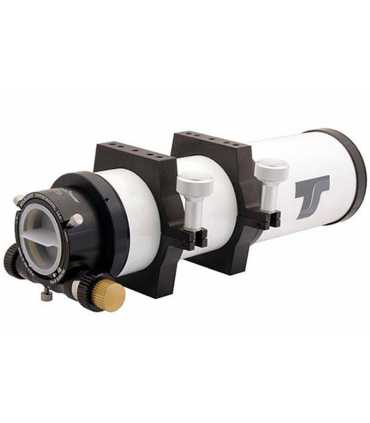

TS-Optics Photoline 80mm f/6 Triplet FPL53 SuperApo

Managed by TS, this high quality triplet apochromat with an ED FPL53 element has been designed to be an optimal travel scope. Even at the highest magnifications, the image remains free of false colors and has a high degree of correction. The fast f/6 system isn't just short and compact; it also provides the short exposure times that astrophotographers desire. Optically and mechanically, it can be compared to the famous Lomo systems.

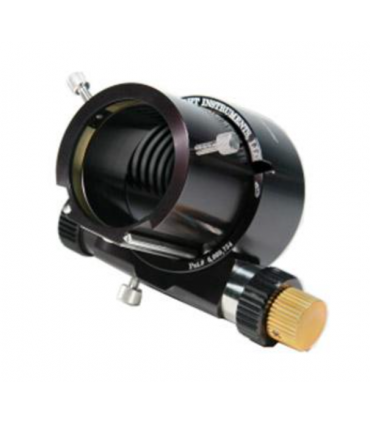

Includes 2" Starlight Feather Touch Focuser FTF2008BCR

Not only for the image, the exact focus and the precise lock are very important. With this telescope, we use the best focuser we can find on the market: The Starlight Feathertouch. No compromises. More about Starlight FTF2025BCR

The TS 80/480mm Super Apo FPL53 lens

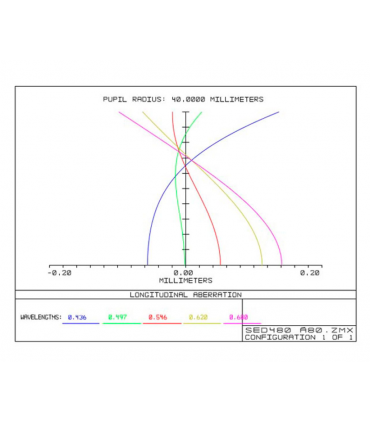

This test shows the color aberration in relation to the wavelength of light. Even at magnifications greater than 200x, star images remain white. In astronomical images, even the brightest stars do not show blue fringes as is often seen with apos or FPL51 ED systems.


Objective: Air spaced triplet apo with FPL53 element
Aperture: 80 mm
Focal length: 480 mm
Focal ratio: f/6
Coating: Fully multi coated
Tube length with retracted dew shield: 318 mm
Tube weight: 2.7 kg w/ CNC rings
Tube diameter: 89 mm
Dew shield diameter: 103.3 mm
Focuser travel: 63 mm
Tube material: CNC aluminium tube with CNC tube rings
Back focus from the 2" focuser: 180 mm
Interrim thread between focuser and tube: M82x1 for extension rings
