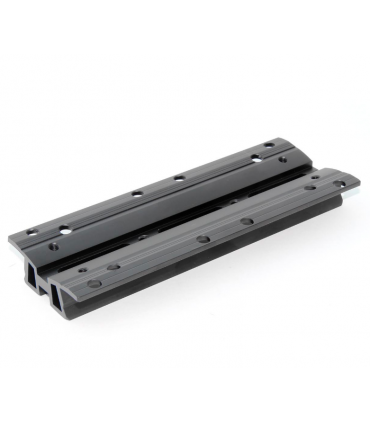

TS-Optics Vixen-Level Dovetail Bar - length 180mm, with wide mount

Dovetail bar offers a 70mm wide flat contact surface and radii for telescopes from 150mm to 400mm in diameter

♦ Length 180mm

♦ Can be attached to almost all telescopic tubes: the surface automatically adapts to the telescopic tube

♦ Elongated holes and side holes make mounting easy

♦ Dovetail bar has two 1/4" internal threads at the base

♦ Extra light and stable thanks to profile construction

♦ Suitable for all Vixen style quick release mounts

Entrega entre 7 y 9 días laborables

Dovetail bar V-(Vixen)-Level - length 180 mm

The short dovetail bar allows compact telescopes to be attached to mounts with Vixen-style quick-release couplings. Among other things, the splint fits:

♦ Skywatcher: EQ3, EQ5, HEQ5, AZ-EQ5

♦ Celestron: Advanced VX

♦ Bresser Messier EXOS

♦ and many more mounts

The TSPSV180 dovetail bar as a base for accessories on the telescope

Astrophotographers, in particular, like to attach accessories such as small guide scopes, sets of running weights, or telescope-attachable camera mounts. Simply mount the lightweight dovetail bar to the telescope and you can easily attach accessories with a matching dovetail clamp. Matching clamps are linked in the accessories area.

TSPSV180 Dovetail Bar Features:

♦ The prism rail is made of aluminum profile. Thanks to this design, the weight can be reduced by approximately 60% compared to a full profile rail with comparable stability, low vibration and stiffness.

♦ The dovetail bar has support for flat surfaces, such as the bottom edge of pipe rings. Width is 70mm, more than most dovetail bars offer. Also, the rail has different radii for telescopes from 6" to 14" aperture. Thus, the rail can be mounted directly on the tubes and sits comfortably.

♦ Internal threads and holes are available for almost all adaptations. In addition to the side holes and three elongated holes in the middle, the rail also offers two internal 1/4" threads for photo adaptations.

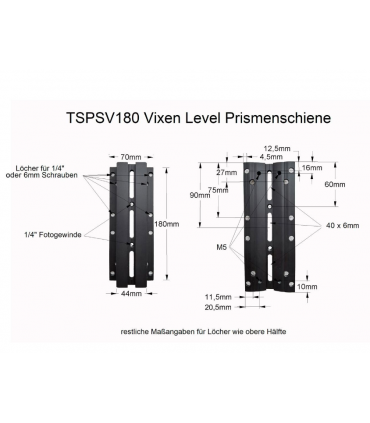

Dovetail bar: V / Vixen Level
Length: 180 mm
Width at the top side: 70 mm
Effective height: 22 mm
Maximum width at the bottom side: 43,5 mm
Bores: three long bores for 1/4" and M6, various bores at the edges and 2x 1/4" female threads
