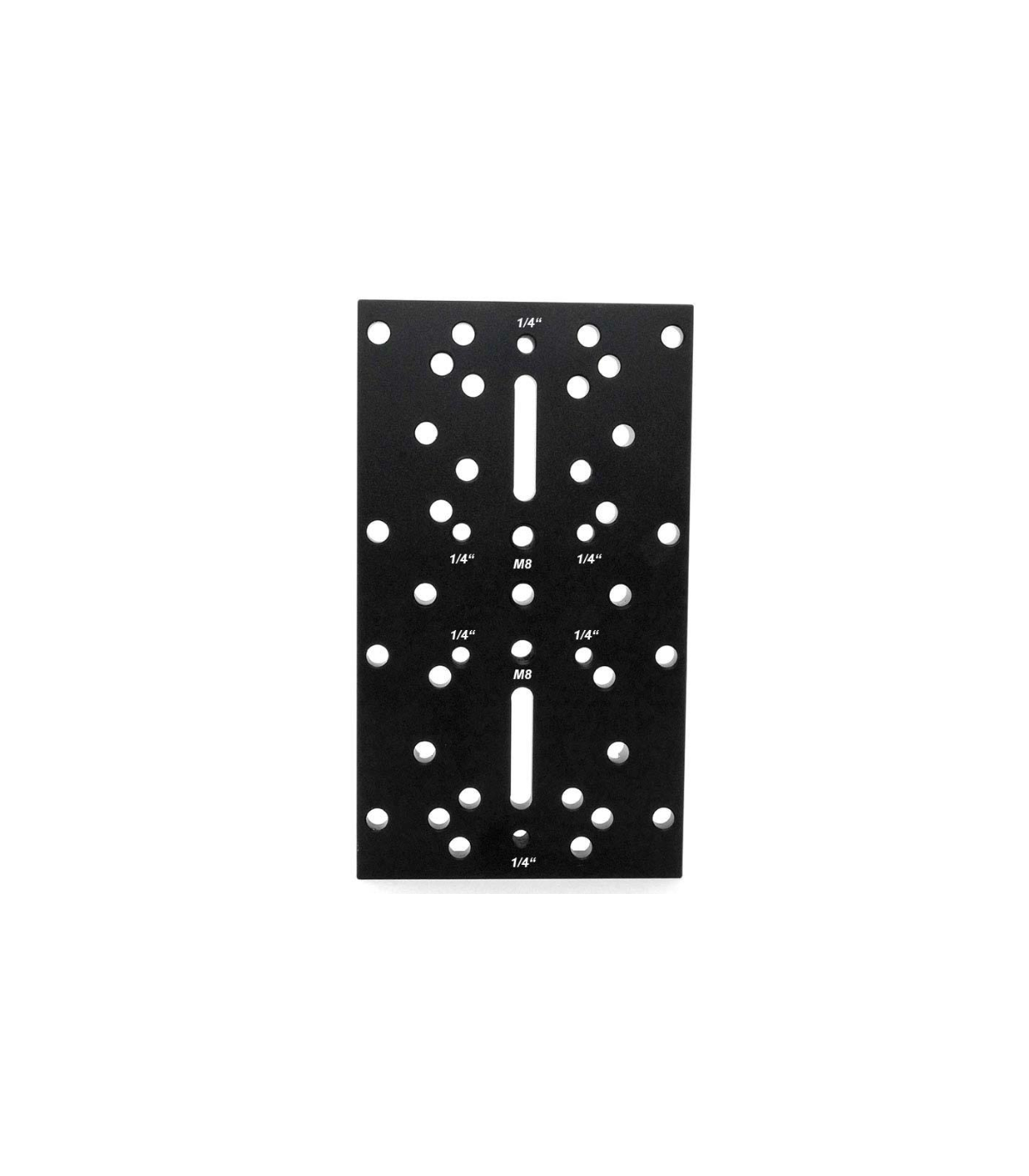

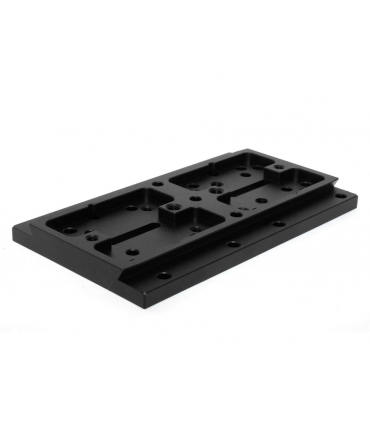

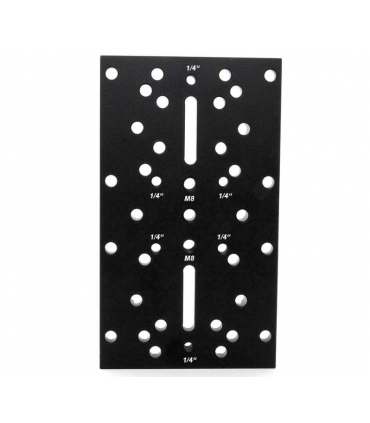

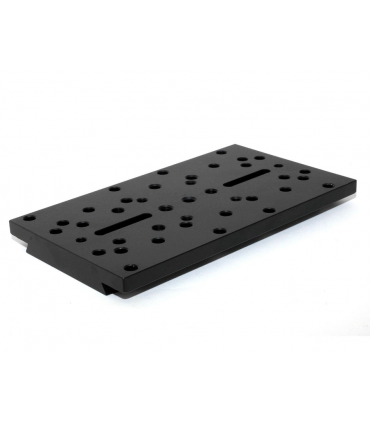

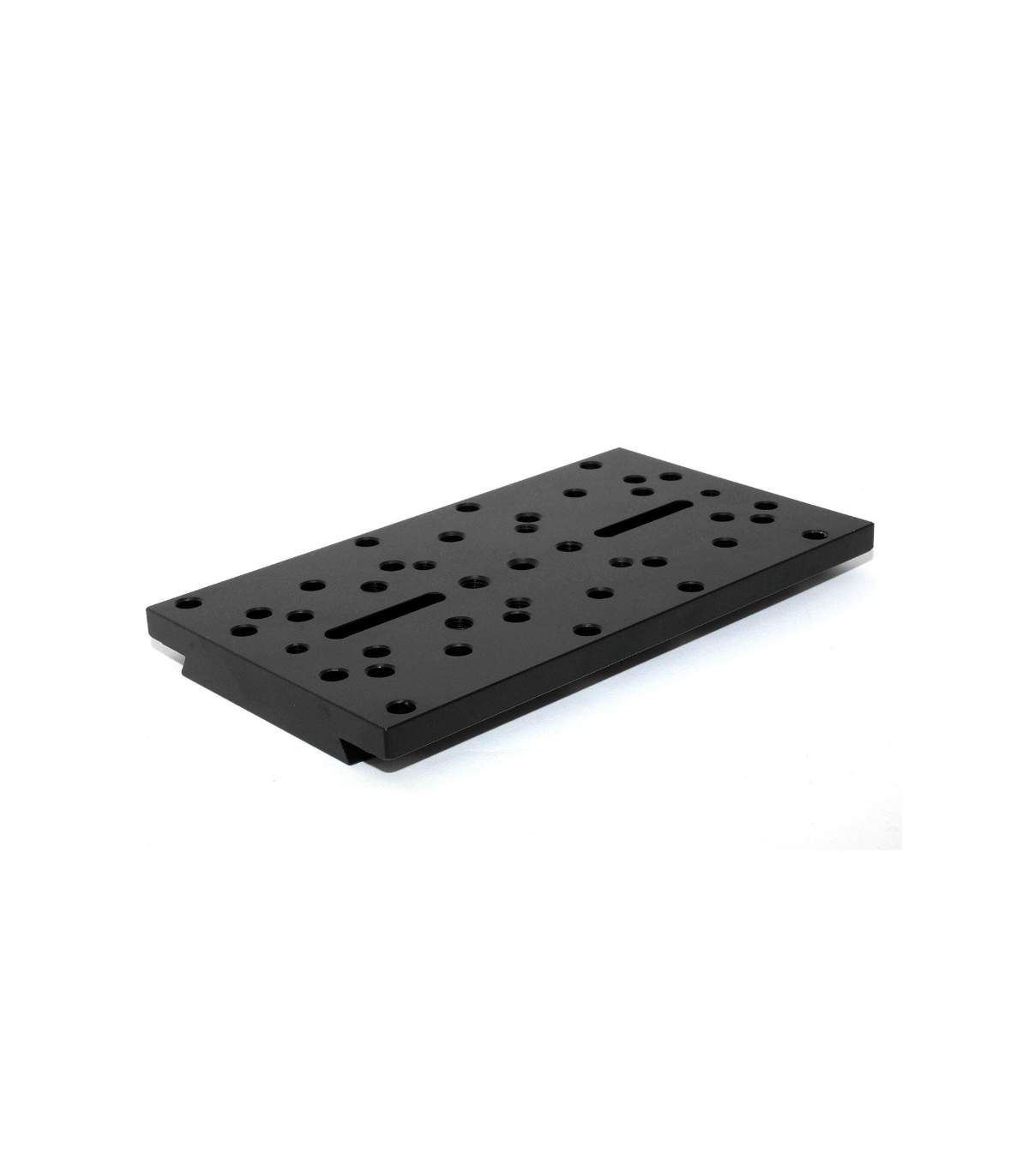

TS-Optics Dovetail Bar - Losmandy Level, Level Bracket, Length 180mm
Versatile dovetail bar for attaching scopes to mounts with Losmandy-style quick-release couplings.
♦ Rail length: 180mm
♦ Only 434 grams of weight thanks to the construction of the profile; however, maximum rigidity
♦ Elongated holes, internal threads and countersunk screw holes allow flexible attachment of telescopes, telephoto lenses and spotting scopes
€59.90
(VAT incl.)
Reference:
TSPS210
TS Optics Losmandy Level dovetail bar - short
This TS Dovetail Bar allows for solid attachment of your telescope, spotting scope, or similar to mounts with Losmandy-style quick couplers and Losmandy-style dovetail clamps.
Features and benefits of the TSPS210 dovetail:
♦ Length 180 mm - The rail is especially suitable for shorter telescopes.
♦ Weight only 434 grams due to profile construction, yet maximum stability and low vibration.
♦ Elongated and countersunk holes as well as internal threads allow trouble-free adaptation of various accessories such as ball joints, telescope guide rings or telescope tube rings.

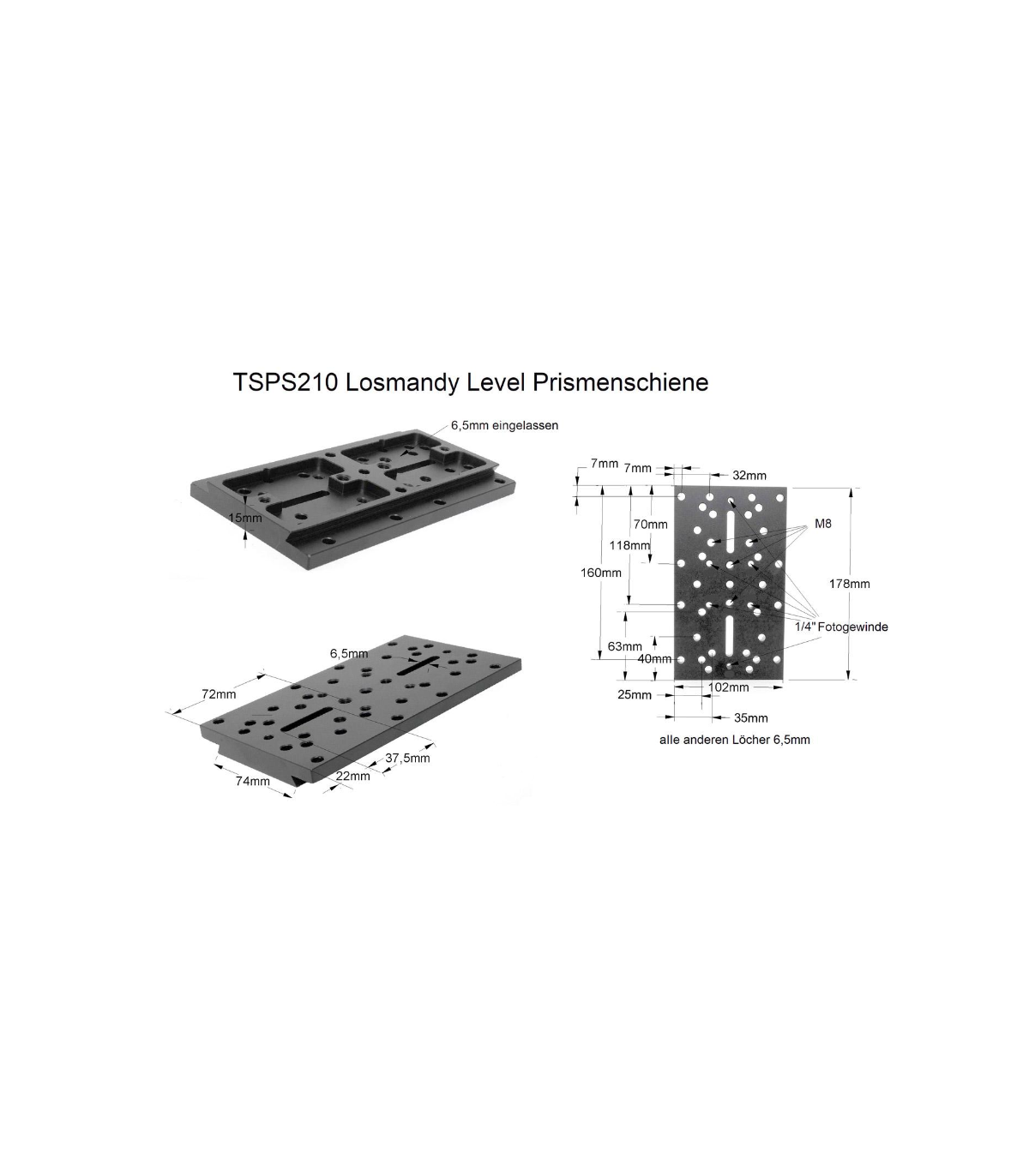

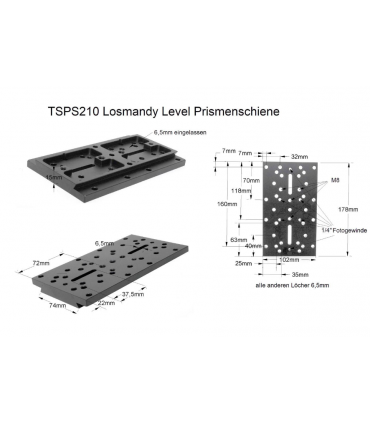

Especificaciones:
| Length: | 180 mm |
| Weight: | 434 grams |
| Width of the Losmandy style dovetail: | 74 mm at the widest part |
| Counter sunk holes for 1/4" and M6 screws: | Distance 32 mm, 38 mm, 51 mm, 50 mm, 60 mm, 89 mm (to the long center axis) |
| Two slotted holes for 1/4" and M6 screws: | 38 mm length each |
| M8 thread bores: | 4x M8 in the center axis |
| 1/4" thread bores: | 2x 1/4" at front and rear end and 2x 1/4" thread bore each, 38 mm distance (to the long center axis) |
