TS-Optics 3" Losmandy style dovetail bar for tubes with a diameter of 300mm or more
General dovetail bar with tube rings for telescopes with a tube diameter of 300mm, suitable for mounts with Losmandy style quick couplings
♦ Prism rail with inner profile for weight reduction
♦ Solid support blocks for full support of the telescope

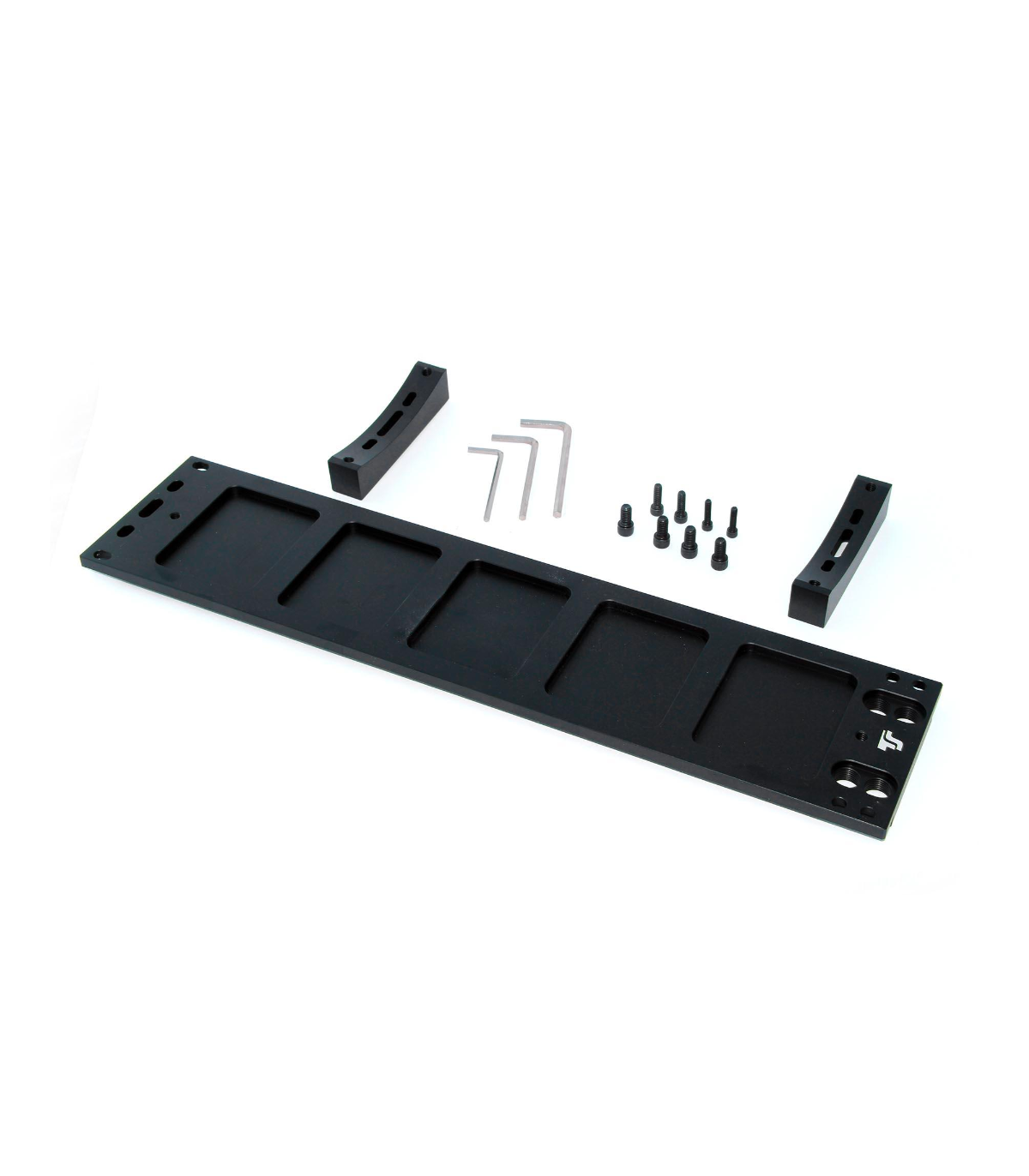

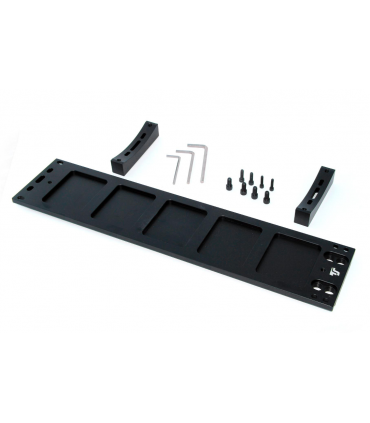

♦ All screws and keys are included
♦ Suitable for pipes with a diameter of 300mm or more
♦ High-quality workmanship made of hard aluminum - no torsion, no vibration
€104.90
(VAT incl.)
Reference:
56843
TS Optics high quality 3" dovetail bar for tubes with a diameter of 300mm or more
The dovetail bar fits all telescopes with an outside diameter of 300mm or more and allows secure attachment to mounts with a 3" Losmandy style quick coupler.
Due to the support blocks, the telescope gets better support than with simple dovetail bars. The tube cannot be twisted and is firmly connected to the rail. The stiffness is optimal.
Dovetail bar fits all Losmandy style quick release mounts:
♦ Losmandy G11, GM8
♦ Skywatcher EQ6, AZ-EQ6, EQ8...
♦ Celestron CGEM, CGEM-DX, CGE Pro
♦ TS WS240GT optics
♦ 10 micron GM2000, GM3000, GM4000
♦ and many other mounts
Especificaciones:

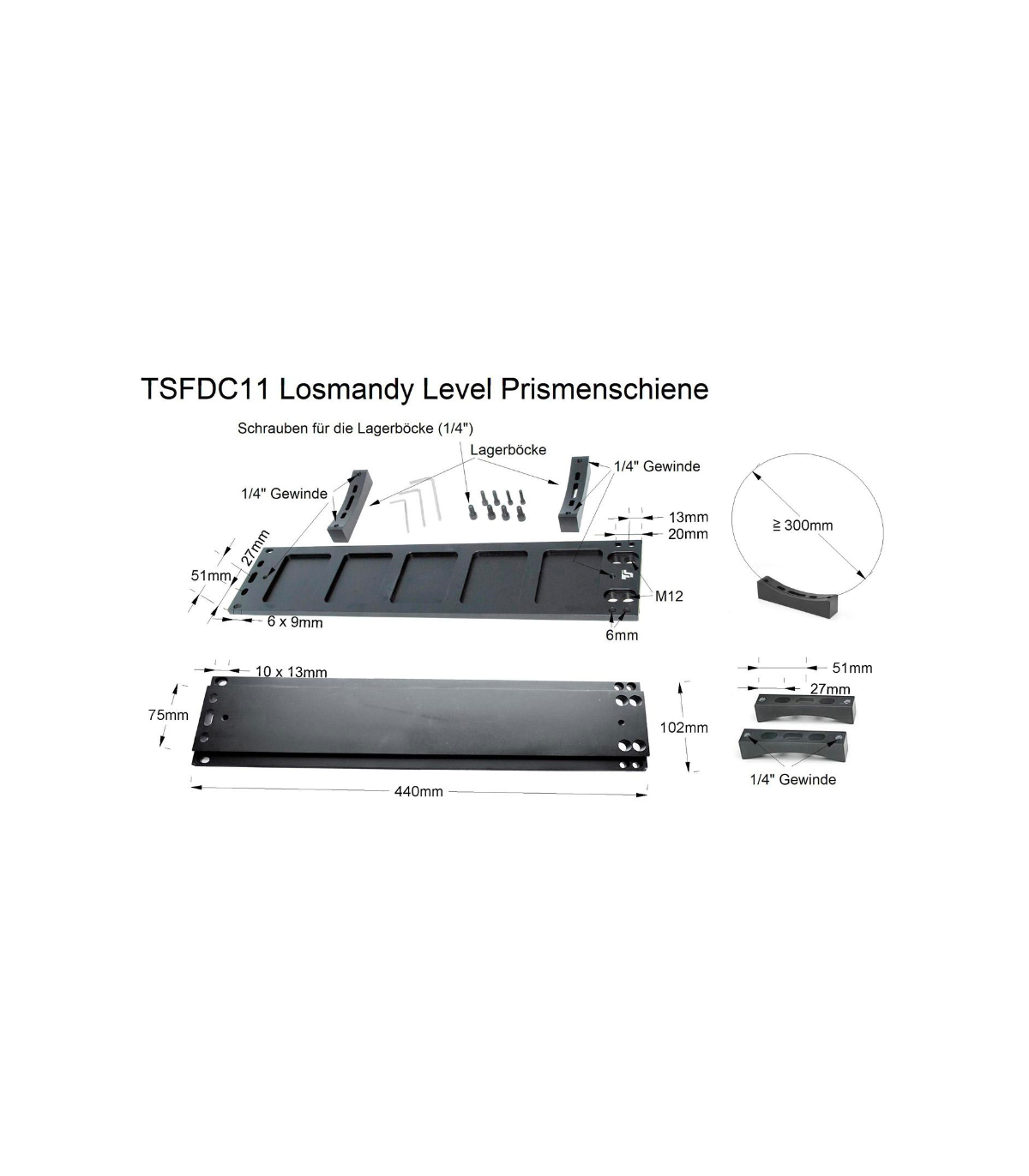

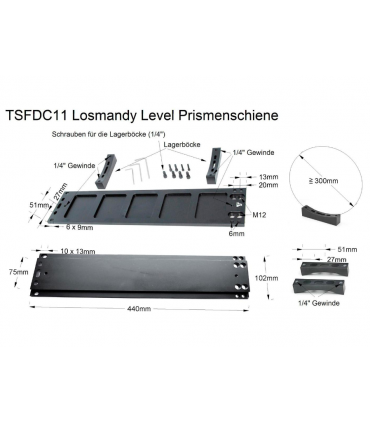

| Length: | 438 mm |
| Thickness: | 13 mm |
| Bore diameter: | suitable for screws M6 or 1/4" |
| Distance of bores: | 88.9 mm (3.5") |
