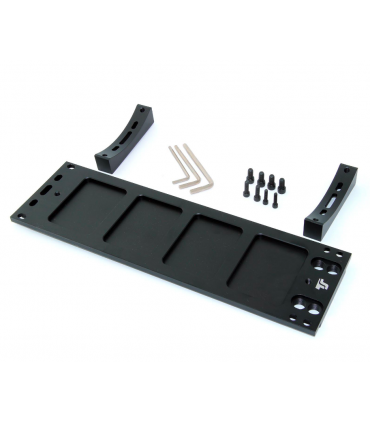

TS-Optics 3" Losmandy style dovetail bar for tubes with a diameter of 230mm or more
General dovetail bar with tube rings for telescopes with a tube diameter of 230mm, suitable for mounts with Losmandy style quick couplers
♦ Prism rail with inner profile for weight reduction
♦ Solid support blocks for full support of the telescope
♦ All screws and keys are included
♦ Suitable for tubes with a diameter of 230mm or more
♦ High-quality workmanship made of hard aluminum - no torsion, no vibration
TS Optics high quality 3" dovetail bar for tubes with a diameter of 230mm or more
The dovetail bar fits all telescopes with an outside diameter of 230mm or more and allows secure attachment to mounts with a 3" Losmandy style quick coupler.
Due to the support blocks, the telescope gets better support than with simple dovetail bars. The tube cannot be twisted and is firmly connected to the rail. The stiffness is optimal.
Dovetail bar fits all Losmandy style quick release mounts:
♦ Losmandy G11, GM8
♦ Skywatcher EQ6, AZ-EQ6, EQ8...
♦ Celestron CGEM, CGEM-DX, CGE Pro
♦ TS WS240GT optics
♦ 10 micron GM2000, GM3000, GM4000
♦ and many other mounts

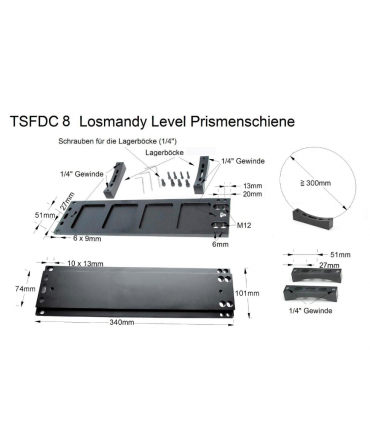

Especificaciones:
| Length: | 343 mm |
| Thickness: | 13 mm |
