The adapter allows the connection of M68x1 adapters and correctors to telescopes with an external thread M74x1, such as some Skywatcher ESPRIT
♦ Telescope side connection: Internal thread M74x1 (female)
♦ Camera side connection: Internal thread M68x1 (female)
♦ Adapter total length: 11mm
♦ Ideal for connecting the TSFLAT2.5 corrector to Skywatcher ED Apos ESPRIT 120mm and 150mm
♦ It also allows the adaptation of the Riccardi M63 Reducer to Skywatcher Esprit 120 and 150 Apos

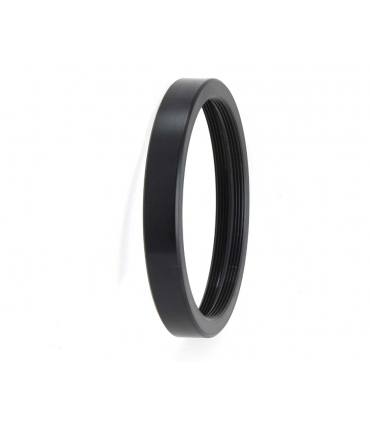

TS adapter to internal thread M68x1 for focusers with external thread M74x1
The adapter allows the connection of correctors and adapters with external thread M68x1 on the telescope side. The Riccardi Reducer with M63 connection can also be adapted through the multifunction adapter RIREDM63-M68 and lowered onto the draw tube.
The adapter fits all refractors with an external thread M74x1 on the focuser. Converts M74 external thread to M68x1 Zeiss level internal thread.
|Thread at telescope side:||M74x1 female - length 6 mm|
|Thread at camera side:||M68x1 female - length 5 mm|
|Adapter length:||11 mm|
|Outer diameter of the adapter:||80 mm|
What goes in the box:
♦ TS Optics Adapter
