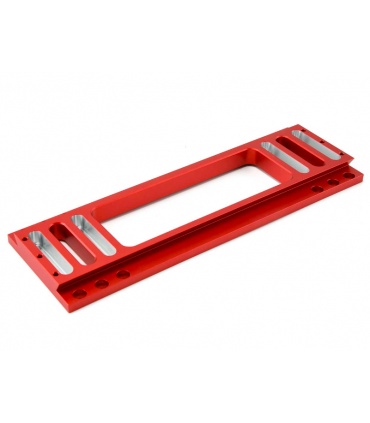

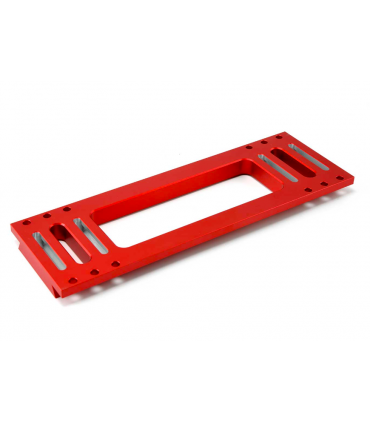

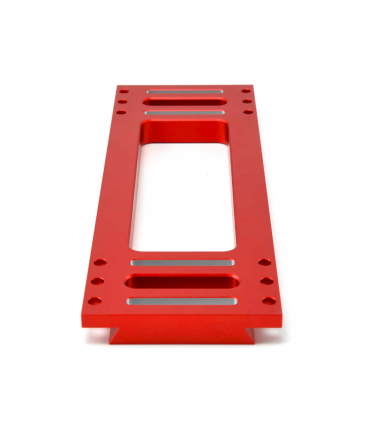

TS-Optics Losmandy Level dovetail bar - length 300 mm - light

Losmandy flexible dovetail bar offers high stiffness and low vibration, weighs only 507 grams

♦ Length: 300mm

♦ Four slotted holes for M6 and 1/4" Allen screws for flexible fixing of pipe clamps, also with various screws

♦ No wobble or vibration, yet weighing only 507 grams, the mount is not burdened unnecessarily

♦ Elegant design with metallic red anodizing

♦ Due to the lightweight construction and flexible elongated holes, the rail is ideal for self-construction of a double fixture

♦ Spacing of elongated holes: smallest spacing 205mm / largest spacing 274mm

Read moreShow less
Entrega entre 7 y 9 días laborables

TS-Optics Losmandy-Level lightweight dovetail bar with flat contact surface

The dovetail bar is very solid and supports even heavy telescopes without vibration. The weight of the dovetail bar has been uncompromisingly saved so that the mount is not loaded unnecessarily. However, the rail offers a high level of rigidity thanks to a well dimensioned wall thickness.

Four slotted holes, suitable for M6 and 1/4" hexagon socket screws, allow flexible attachment of pipe clamps or other components such as ball heads or prism clamps. This makes the rail ideal for building a flexible parallel fixing.

The dovetail bar fits the following mounts, among others:

♦ All Losmandy style quick release mounts;

♦ Losmandy mounts: GM8, G-11, Titan...

♦ Celestron mounts: CGEM, CGEM-DX, CGE Pro...

♦ Skywatcher mounts: NEQ6, AZ-EQ6, EQ8...


Suitable for: Mounts with Losmandy style quick coupling (saddle plate)

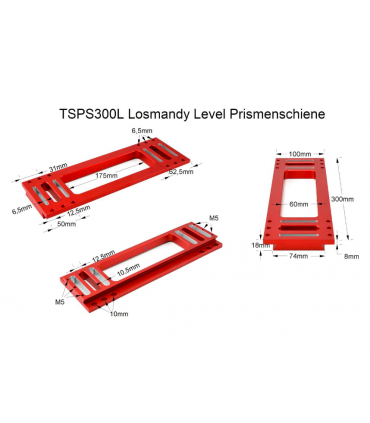

Length: 300 mm
Maximum width at dovetail: 73.5 mm
Width of the support surface: 100 mm
Thickness of the support surface: 8 mm
Thickness of the entire dovetail bar: 18 mm
Diameter of the oblong holes: 6.2 mm for the thread / 10.3 mm for the screw head
Length of the oblong holes: 56 mm from one end to the other - suitable for thread spacing up to 50 mm
Weight: 507 grams
