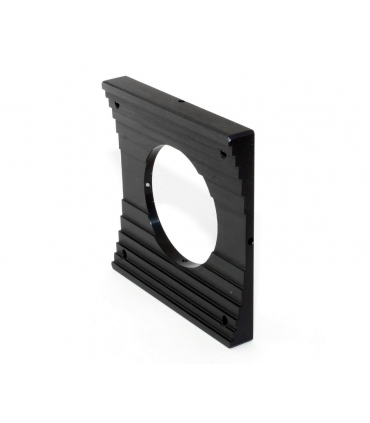

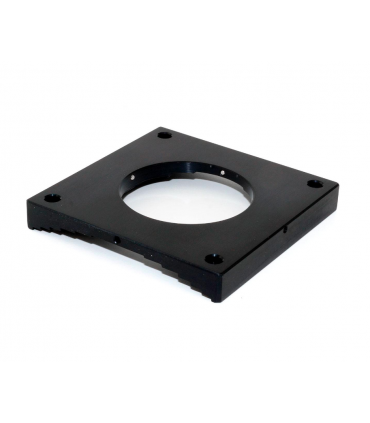

TS-Optics Newtonian base for Starlight Feather Touch 2" for D-300-355 mm

Newtonian base for Starlight Feather Touch focuser FTF2008, FTF2015... Suitable for tubes with a diameter of 300 mm to 355 mm.

♦ CNC Bases for 2" Starlight Feather Touch Focusers

♦ Large contact surface on the tube of 120 mm x 120 mm

♦ The contact surface optimally adapts to the tube surface thanks to its stepped design, it is not possible to tip over

♦ The base is suitable for telescopic tubes from 300mm to 355mm in diameter

♦ The focuser is attached with four grub screws.

♦ Distance between the holes for fixing the telescope: 100 mm along and 100 mm along the tube

€99.13
Entrega entre 7 y 9 días laborables
Reference:
BA20CL-303mm
Description

Newtonian base for Starlight FTF20.. Focusers

The base fits Newtonian telescopes with tubes from 300mm to 355mm in diameter. Due to a special shape of the contact surface, the base always adapts optimally to the curvature of the tube. Tilt is not possible. The extra large contact surface also ensures stability and prevents the tube from giving way.

The base is fixed to the tube with M4 screws (not included).

Especificaciones:

Newtonian Base: suitable for FTF20.. Feather Touch focusers
Curvature: Suitable for tubes from 300 to 355 diameter
Outer dimensions: 120.4 mm x 120.4 mm
Distance of the holes for attaching to the tube: 99.5 mm x 99.5 mm
Diameter of the central bore: 69.8 mm
Clamping of the focusers: at the dovetail ring of the the focuser with four headless screws (supplied)
Product Details
BA20CL-303mm
