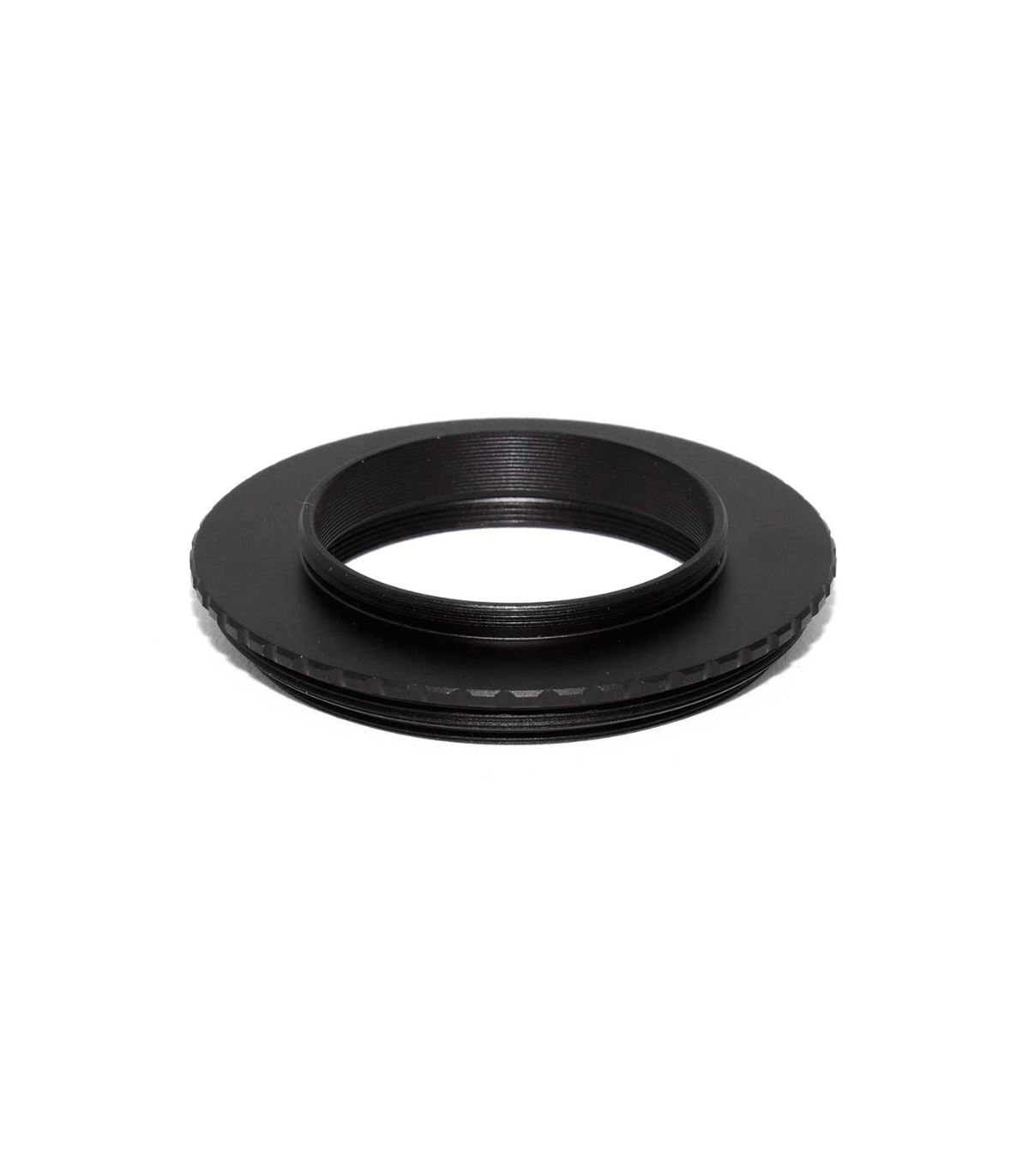

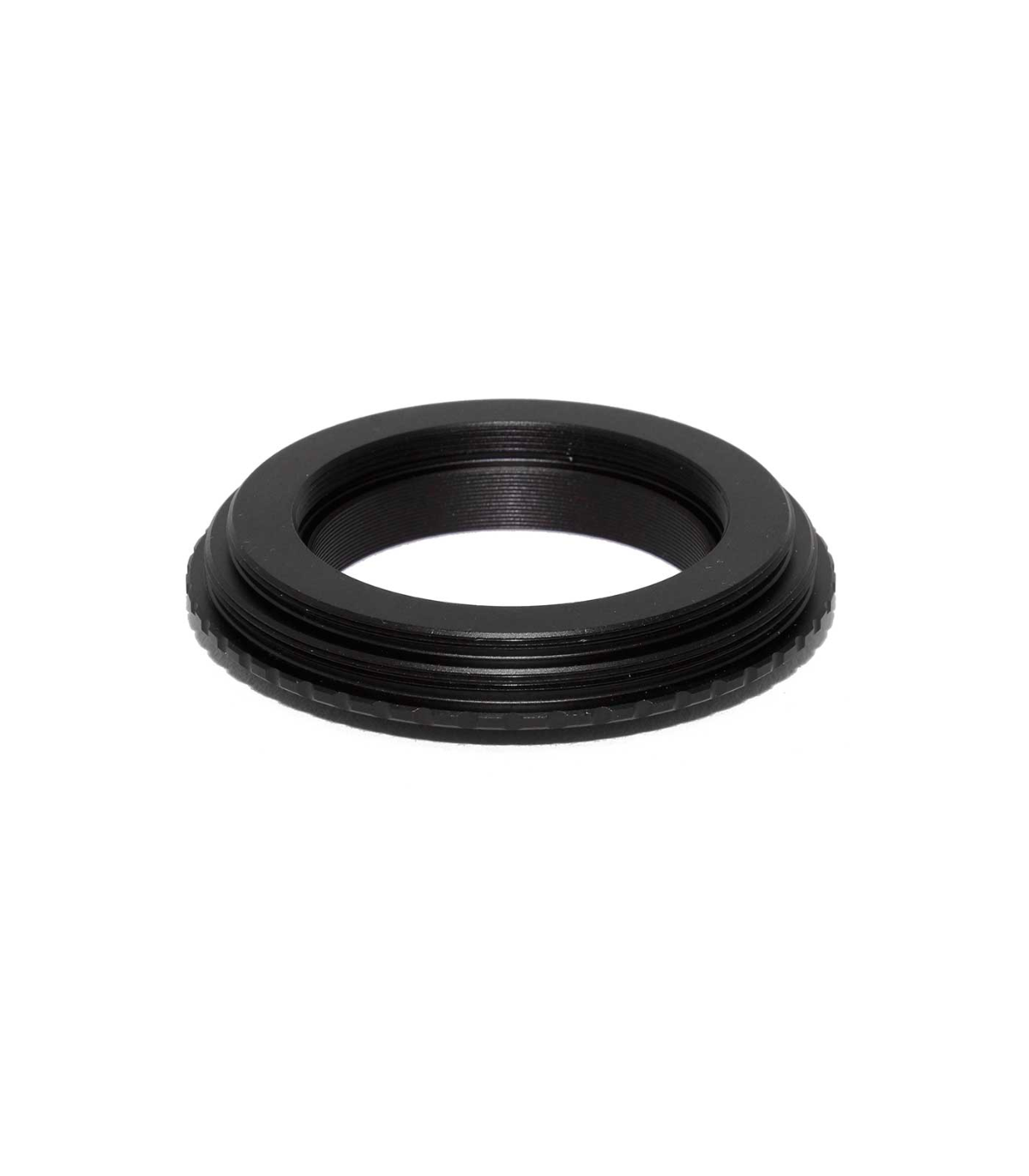

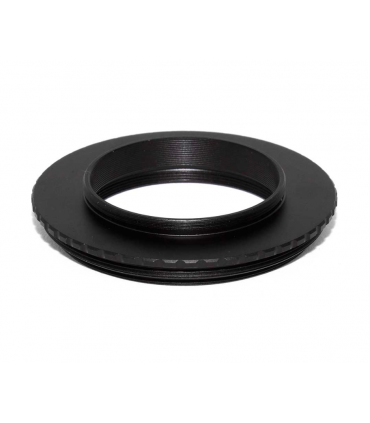

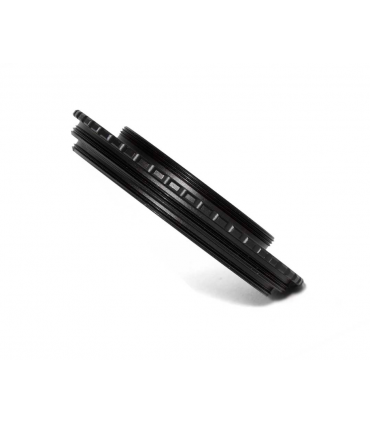

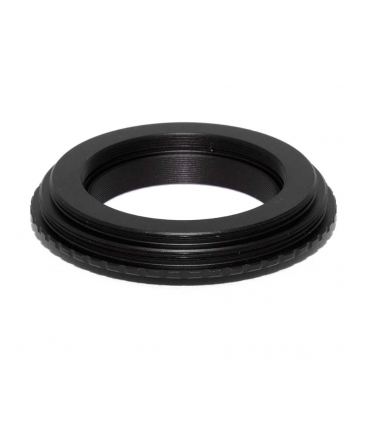

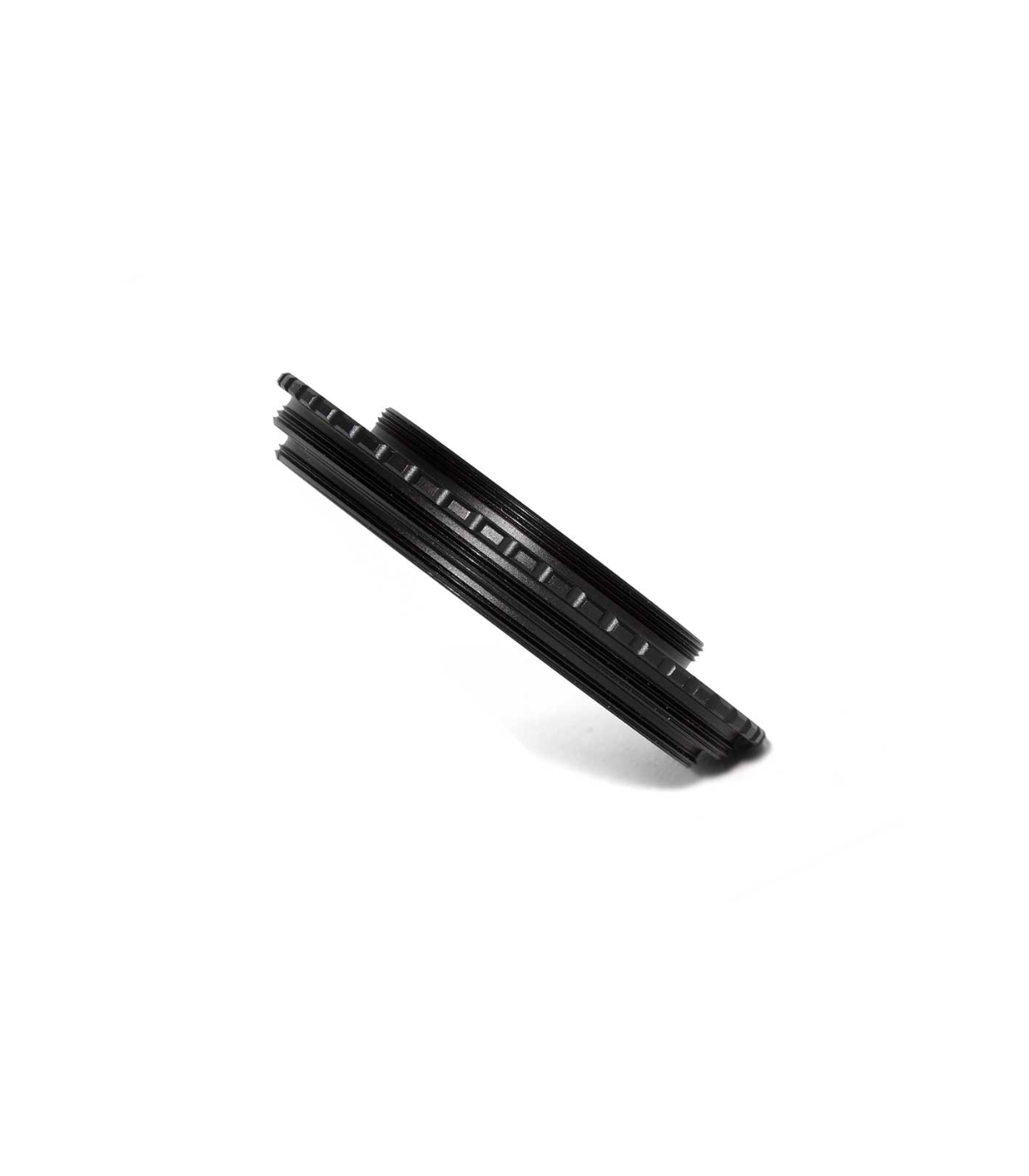

TS-Optics adapter from M68 and M63 to M48 - Riccardi connection adapter

TS Optics multifunction adapter with M68 ZEISS level thread, connection thread M63 Riccardi reducer to thread M48.

♦ M48 connection adapter for the Riccardi Reducer with connection thread M63x1 - total length 6.2 mm.

♦ Insert the Riccardi Reducer into the focuser and you can always easily reach the focus - connection thread on the focuser through M68x1 - total length 6.2 mm.

♦ Short adapter for focusers with internal thread M68x1 to connection M48x0.75 - total length only 2.3 mm.

♦ With M48 internal thread to adapt 2" filters or to screw on the TS FLAT2 corrector for astrophotography with refracting telescopes. The total length from the M48 internal thread to the M48 external thread is then 9.5 mm.

Read moreShow less
€41.32
Entrega entre 8 y 10 días laborables
Entrega entre 8 y 10 días laborables
Reference:
RiredM63-M68
Description

TS Optics multifunction adapter M68 and M63 connection to M48 thread

Teleskop Service developed this adapter for the popular Riccardi apo reducer and corrector with M63 connection thread. The adapter offers a short adaptation to M48 and thus allows for a clean adaptation, but the adapter can do even more.

♦ Adapter from M63 to M48 for the Riccardi Reducer with a length of 6.3 mm.

♦ Connecting the Riccardi Reducer to an apos with a large focuser: Typically, the Riccardi Reducer requires about 170mm of back focus, which is more than most refractors offer. You can lower the Riccardi Reducer into the focuser using the M68 thread on the side of the telescope. An M68 connection thread is required and of course the extension tube must be able to accommodate the reducer. The diameter of the Riccardi Reducer is 68 mm.

♦ A classic M63 and M68 to M48 adapter for all focusers with these threads.

♦ The adapter also has an internal M48 thread on the telescope side. You can screw in a 2" filter here, or you can use this thread to screw on correctors, such as the TSFLAT2 astrophotography field corrector, for a clean screw-on solution with the TSFLAT2 as well.

The TS multifunction adapter fits all focusers with an M68 or M63 internal thread:

The adapter is simply screwed onto the internal thread and fits an M48 connection with maximum free opening. Among other things, the adapter fits:

♦ All TS PHOTOLINE APO with focusers from 2.5"

♦ All Skywatcher ESPRIT points

♦ All LZOS Apos with 2.5" focusers

♦ Post ECT

♦ APM ED refractor

♦ Long Perng Apos

♦ APM 107mm Apo

♦ All CFF APO telescopes

... and many more.

This adapter facilitates the correct screwing of correctors for astrophotography.

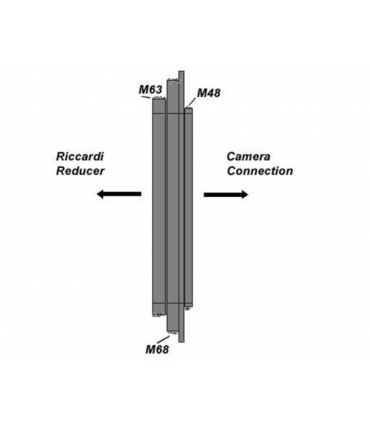

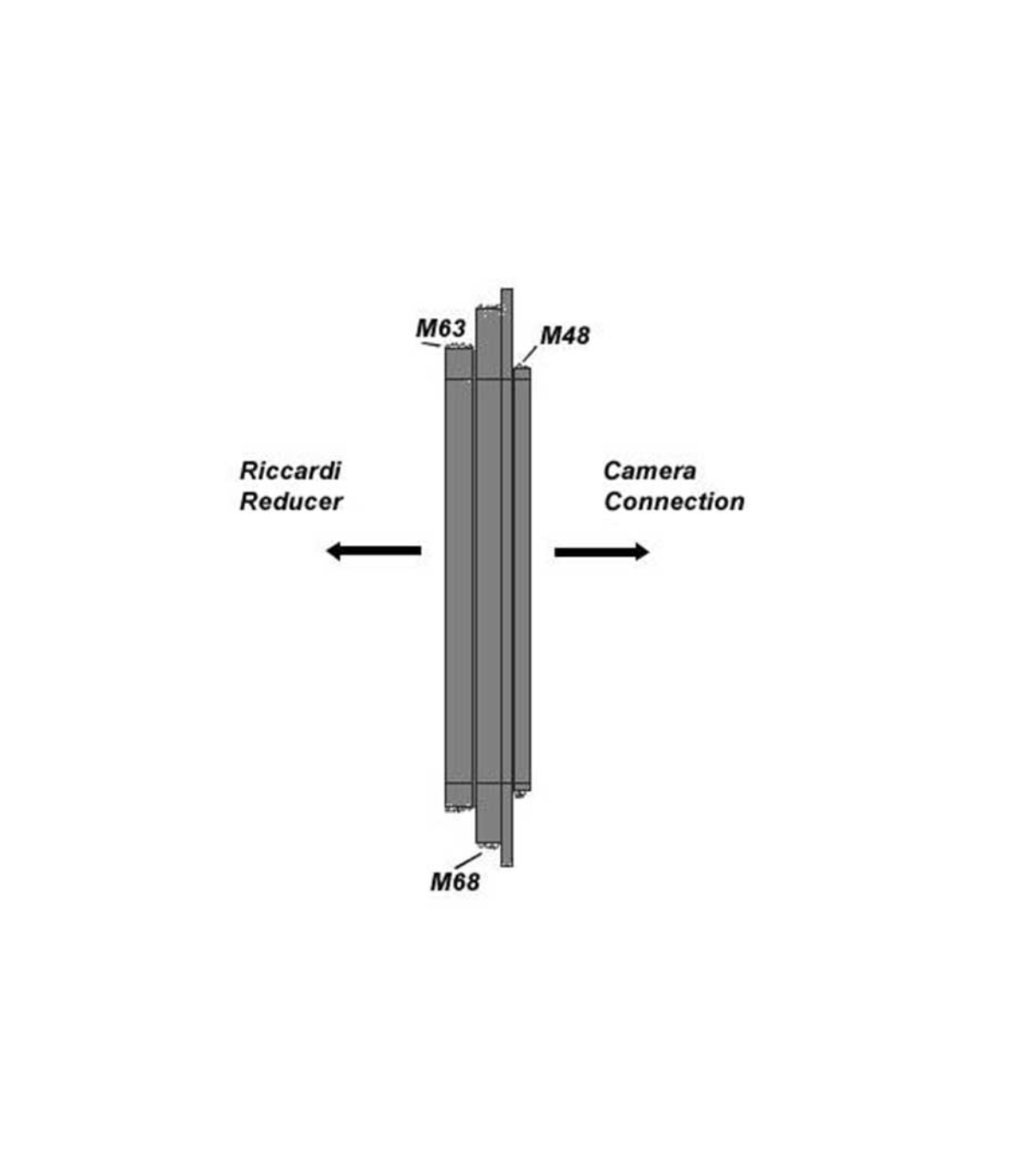

Telescope side threads: M63x1 male, M68x1 male, M48x0.75 /2" filter thread female
Camera side thread: M48x0,75 / 2" filter thread male - length 4 mm
Optical length from the M48 female thread: 9.5mm (male M48 thread not taken into account)
Optical length from the M63 thread: 6.2 mm (male M48 thread not taken into account)
Optical length from the M68 thread: 2.1 mm (male M48 thread not taken into account)

What goes in the box:

♦ TS Optics Adapter
