The adapter allows to connect accessories with internal thread M68x1 to focusers with external thread M86x1.
♦ Telescopic side connection: internal thread M86x1 - thread length 5.5 mm
♦ Camera side connection: external thread M68x1 thread length 5 mm
♦ The adapter reduces an external thread M86x1 to an external thread M68x1

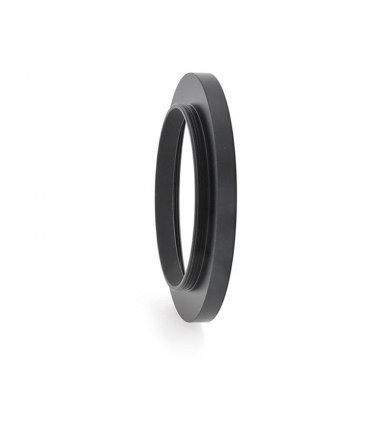

Connection adapter M68x1 for focusers with external thread M86x1
Adapt professional M68 accessories such as correctors, off-axis guides or stable adapter rings to the focuser. Everything is well screwed, nothing can tilt.
The adapter has an external thread M68x1 on the camera side. It's short with just 7mm of optically effective travel (without the external thread), so there's plenty of room for accessories. With an optional inverter ring M68i-M68i you can convert the external thread to an internal thread.
|Thread telescope side:||M86x1 female thread - length 5.5mm|
|Thread camera side:||M68x1 external thread - length 6mm|
|Optically effective overall length:||7mm (without external thread)|
What goes in the box:
♦ TS Optics Adapter
