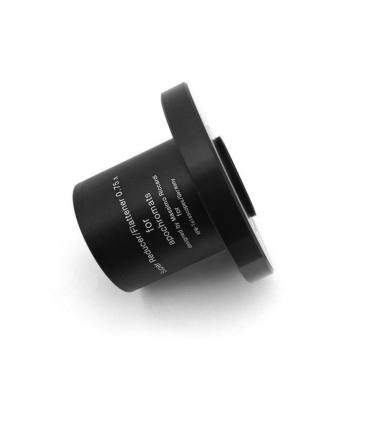

Adapter TS-Optics Reducer Riccardi M63 to Starlight 3.5" Feather Touch focuser
Riccardi M63 Reducer connection to 3.5-inch Starlight Feather Touch focuser
♦ Allows adaptation of the Riccardi 0.75x reducer/corrector to the 3.5" Starlight Feather Touch
♦ Connection thread on camera side: M48x0.75 (2" filter thread) length 4 mm
♦ Telescope side connection thread: external thread M63x1 for the reducer and internal thread for the 3.5" Starlight focuser
♦ Optically effective height: 5mm (this should be subtracted from the recommended distance for the reducer)
Adapter TS Optics Reducer Riccardi M63 to Starlight 3.5" Feather Touch Focuser
The reducer is sunken in the draw tube. The adapter was developed by Teleskop-Service and allows the Riccardi 0.75x reducer/corrector to be adapted to the 3.5" Starlight Feather Touch focuser. The connection is made entirely with screws. This prevents tilting. The reducer is sunk into the draw tube of the Feather Touch, so you can easily focus with any refractor.
| Camera side thread: | M48x0.75; length |
| Telescope side thread: | M63x1 male for the reducer and female thread for the focuser |
| Optical length: | 5 mm (this has to be deducted from the recommended back focus) |
What goes in the box:
♦ TS Optics Adapter
