The adapter allows you to connect the Riccardi Reducer with M63x1 thread to the 2" SC thread.
♦ Telescope side thread: 2" SC thread (internal thread)
♦ Camera side thread: Internal thread M63x1
♦ Optically effective total length: 12.3 mm

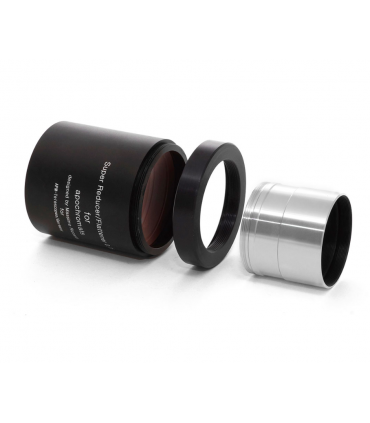

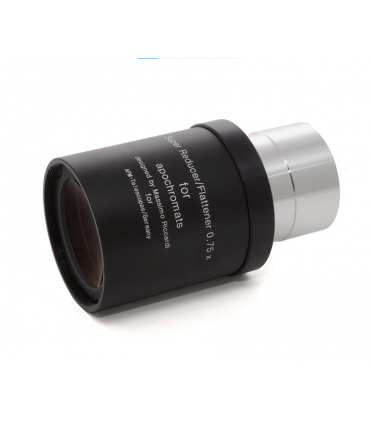

♦ Ideal transition adapter to adapt the Riccardi Reducer to a 2" receptacle in combination with the TS2-SC adapter (see figure 2+3 left)
♦ The adapter allows to connect accessories with external thread M63x1 to telescopes with 2" SC thread (Celestron SC/EHD telescopes)

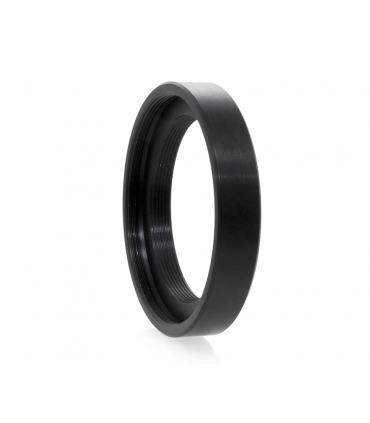

TS Optics connection adapter to the SC 2" thread for the M63x1 thread of the Riccardi Reducer
The adapter allows the well-known Riccardi 0.75x reducer to be connected to the 2" SC thread. The adapter accepts the reducer through its external M63x1 thread on the camera side.
With the optional TSSC-2 adapter, the Riccardi Reducer can also be attached to all 2" focusers. You can find the reducer and adapter in the recommended accessories.
Thread at the telescope side: | 2" SC thread (female) |
Thread at the camera side: | M63x1 (female) |
Optical path: | 12.3 mm |
What goes in the box:
♦ TS Optics Adapter
