Omegon 5x2'' Filter Wheel

Omegon 2" Filter Wheel - Change your filter in seconds

This 2" filter wheel lets you use up to 5 different filters and change them in seconds. Whether it's astrophotography or visual observing, your filters are always ready to go. Use the filter wheel with UHC, OII, CLS and more. filters , for example, which allows you to quickly and easily find the best filter when you look at it visually.

Entrega entre 8 y 10 días laborables
Entrega entre 8 y 10 días laborables

Space for up to 5 well-protected filters

Open the filter wheel and screw up to 5 different filters into it. These can be RGB and luminance filters for astrophotography or broadband and narrowband filters for visual observation. You can also leave your filters mounted on the filter wheel, as they are optimally protected against dust and damage there.

Simply twist to change filter

Imagine that you have a camera mounted on the telescope and you have to switch between different filters as fast as possible. This is only possible with a filter wheel. A handy rotary wheel gives you incredibly fast switching between up to 5 different filters. Each filter position is designated by a number, letting you know which filter is currently in the beam path.

T-2 connector on both sides

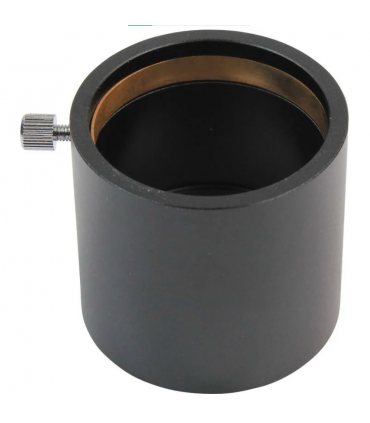

The telescope side of the filter wheel comes with a 2" adapter, allowing you to quickly and easily attach it to your focuser. The filter wheel also has a T-2 thread on the telescope side for other adapters. On the accessory side, you will also find a T-2 and M48 thread, here you can connect your camera or eyepiece connector.

Protected against stray light

The inside of the filter wheel is absolutely light-tight, allowing you to get images without reflections or ghosting.

The advantages in a nutshell:

filter wheel with space for up to five 2" filters

once mounted, filters can be changed in seconds

accepts any standard 2" filter

filter positions indicated by numbers 1-5

2" connector on the telescope side with nosepiece

M48 thread on accessories side



Connection (to the telescope)  2"
Max. number of filter slots (piece) 5
Filter slot 2"
Adjustment Adjusting wheel with click-stop
Camera adaptor yes
Optical length (mm)  26.5 / 29


Motor-powered no


Weight (g) 380
Diameter (mm) 140
Width (mm) 22
Type Filters
Type of build Filter wheel
