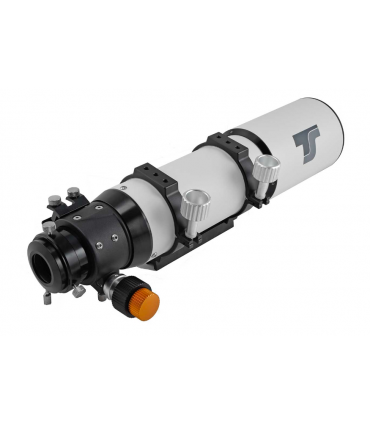

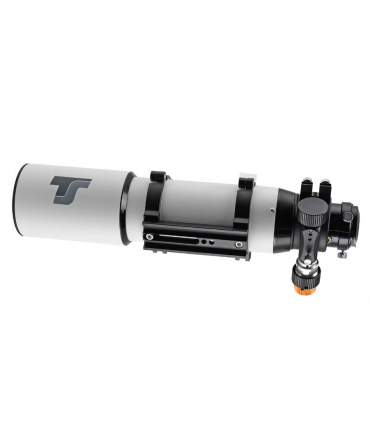

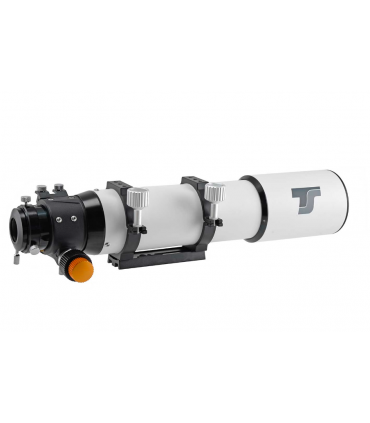

TS-Optics ED APO 80mm f/7 Refractor with 2.5" R&P Focuser

TS Premium 80mm f7 ED Apo Refractor 560mm Focal Length Telescope with Enhanced Imaging through ED Lens and 2.5" Rack and Pinion Focuser for Astrophotography and Observation

♦ Premium 80mm f/7.0 ED 2 element lens with enhanced color correction and wide aperture - Glass from Ohara (Japan)

♦ Focal length 560mm

♦ Excellent mechanical workmanship with CNC tube, CNC tube rings and temperature compensated adjustable lens mount

♦ 2.5" RPA rack and pinion focuser with micro reduction - one of the best focusers in the TS range for high payload

♦ 2" receptacle, 1.25" adapter and M54x0.75 internal thread available for retrofits

♦ Very good astrophotography correctors and image field reducers available as an option

♦ Dovetail bar - GP/EQ5 level included

♦ Finder shoe mounts to accommodate finder scopes and guide scopes

€483.47
receive it in usually 7 to 9 working days
Reference:
TSED80F7
Description

TS-Optics 80mm F/7 ED APO Refractor for Astrophotography and Observation

Teleskop-Service's compact 80mm F/7 Extra-Low Dispersion ED Refractor is an easily transportable "complete telescope" for observing and astrophotography. Well-corrected optics offer a nearly colorless image thanks to the moderate aperture ratio and built-in ED glass. Use the APO refractor for astrophotography or impressive observations. The good optics, the "photo-friendly" 2.5" focuser and the good workmanship guarantee joy and success and wonderful experiences under the starry sky.

The advantages of the TS 80mm f7 ED refractor:

♦ very well corrected ED optics - adjustable

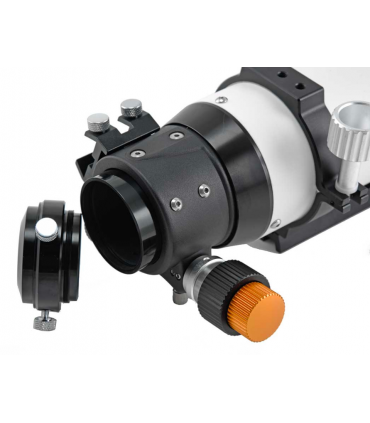

♦ Stable and precise 2.5" focuser - ball bearing drive tube - rack and pinion adjustment

♦ 2" bushing with reduction to 1.25" with compression ring and photo additional thread M54x0.75 for threaded connections

♦ Robust tube construction with fixed dew cap and CNC tube rings guaranteeing the best mechanical stability

The Duplex ED lens:

The handcrafted lens is in an adjustable, temperature compensated mount. It is a dual lens with an ED element for good chromatic aberration correction. We use the best possible manufacturer's multi-coating on every glass-to-air surface for optimal contrast.

The TS 80mm f/7 ED refractor is ideal for astrophotography:

The precise focuser and high-speed optics make the 80mm ED Refractor a good telescope for astrophotography. To correct the field of the image, we recommend the following correctors, which are also linked in the accessories area.

TSRED80 - Focal length reduction and field correction

This corrector is calculated for the 80mm f/7 ED and shortens the focal length to 448mm. Light intensity increases at f/5.6. With a 55mm working distance from the T2 threaded connection, you can easily connect all common DSLR cameras and also CCD cameras. We recommend the TSRED80 for DSLR cameras with APS-C sensors and for CCD cameras with sensors up to 30mm in diameter.

WiflatM48 - 2" field correction without changing the focal length... Excellent illumination - also suitable for larger sensors - a field of approx. 40 mm diameter is 100% illuminated. Working distance from the corrector's M48 thread it is 55mm.

Especificaciones:

Construction type: ED refractor
Aperture: 70 mm
Focal length: 420 mm
Focal ratio: f/6
Resolution: 1.65"
Limit value: 11.0 mag
Coating: Fully multi-coated
Objective: Air-spaced 2-element ED objective - adjustable
Weight: 2.2 kg
Transport length: 300 mm with dew cap inserted
Focuser: RAP rack and pinion focuser - ball bearing
Speed reduction: 1/10 speed reduction
Drawtube travel: 81 mm
Telescope back focus: 130 mm
Connection to mounts and photo tripods: flexible support plate with photo tripod connection
Tube diameter: 76 mm
Diameter dew shield: 88.5 mm
Product Details
TSED80F7
