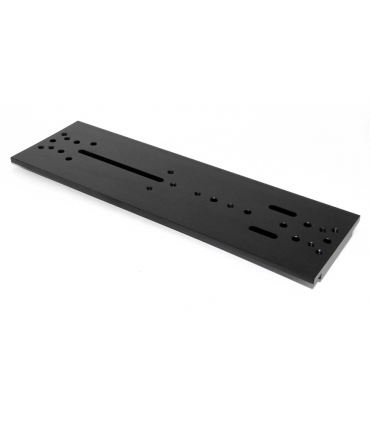

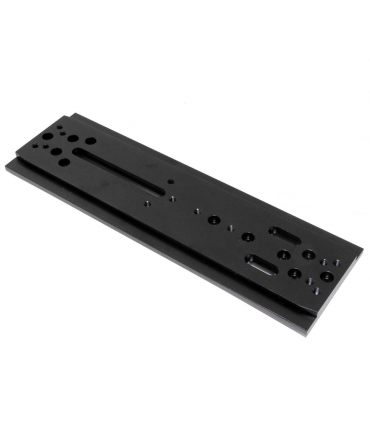

Versatile dovetail bar with slotted holes for Losmandy Level dovetail clamps - with a flat surface
Prism rail is new and unused - full warranty - while stocks last
♦ Length: 330mm
♦ Slotted and countersunk holes suitable for M6 and 1/4" screws
♦ One 100mm long slot - in the middle
♦ Two slotted holes with a length of 25 mm and a distance of 38 mm from each other
♦ Eleven countersunk holes for 1/4" and M6 socket head screws
♦ Thirteen M6 internal threads: for individual fixing, eg of dovetail clamps for own construction of a double fixing
♦ Chamfering on rail ends allows for easier insertion into a dovetail clamp
TS-Optics Losmandy Style Dovetail Bar with Flat Contact Surface
The dovetail bar is very solid and supports even heavy telescopes without vibration. Many auxiliary holes and threads allow versatile use. But the L-UP13 also convinces with other interesting equipment features.
♦ Chamfered dovetail bar ends for easy insertion into dovetail clamps;
♦ Solid 12.5mm thick solid aluminum material - prevents vibrations;
♦ No sharp edges to cut yourself on;
♦ Extra wide support plate with a width of 101.5 mm for a solid hold of pipe rings
The L-UP13 Dovetail Bar fits the following mounts, among others:
♦ All Losmandy style quick release mounts;
♦ Losmandy mounts: GM8, G-11, Titan...
♦ Celestron mounts: CGEM, CGEM-DX, CGE Pro...
♦ Skywatcher mounts: NEQ6, AZ-EQ6, EQ8...
♦ iOptron CEM60, CEM70

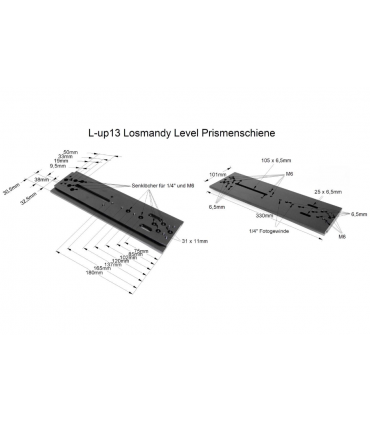

Especificaciones:
Suitable for: | Losmandy style |
Length: | 330 mm |
Lower width: | 75 mm |
Thickness: | 12.5 mm |
Weight: | 0.9 kg |
Slotted hole 1: | centric, 100 mm |
Slotted holes 2+3: | 19 mm from center line - 25 mm long |
Bores: | 5x centric, 2 pairs with 22.5 mm space, 1 pair with 38 mm space |
M6 thread bores: | 3x centric, 2 pairs with 35 mm space, 3 pairs with 24 mm space |
