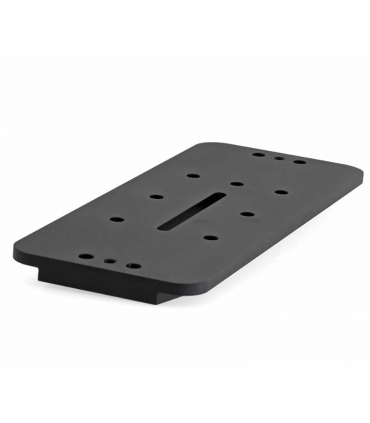

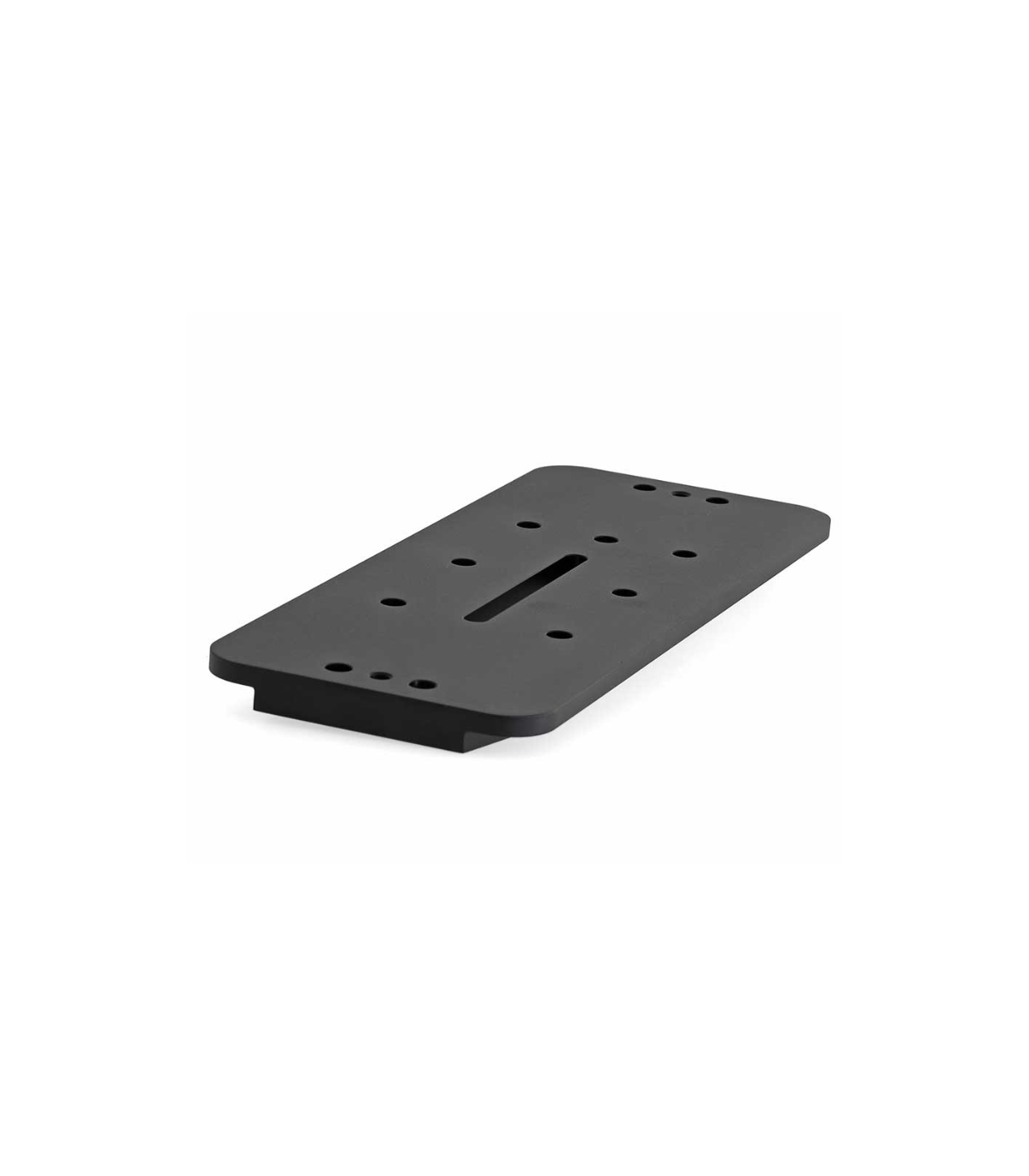

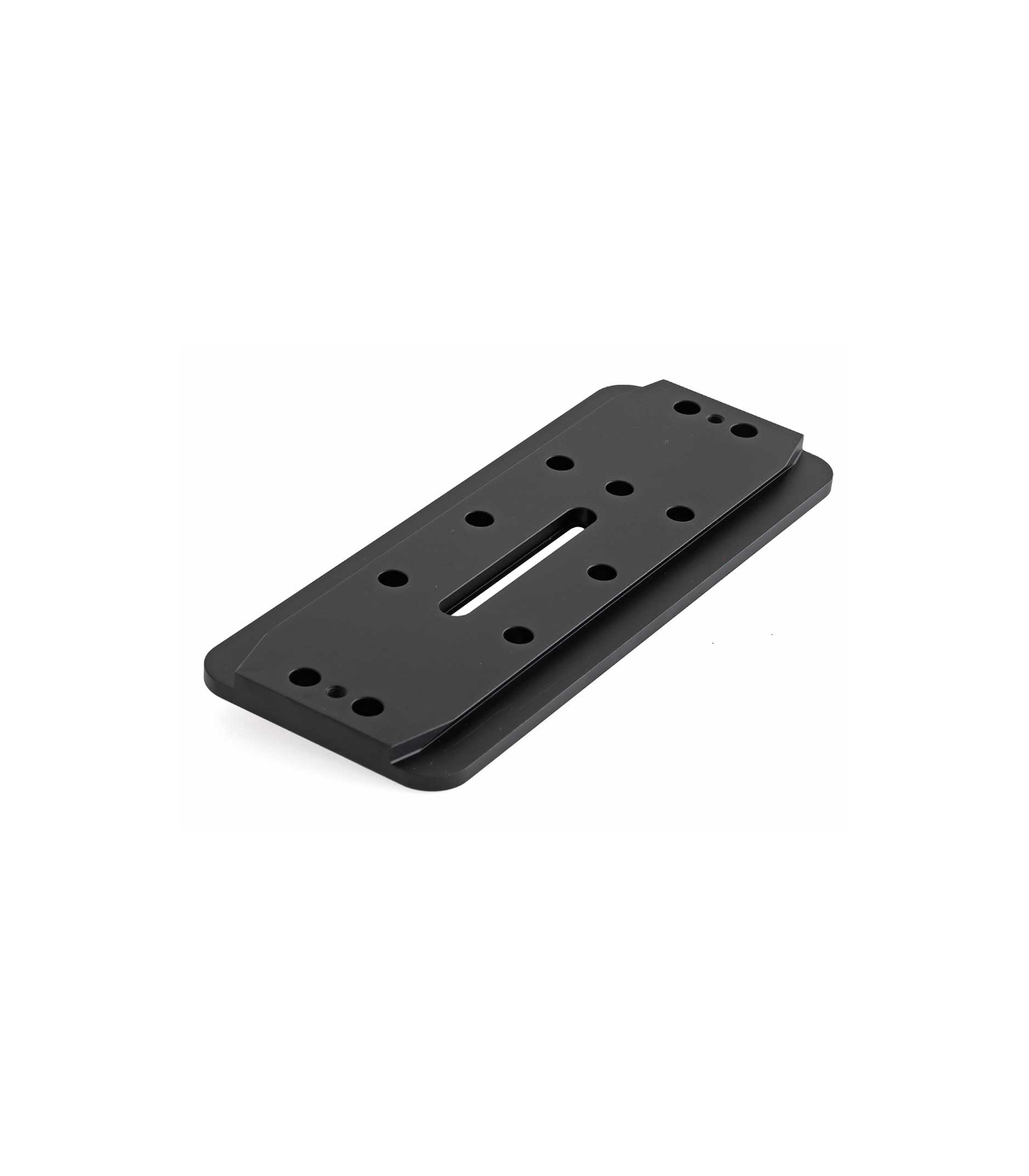

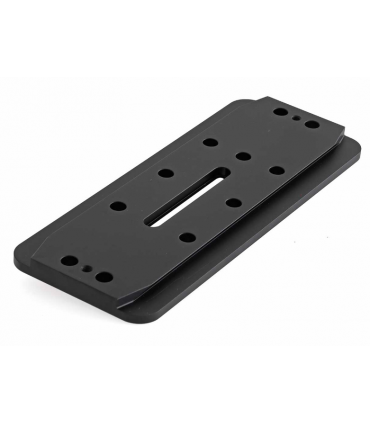

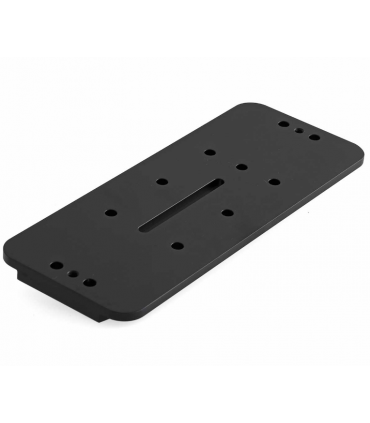

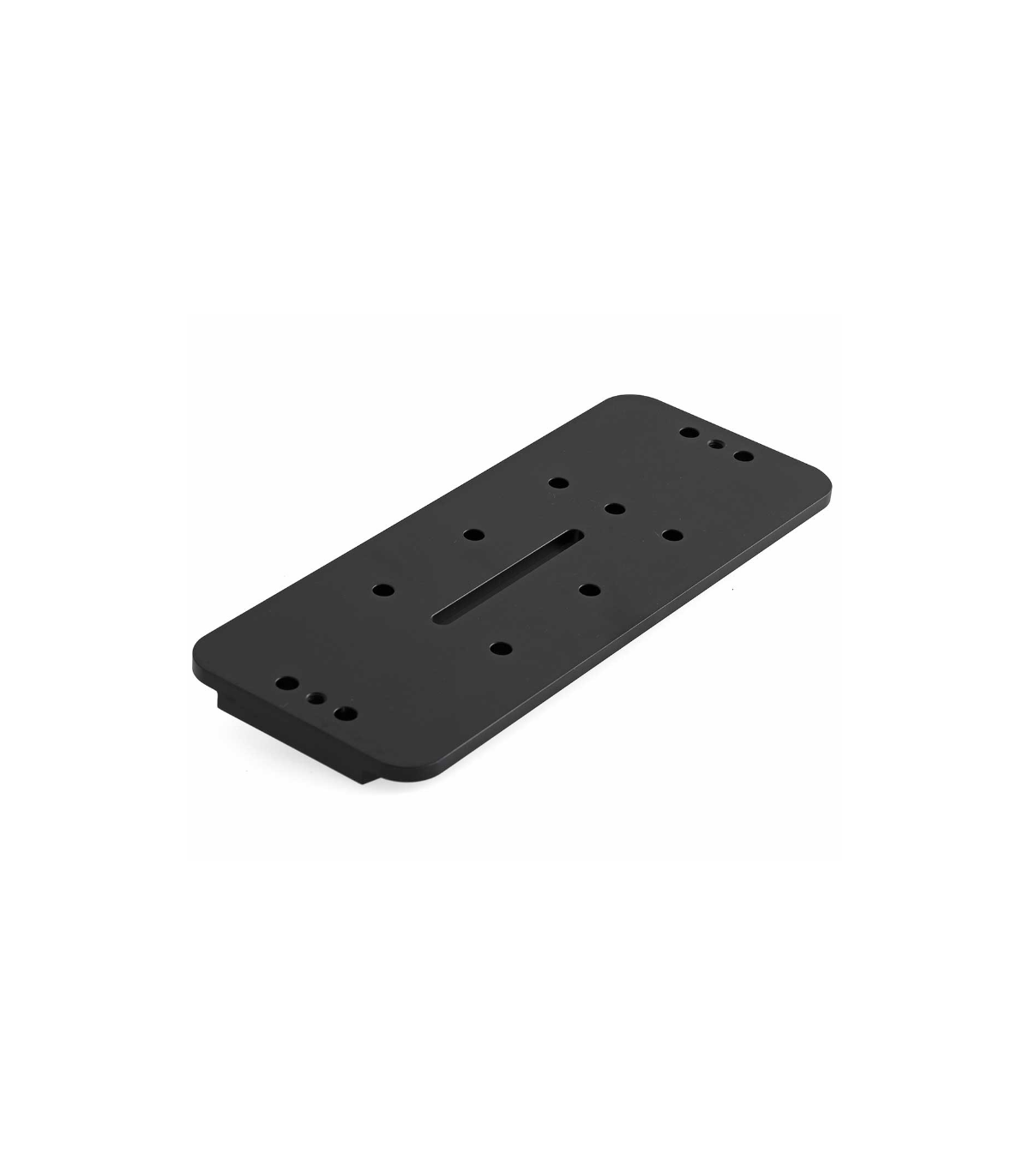

TS-Optics Losmandy Level dovetail bar - length 254 mm - flat mount
Versatile dovetail bar with slot and countersunk holes for Losmandy Level dovetail clamps - with one flat surface
♦ Length: 254mm

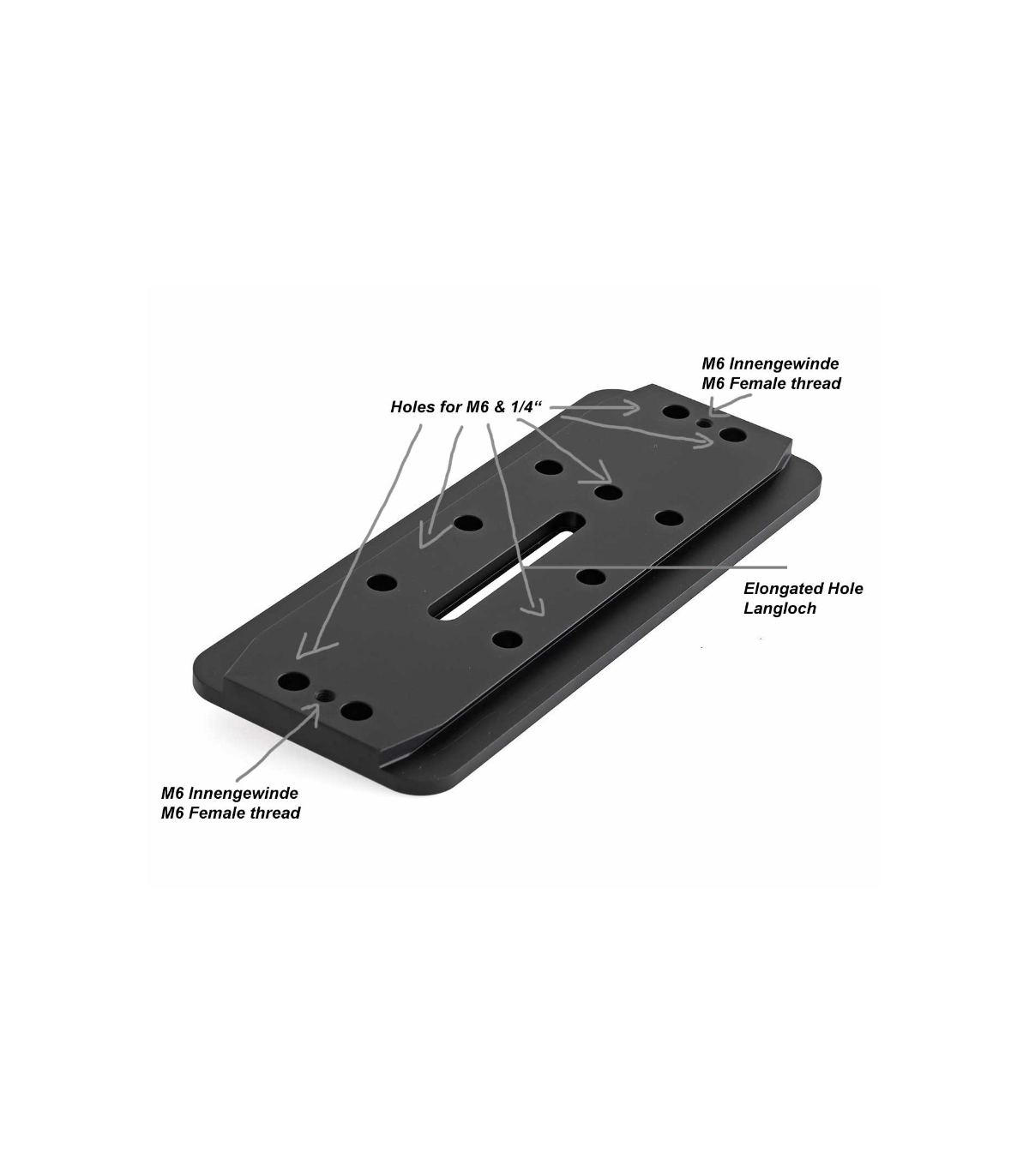

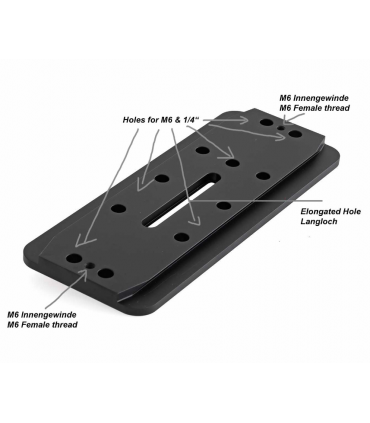

♦ Slotted and countersunk holes suitable for M6 and 1/4" screws
♦ One 80mm long slot - in the middle
♦ Six holes for 1/4" and M6 socket head screws - screws are countersunk
♦ Two holes each for 1/4" and M6 Allen screws at rail ends 25mm or 12.5mm off center
♦ Two M6 internal threads at the ends of the rail - in the middle
♦ Chamfering on rail ends allows for easier insertion into a dovetail clamp
€54.00
(VAT incl.)
Reference:
PSL2
TS-Optics Losmandy Style Dovetail Bar with Flat Contact Surface
The dovetail bar is very solid and supports even heavy telescopes without vibration. Many auxiliary holes and threads allow versatile use. But this rail also convinces with other interesting equipment features.
♦ Chamfered dovetail bar ends for easy insertion into dovetail clamps;
♦ Solid 12.5mm thick solid aluminum material - prevents vibrations;
♦ No sharp edges to cut yourself on;
♦ Extra wide support plate with a width of 102 mm for a solid hold of the pipe rings
The PSL2 dovetail bar fits, among others, the following brackets:
♦ All Losmandy style quick release mounts;
♦ Losmandy mounts: GM8, G-11, Titan...
♦ Celestron mounts: CGEM, CGEM-DX, CGE Pro...
♦ Skywatcher mounts: NEQ6, AZ-EQ6, EQ8...
♦ iOptron CEM60, CEM70
Especificaciones:
| Suitable for: | Losmandy Level quick coupling |
| Length: | 254 mm |
| Width at dovetail: | 75 mm |
| Thickness: | 12,5 mm |
| Weight: | 750 g |
| Oblong hole: | 1x centric - length 80 mm |
| Countersunk holes: | 1x centrically, 3 pairs at a distance of 51 mm from each other, 2 pairs at a distance of 25 mm from each other at the ends of the bar |
| M6 female thread: | 2x centrically at the ends of the rail - distance 230mm to each other |
