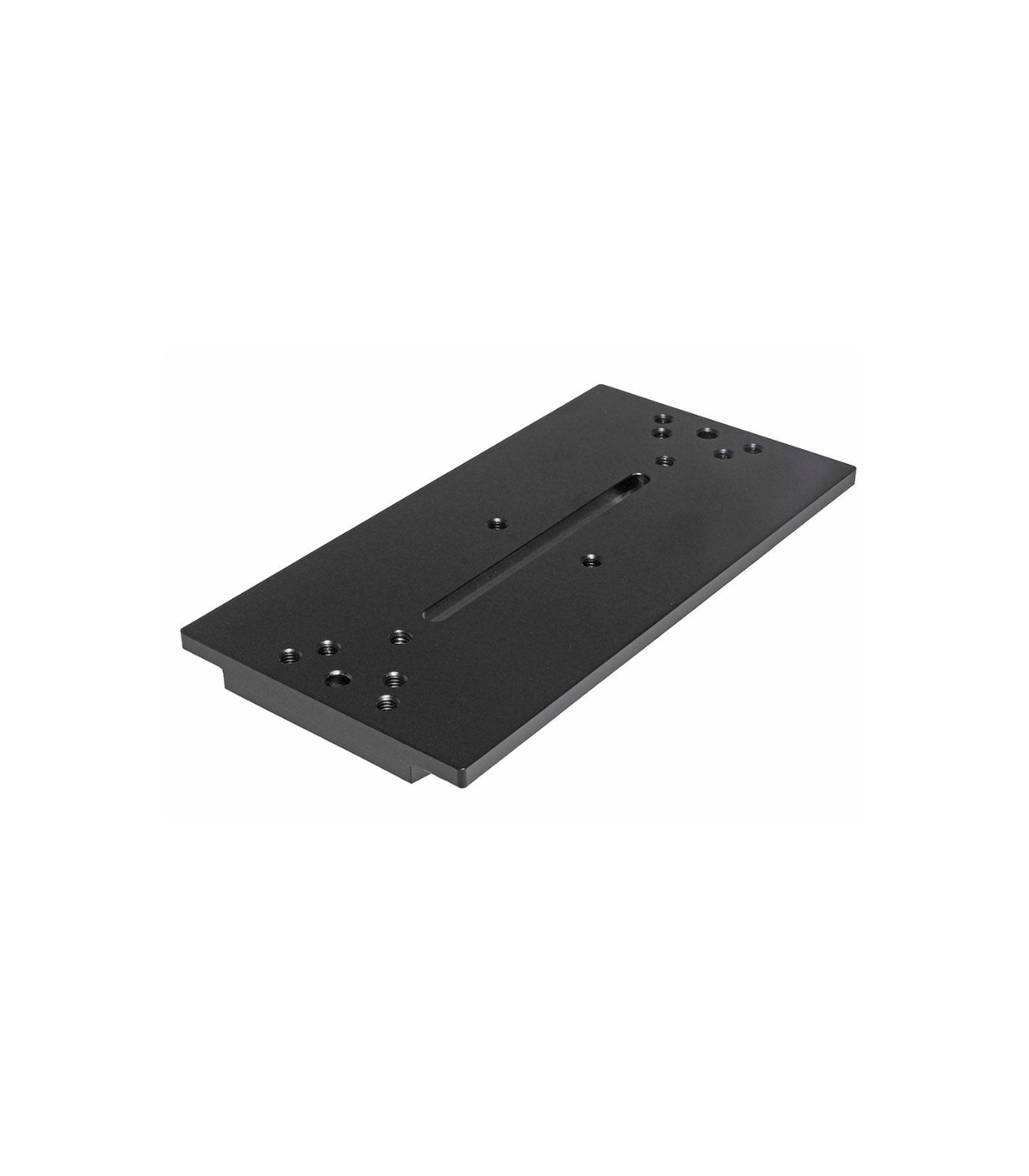

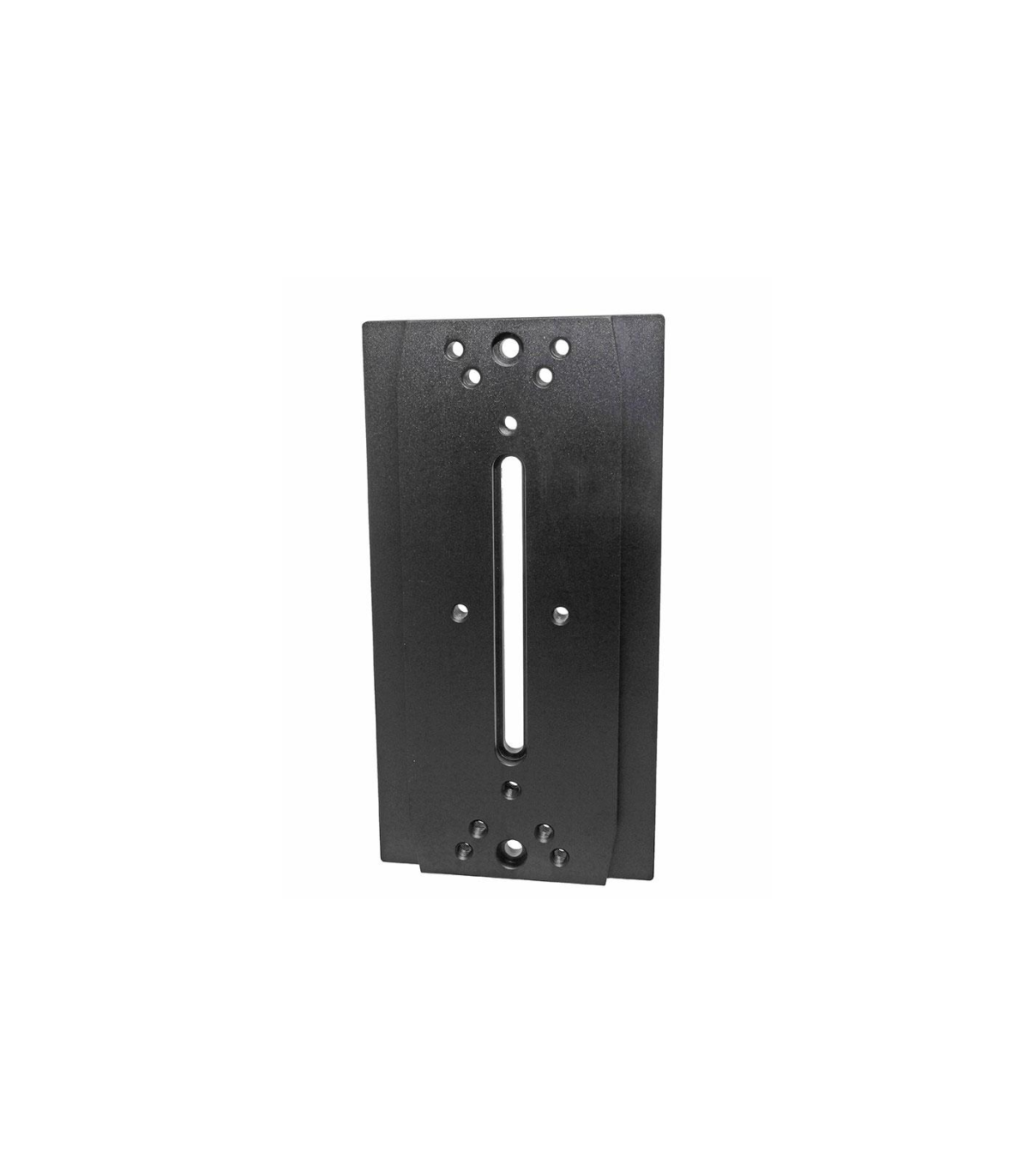

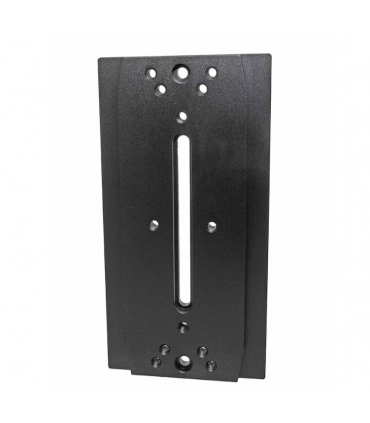

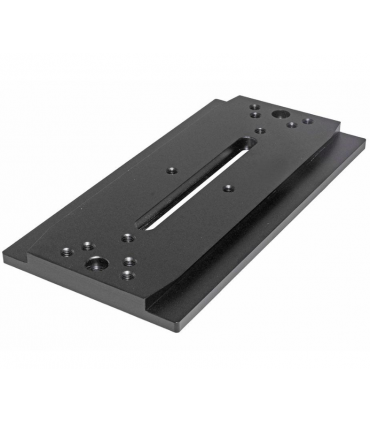

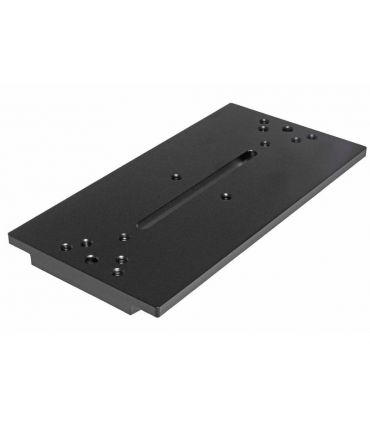

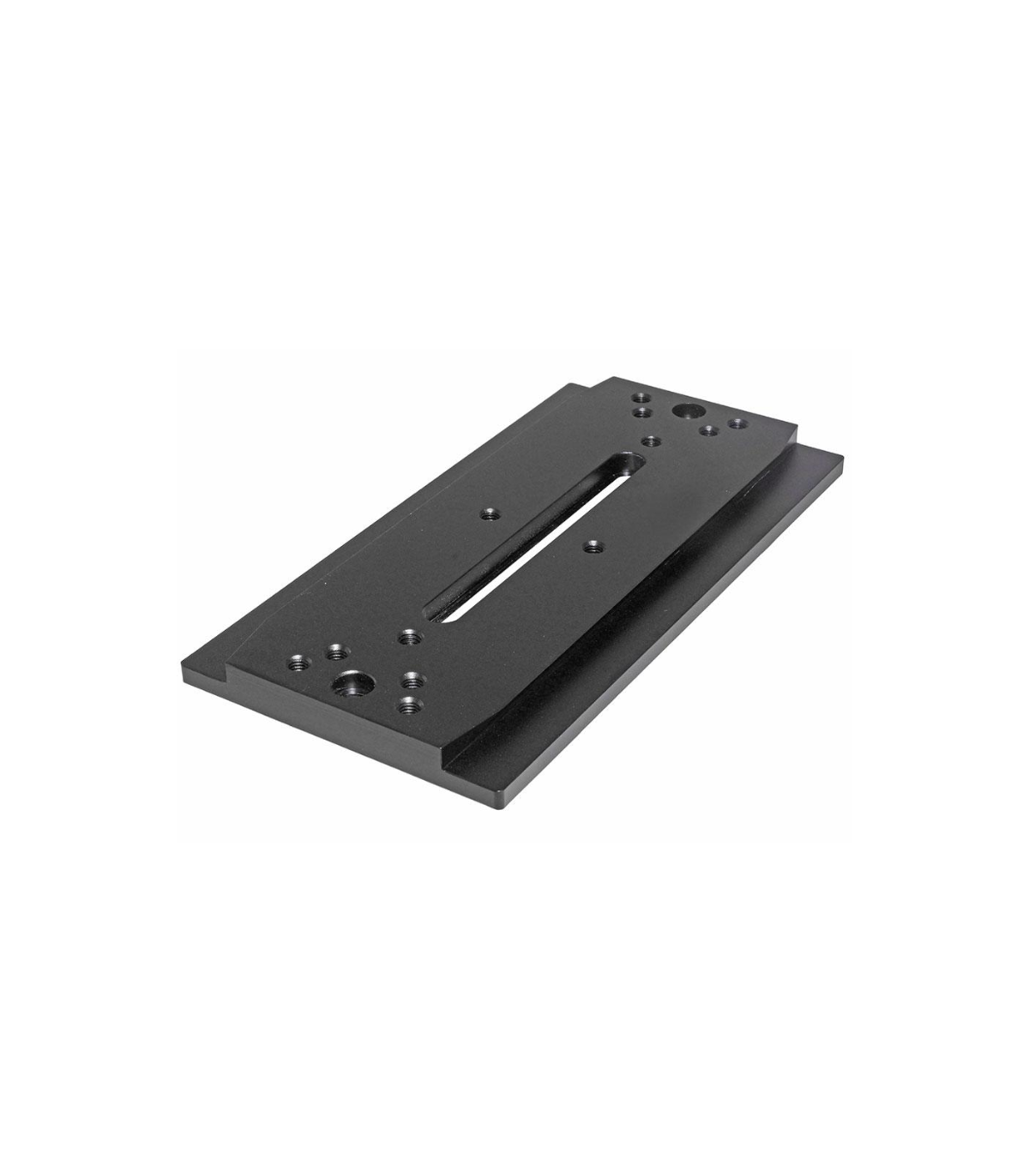

TS-Optics Losmandy Level dovetail bar - length 200 mm - flat mount
Versatile short dovetail bar with slotted holes for Losmandy level dovetail clamps - with a flat surface

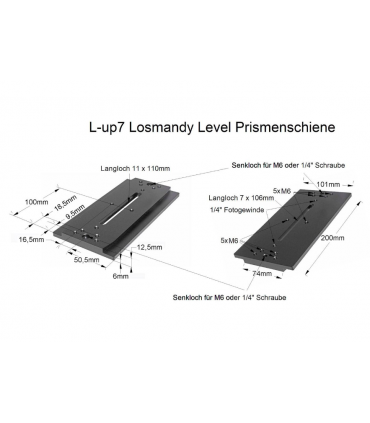

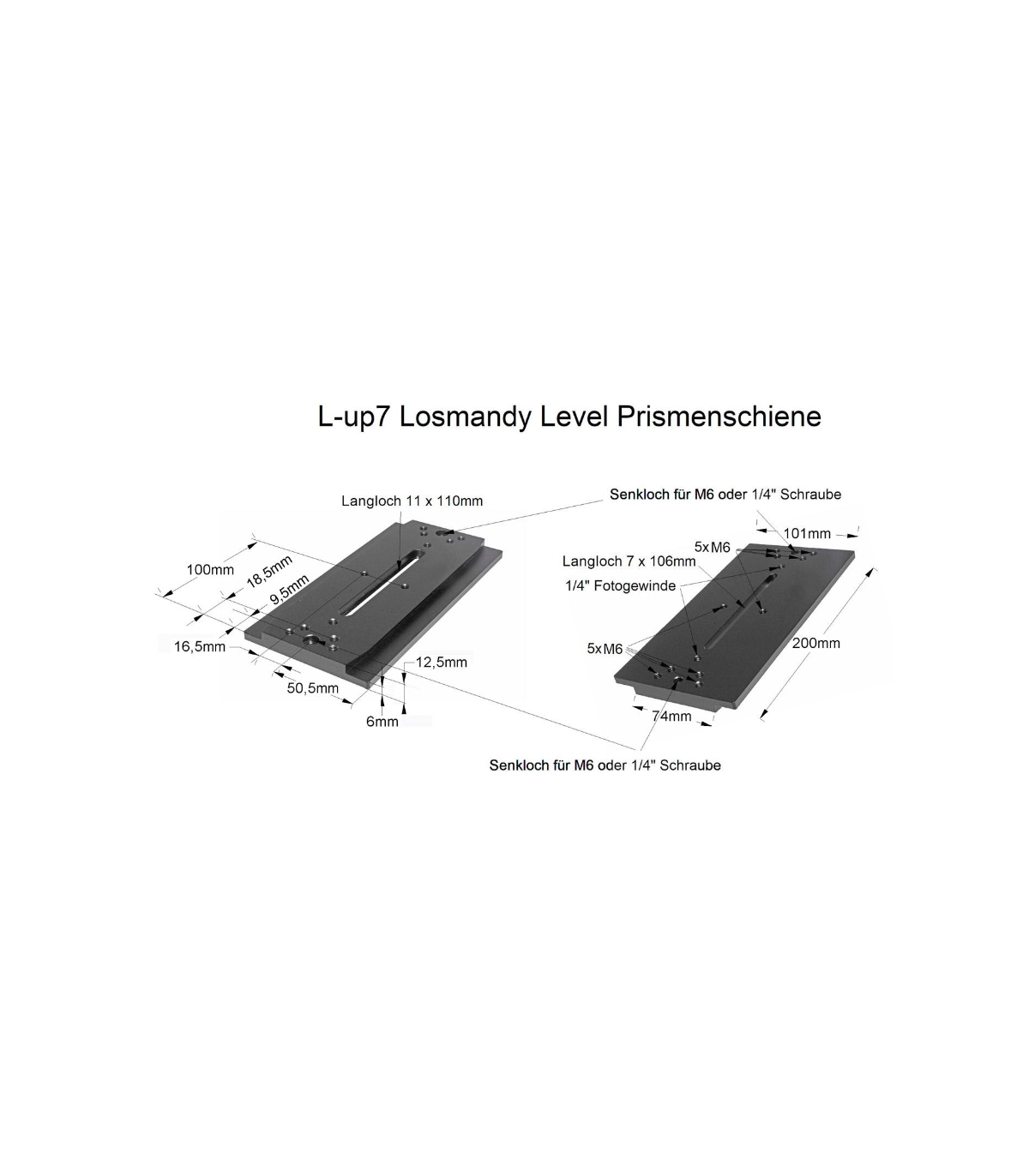

♦ Length: 200mm
♦ Slotted and countersunk holes suitable for M6 and 1/4" screws
♦ One 100mm long slot - in the center - suitable for 1/4" and M6 socket head cap screws
♦ 2 countersunk holes for 1/4" and M6 socket head cap screws 90mm on center
♦ Two 1/4" center internal threads, each 65mm on center
♦ 10x M6 female thread
♦ Chamfering on rail ends allows for easier insertion into a dovetail clamp
€59.00
(VAT incl.)
Reference:
L-UP7
TS Optics Losmandy Level prism rail with flat contact surface
The dovetail bar is very solid and supports even heavy telescopes without vibration. It is especially suitable for shorter telescopes such as a fast APO refractor. Many auxiliary holes and threads allow versatile use. But the L-UP7 also convinces with other interesting equipment features.
♦ Chamfered dovetail bar ends for easy insertion into dovetail clamps;
♦ Solid 12.5mm thick solid aluminum material - prevents vibrations;
♦ No sharp edges to cut yourself on;
♦ Extra wide support plate with a width of 101.5 mm for solid clamping of tube rings
The L-UP7 Dovetail Bar fits the following mounts, among others:
♦ All Losmandy style quick release mounts;
♦ Losmandy mounts: GM8, G-11, Titan...
♦ Celestron mounts: CGEM, CGX...
♦ Skywatcher mounts: EQ6, AZ-EQ6, EQ8...
Especificaciones:
| Suitable for: | Losmandy style |
| Length: | 200 mm |
| Lower width: | 75 mm |
| Thickness: | 12.5 mm |
| Weight: | 0.7 kg |
| Slotted hole: | centric, 100 mm |
