Photo screw and tripod screw with 1/4" tripod thread and coin slot
♦ Thread length: 10.3mm notched at head end
♦ Total length: 18.3 mm with head
♦ Head diameter: 12.5mm
♦ Thread: 1/4" photo thread - camera thread

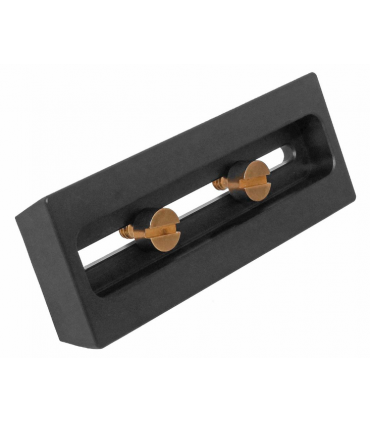

♦ Useful accessory for the TS-Optics PSFOTODEL dovetail if the accessory is to be fastened with 2 screws (left image)

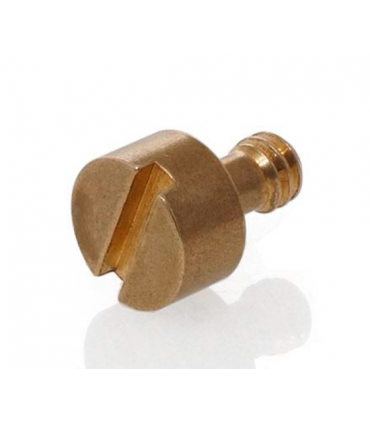

TS-Optics brass photo screw with coin slot
The screw has a 1/4" tripod thread (6.35mm thread diameter). This thread corresponds to the internal thread that connects to almost all cameras, spotting scopes or many spotting scopes.
Therefore, the screw is ideal for self-build tripod solutions and camera mounting systems.
The screw has a wide slot, suitable for suitable screwdrivers. If you don't have a screwdriver handy, a coin will fit in the slot.
The screw also fits photographic dovetail rods such as the PSFOTODel from TS-Optics. You can use it to fix the spotting scope or lens with 2 screws to prevent the optics from twisting.
|Length of thread:||10.3 mm with thread undercut (partially unthreaded shank) below the head|
|Total length:||18.3 mm with head|
|Head diameter:||12.5 mm|
|Thread:||1/4" photo thread - camera thread|
