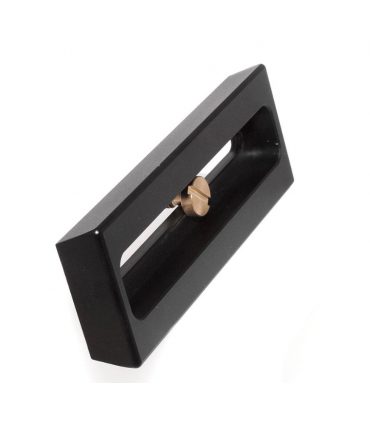

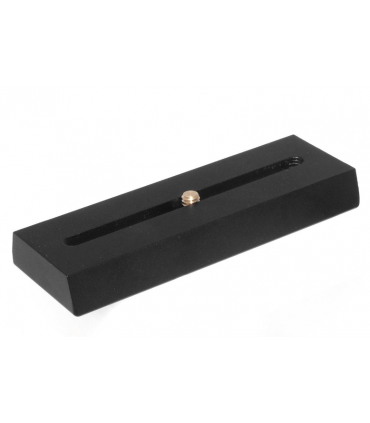

TS-Optics Level GP/EQ5 photo dovetail bar with slot and photo screw
Prism rail for GP-style quick-attach mounts for attaching cameras, telescopes, or binoculars via a 1/4" photo tripod thread
The stable dovetail bar allows the adaptation of DSLR cameras, spotting scopes, telephoto lenses, etc. to mounts with GP style quick couplers.

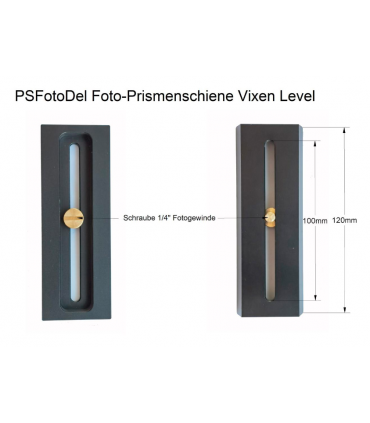

♦ Prism Rail Length - 120mm
♦ Slot length - 100mm
♦ Elongated hole accepts 1/4" photo tripod screws and M6 socket head screws. Screws are countersunk.
♦ 1/4" slotted photo screw included; suitable for many small apos with an L-rail
♦ Dovetail bar is made of solid aluminum for maximum stability
The PSFOTODEL stable prism rail from TS Optics allows you to attach heavy accessories such as spotting scopes, cameras or telephoto lenses to your azimuth or equatorial mount.
Due to the long hole (100 mm) with milling, the dovetail bar can be used particularly flexibly. For example, you can join two tube rings close together; this is very useful for very short telescopes.
Many spotting scopes or spotting scopes have a universal mounting plate. At the base, these instruments have 2-3 internal threads in a row. You can use full-inch threads through the longitudinal hole to prevent the scope from twisting, as it would if it were attached with a single screw.
Due to internal milling, the rail is flat at the bottom. The longitudinal milling allows the inclusion of 1/4" screws or M6 screws. The normal Allen screws are also fully countersunk. A 1/4" screw is included in the scope of delivery. The screw is equipped with a slot for screwdrivers or small coins.
The dovetail bar fits the following mounts, among others:
♦ Fox: GP2, GPD2, Sphinx...
♦ Celestron: Advanced Mount, Avanza VX...
♦ Skywatcher: EQ3, EQ5, HEQ5...
♦ Prism clamps: Prism clampS, DX... and similar
Especificaciones:
| Length: | 120 mm |
| Height: | 15 mm |
| Upper width: | 36 mm |
| Lower width: | 43.5 mm |
| Length of slotted hole: | 100 mm |
| Width of slotted hole: | 20 mm |
| Depth of slottte hole: | 15 mm |
| Useful thread length: | 5 mm |
| Weight: | 140 g |
| Fits following mounts: | all mounts with GP level |
