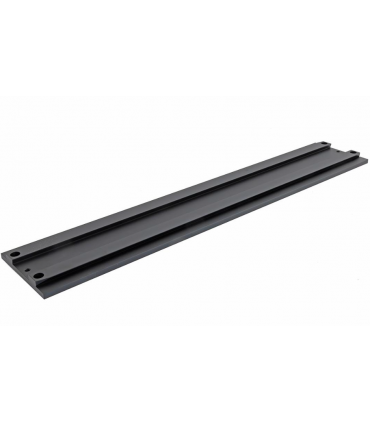

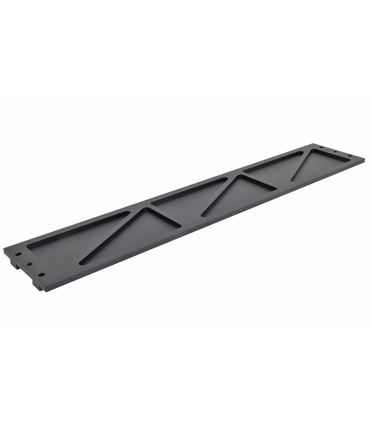

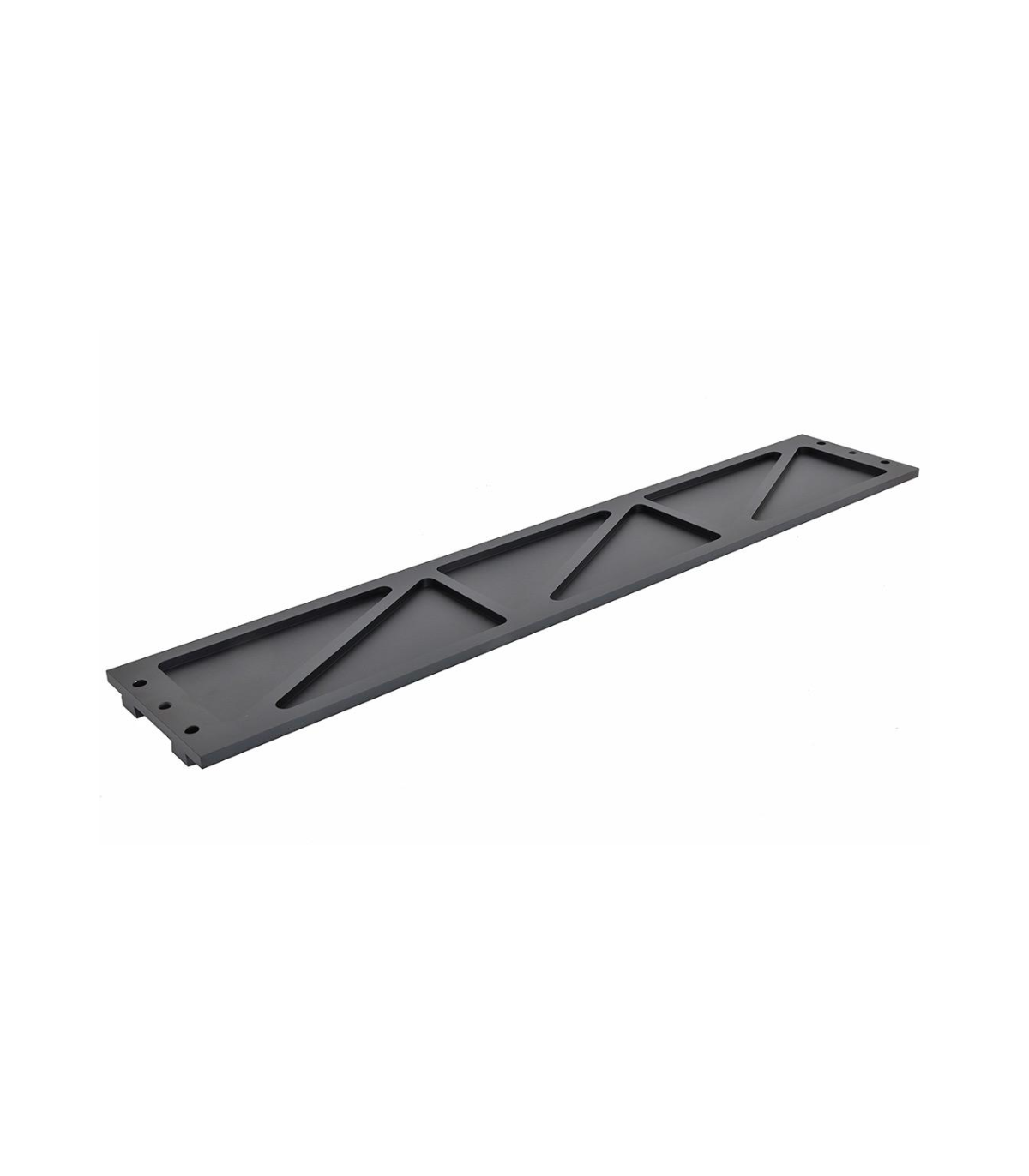

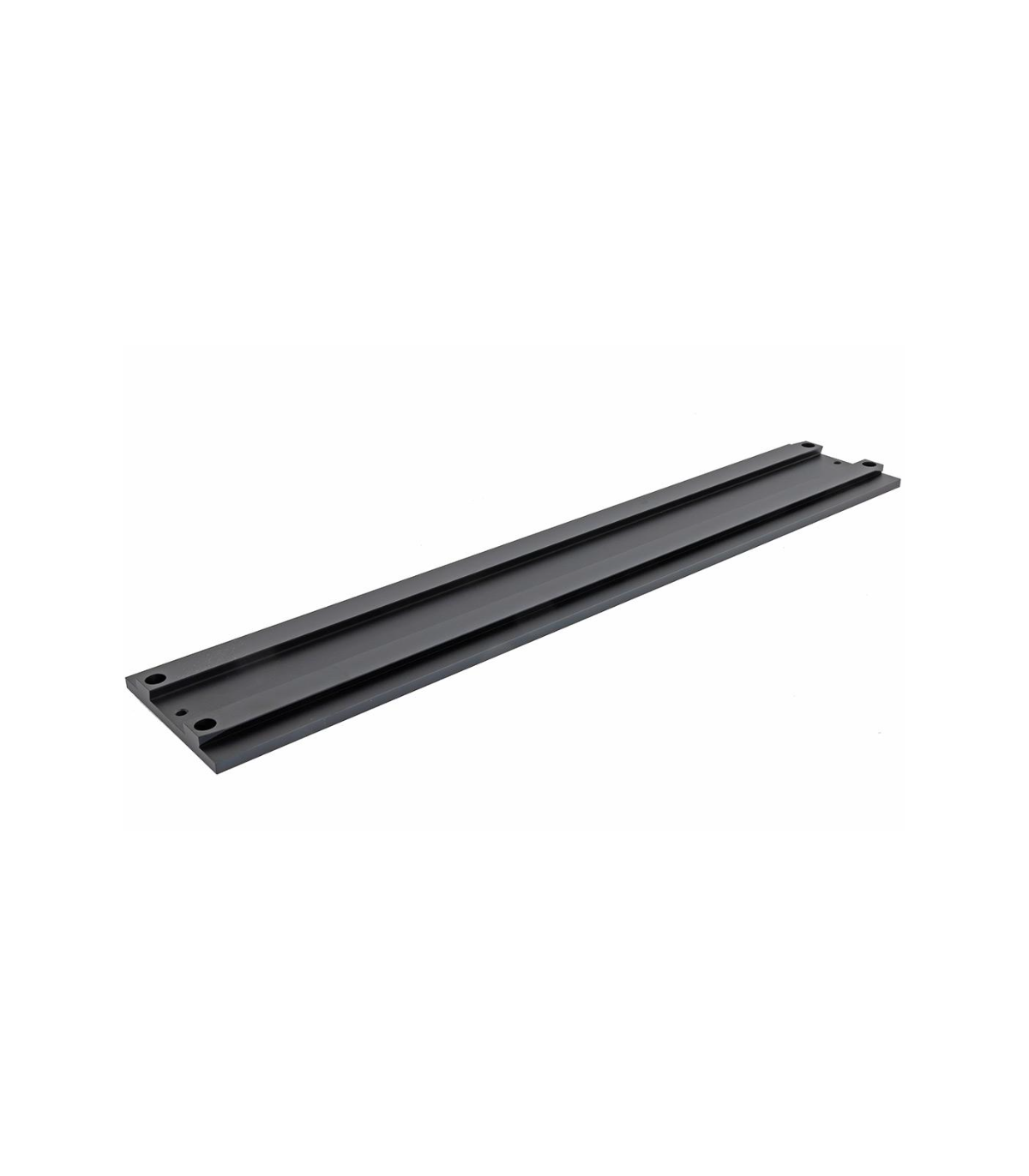

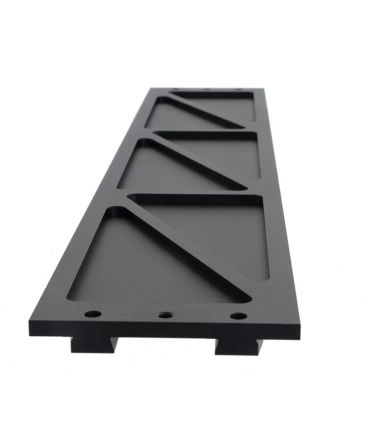

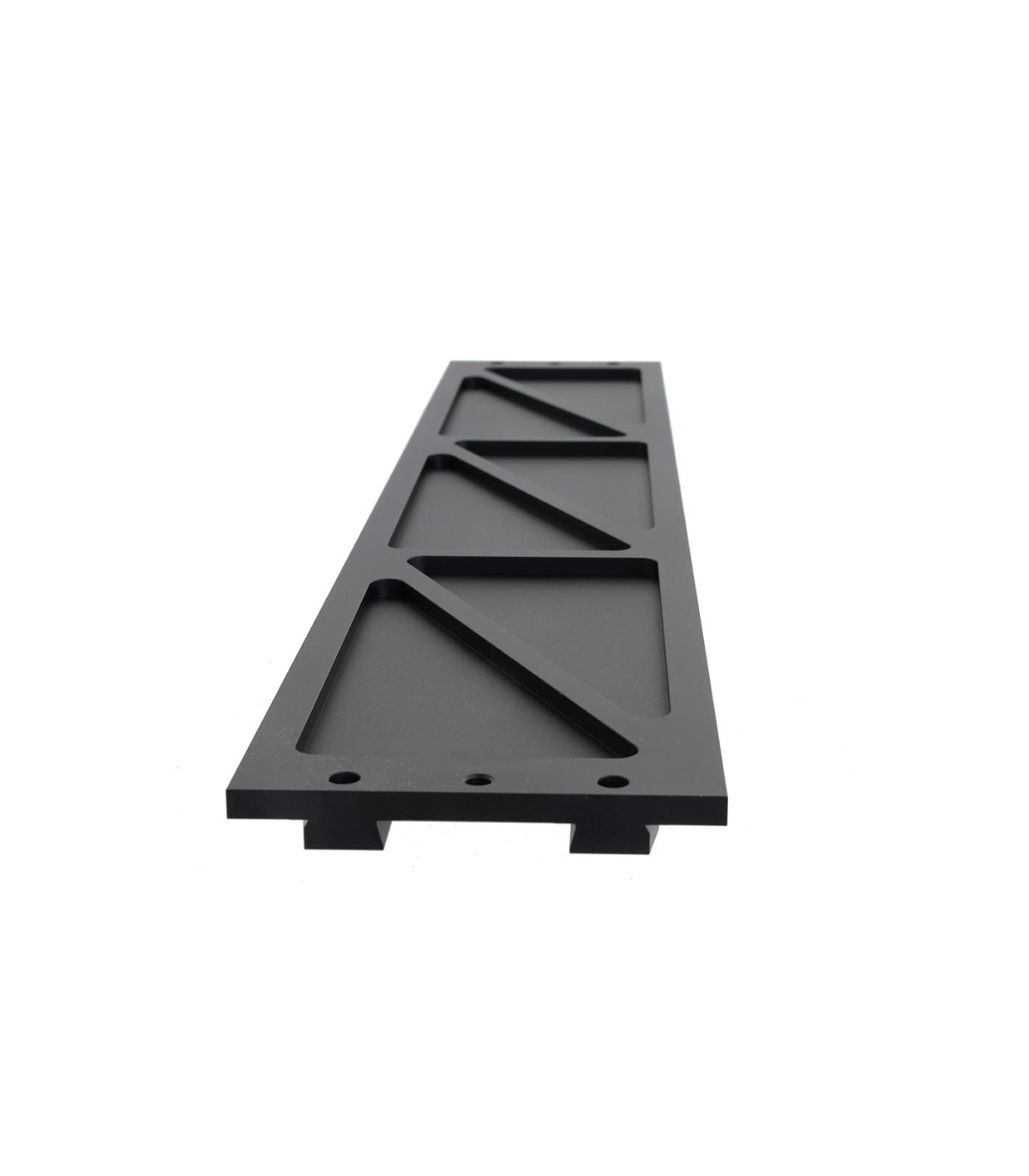

TS-Optics Dovetail Bar - Losmandy-Level, Flat Mount, Length 535mm
Versatile dovetail bar for attaching the telescope to mounts with Losmandy-style quick-release couplings and building a dual attachment
♦ Rail length: 535mm
♦ Maximum rigidity thanks to profile construction
♦ At each end, an internal M6 thread in the middle and two countersunk holes for M6 and 1/4" (for cylinder head screws) at a distance of 55 mm from each other
€119.00
(VAT incl.)
Reference:
TSPS535
TS Optics Losmandy Style Dovetail Rod - Long
This TS dovetail bar allows you to securely attach your telescope, spotting scope, etc. to mounts with Losmandy style quick couplers and Losmandy style dovetail clamps.
The rail is ideal for self-construction, where you can drill your own holes for the desired pipe clamps.
The following through holes and threads are available:
♦ 2x internal thread M6 - distance 521 mm from each other
♦ 4 countersunk holes for M6 and 1/4" Allen screws - distance 521 mm and 55 mm apart per pair
Especificaciones:
| Length: | 535 mm |
| Height: | 13 mm |
| Material: | aluminum black anodized |
