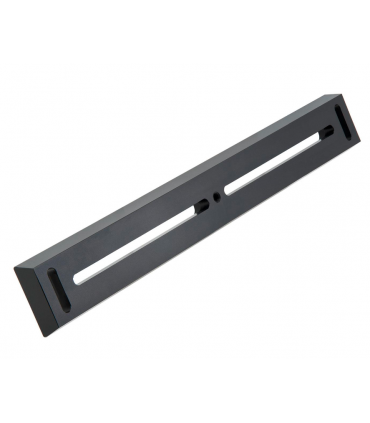

TS-Optics Stable GP Style Dovetail Bar L- 328mm with Slotted Holes

GP style solid dovetail bar with slotted holes for M6 and 1/4" socket head screws and 1/4" photo tripod thread - length 328mm

♦ Prism rail suitable for Skywatcher EQ3, EQ5, Vixen GP mounts and many others

♦ Length 328mm / Thickness 15mm

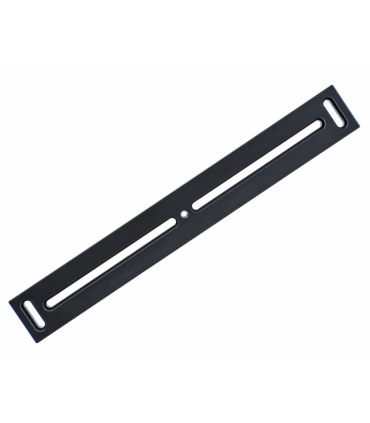

♦ Elongated holes with milling for cylindrical head screws at the bottom of the rail for various adaptations - ideal, for example, to build a double fixation and a parallel fixation

♦ Flat contact surfaces for optimal holding of the telescope

♦ 1/4" tripod thread in the middle: the rail can be attached to photographic tripods

Read moreShow less
Entrega entre 7 y 9 días laborables

TS Optics GP level solid dovetail bar with a length of 328mm

This prism rail is also suitable for heavier telescopes, where single profile rails already start to vibrate. The smooth side profile allows you to balance the telescope well by simply sliding it.

The dovetail bar fits, among other things:

♦ Vixen GP and SX mounts

♦ Skywatcher EQ3 to EQ5 and H-EQ5

♦ various dovetail clamps with Vixen level

♦ Photo tripods (via 1/4" internal thread)

♦ and many more

Ideal accessories for photo tripods:

You can easily attach the rail to your photo tripod, ball head, or tilt head via the 1/4" photo tripod thread in the middle of the rail. You can quickly attach your telescope to the photo tripod for observation, as long as the tripod be stable enough.

With the TSPKM dovetail clamp you can build a dual mount or a parallel mount for astrophotography.

Not only does the dovetail bar match our deluxe dovetail clamp in terms of color, but the stiffness of the connection can hardly be beat.

You can easily attach the TSPKM to the side of the dovetail bar and secure it with the 1/4" allen head. You can find both items in our recommended accessories.

Now you can put your camera on one side and the guide scope on the other side and line everything up parallel.

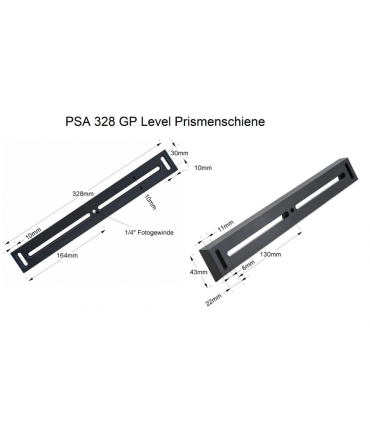

Suitable for: GP level mounts and clamps
Length: 328 mm
Thickness: 15 mm
Material: Hard aluminium, black anodized
2 long bores: suitable for M6 and 1/4" - length 125 mm
2 long bores: at the end of the bar - length 23 mm
Material thickness for the slotted holes: 7.9 mm (important for thread length of the screws)
Female thread: 1/4" female thread - photo thread
