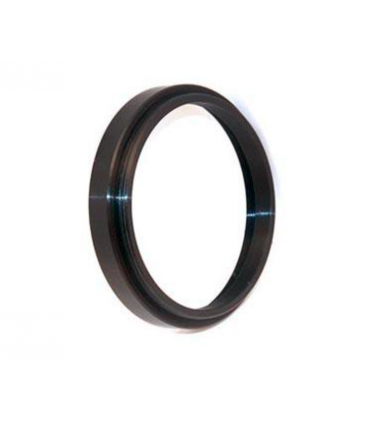

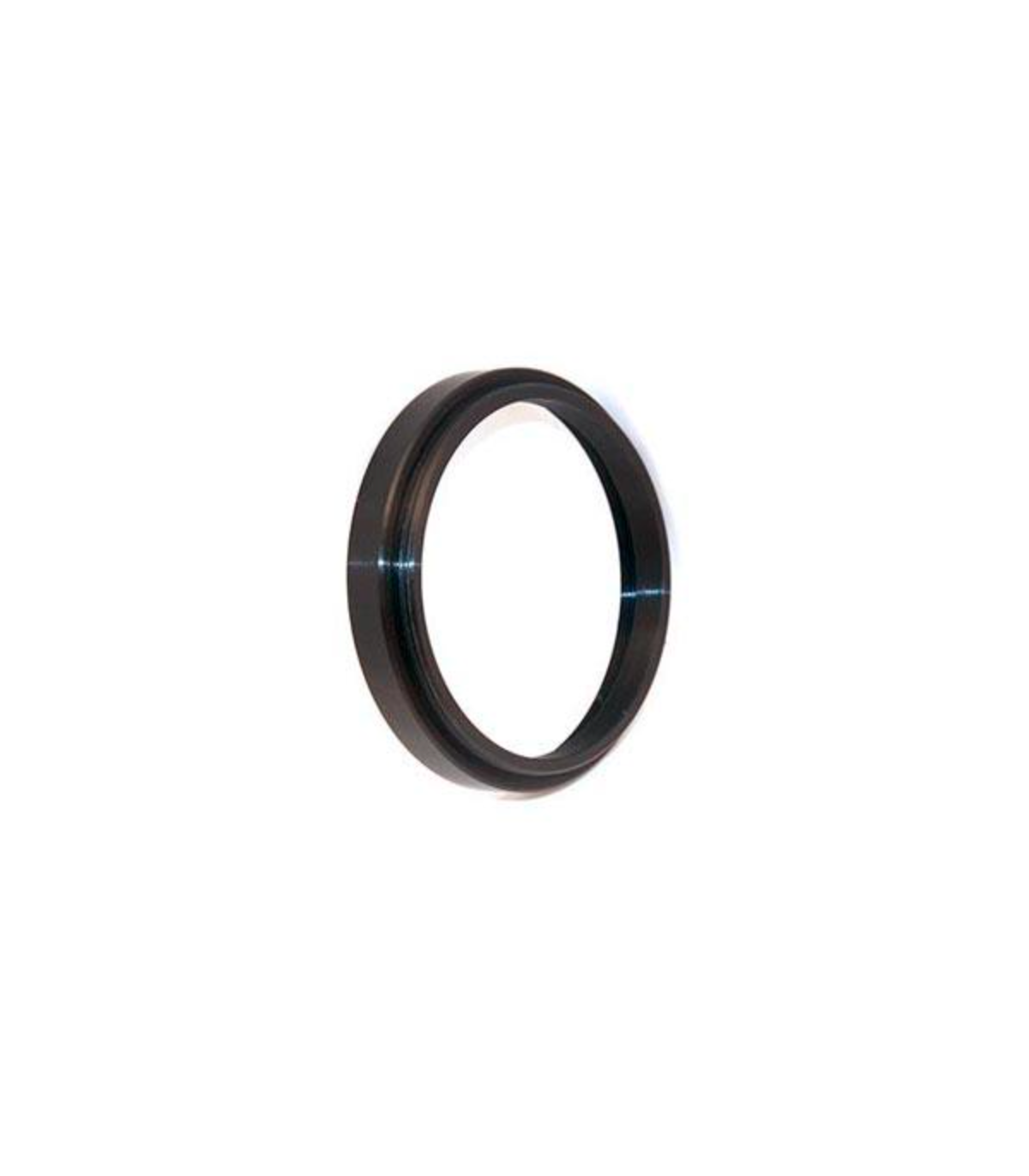

TS-Optics M68 System - 3" Full Format Corrector Adapter to M68 Thread
This adapter allows the connection of M68 adapters or M68 off-axis guides to the corrector.
♦ Connection thread corrector side: suitable for TSFLAT3 and William P-FLAT68 - Internal thread M80x1 (female)
♦ Connection thread on camera side: External thread M68x1
♦ 12.5mm total effective length
€239.76
(VAT incl.)
Entrega entre 8 y 10 días laborables
Reference:
TSFlat3-M68a
Adapter to M68 for the flattener TS PHOTOLINE 3"
The TS PHOTOLINE full format corrector offers excellent field flattening, even for larger sensors. This short adapter allows accessories with a ZEISS M68x1 level connection thread to be adapted to the corrector. For example, you can directly connect the large TS off-axis guide with an M68 thread on both sides.
The adapter fits directly into the TS TSFLAT3 full-frame apo corrector and the William P-Flat68 full-frame corrector. The adapter has a precise stop. This ensures an optimal fit without bending.
Determination of the correct distance:
The external thread disappears in the internal thread of the following fittings and is therefore not included in the calculation. What remains is the cylindrical part with the chamfers, which occupies 12.5 mm.
This is from the recommended working distance of the corrector
deduced to take into account the optical path of the TSFlat3-M68a.
| Thread on corrector side: | female thread fitting to the TSFLAT3 and William P-FLAT68 - M80x1 female thread |
| Depth of this thread: | 7.5 mm |
| Thread on camera side: | male M68x1 thread |
| Depth of this thread: | 4 mm |
| Optical path: | 12.5 mm |
| Material: | Aluminium |
What goes in the box:
♦ TS Optics Adapter
