TS-Optics 1.0x Refractor Flattener for 70-72mm ED and APO Aperture

Field flattener and corrector for compact refractors with 70-72mm aperture for astrophotography and landscape photography.

♦ Calculated for APO refractor telescopes with 70mm and 72mm aperture for optimal and sharp astrophotography.

♦ Telescopic side connection via external thread M63x1 (with 360° rotation), M68x1 and M54x0.75

♦ Includes 360° rotation system for optimal camera positioning with M63x1 connection

♦ Camera side connection via photo thread M48x0.75

♦ Working distance from the 55mm M48 thread: With the right T-adapter and a DSLR camera, it automatically finds itself at the optimal distance.

♦ The distance can be extended up to 71 mm.

♦ Correction of lighting and image field delivered up to full format.

♦ The focal length of the telescope does not change.

♦ The telescope is not included.

€165.25
Entrega entre 8 y 10 días laborables
Entrega entre 8 y 10 días laborables
Reference:
TSFlat72
Description

TS-Optics Image Field Flattener / Corrector for PhotoLine apo refractors with 72mm aperture

The corrector is specially calculated for the compact Teleskop-Service travel scopes and gives optimum results with these telescopes. Even the use of cameras with full-frame sensors is possible. The corrector is especially indicated for:



♦ TS-Optics SD-Line 72mm f/6 Apo

♦ TS-Optics PhotoLine 72mm f/5.5 Apo

♦ TS-Optics ED 70mm f/6 Refractor

♦ High-end TS-Optics TSCFAPO70 70mm f/6 Apo



Advantages and features:

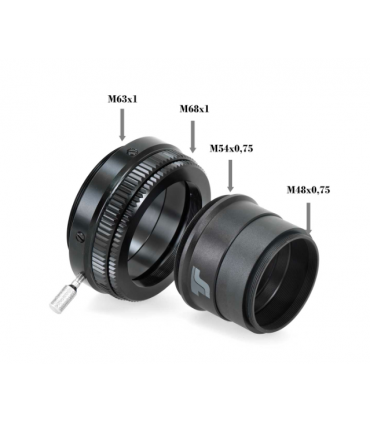

♦ Connection on the telescope side via external thread M63x1 with 360° rotation.



♦ If you unscrew the 360° rotator, a male thread M54x0.75 and a male thread M68x1 are available for the telescope connection.



♦ The corrector is specially calculated for the compact and fast travel 72mm aperture apos and gives optimum results with these telescopes.



♦ M48x0.75 photo connection on the camera side provides 15% better illumination than the T2 and also allows the use of full frame sensors.



♦ 55mm working distance from the M48 thread. With a suitable T-adapter, which is linked in the accessory area, you can automatically achieve the correct distance with a DSLR. Removing the middle ring increases the working distance to 71mm and can also fit any astronomical camera or long accessories.



♦ The proofreader is fully multi-compensated. In addition, a matte black anti-reflective interior coating achieves an absolute absence of reflections. The image offers a very high contrast, which is also suitable for daytime photography (landscape, birds...).

Specifications:

Illuminated and corrected field: 42 mm
Change in focal length: no change of the focal length
System: Flattener / corrector for astrophotography
Connection at telescope side: M63x1, M68x1 and M54x0.75 thread (male)
Connection at camera side: M48x0.75 thread (male) - length 4 mm
Working distance: 55 mm from the male M48 thread
Length: 66 mm
360° rotation (only combined with M63): included - length 21 mm

Product Details
TSFlat72
