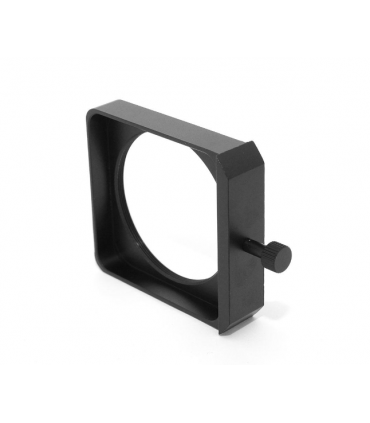

TS-Optics Filter Holder for 2" Low Profile Mounted Filters for TS Filter Drawers
The holder allows you to change filters in seconds with the TS filter drawer.
♦ Suitable for: 2" mounted filters with filter thread M48x0.75
♦ The effective height of the filter holder can be up to 6.5mm (M48x0.75 filter thread is not included), so only "low profile" filter holders can be used.
♦ Suitable for the following TS filter drawers: TSFSLT2 and TSFSLM48
♦ Does not fit the old TSFEK2 and TSFEK48 filter drawers!
♦ Among other things, it fits all Optolong filters and all Baader filters with low-profile filter mounts, as well as all Astronomik filters.

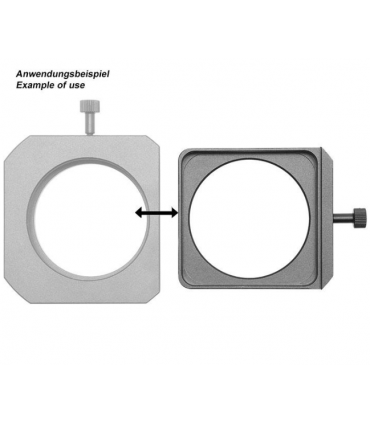

TS filter element for 2" filters
Additional filter slots for the TS filter holder allow you to switch between different filters in a matter of seconds. You can use as many filter pans as you like and even mix 1.25" and 2" pans if needed! This allows you to use any combination of filters photographically or visually.
The filter drawer is suitable for all 2" filters, especially for filters with a "low profile" filter holder up to 6.5mm in height. The 2" filter thread is not one of them. .
Teleskop-Service practical tips:
We recommend one drawer per filter. Unscrewing the filters during photography or observation is quite impractical.
The drawer is only slightly larger than the filter. You can barely reach it with your fingers. The solution:
♦ Take a 2" barrel (from an eyepiece or adapter).
♦ Secure them to the filter with adhesive tape. The external thread M48 must be free.
♦ Now carefully screw the filter into the drawer. The 2" socket serves as a grip extension.
Specifications:
| Suitable for: | current TS filter quick changer (not TSFEK2 or TSFEK48) |
| Female thread: | M48x0.75 for mounted 2" filters |
| Length of the female thread: | 4 mm |
| Distance upper surface to the female thread: | 7 mm - suitable for filter cells up to 6.5 mm |
