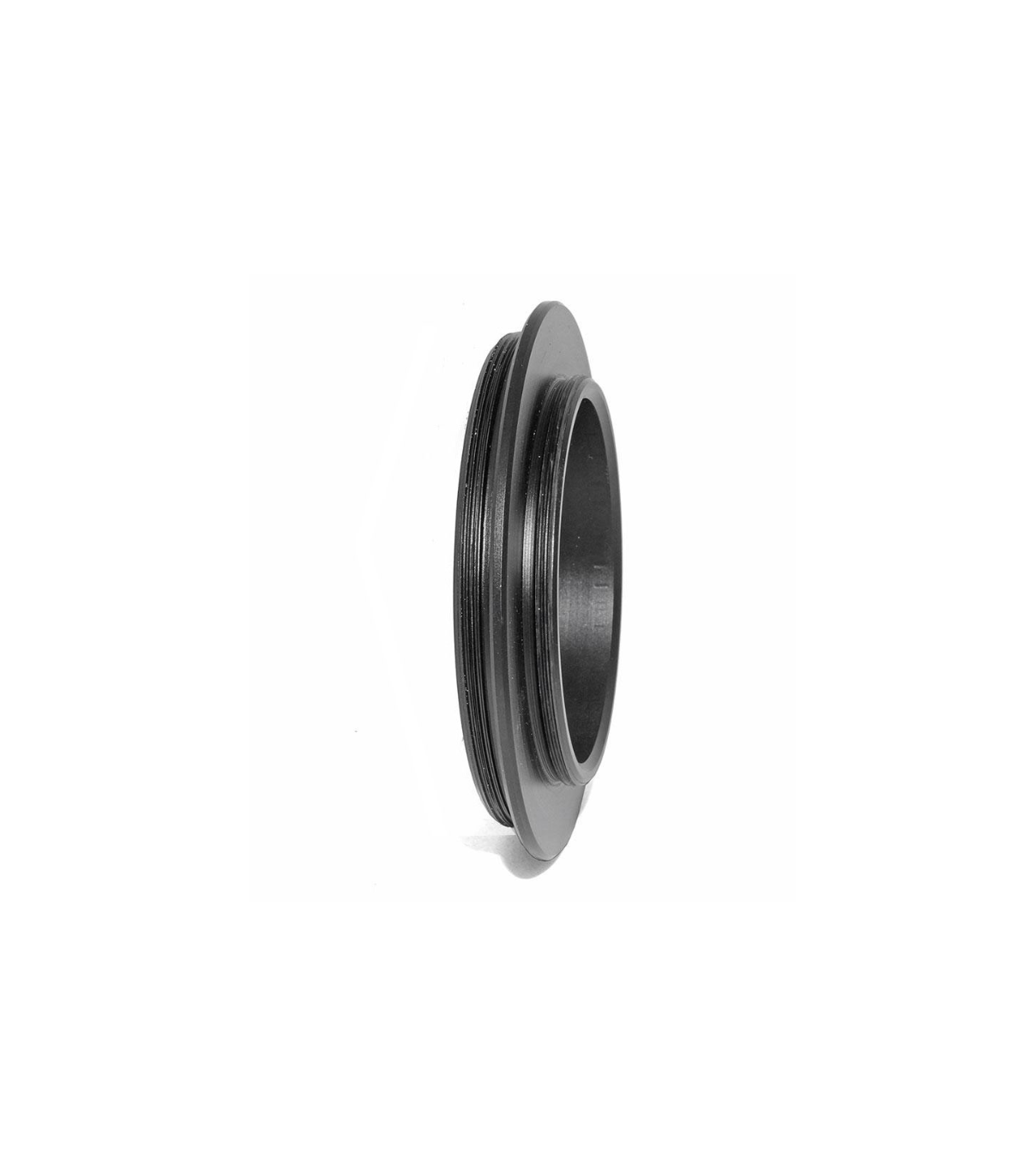

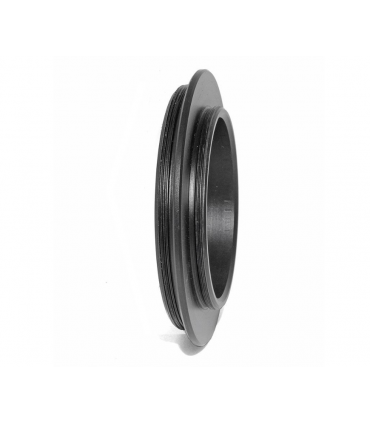

TS-Optics adapter from M82x1 to M68x1 for Riccardi reducer and TS 0.74x
The adapter converts an internal M82x1 thread to an external M68x1 thread and thus allows connection to the range of M68x1 adapters or suitable extensions.
♦ Telescopic side thread: M82x1 - length 5 mm
♦ Camera side thread: M68x1 - length 5 mm
♦ Total optically effective length of the adapter without external thread: 3 mm
♦ The adapter is directly attached to the internal thread M82x1 on the camera side of the Riccardi Reducer or to the internal thread on the telescope side of the TSAPORED075
€143.76
(VAT incl.)
Entrega entre 8 y 10 días laborables
Reference:
TSM82-M68
TS-Optics connection adapter M68x1 to thread M82x1
This TS adapter allows an adaptation of the internal thread M82 to the level thread M68x1 ZEISS. You can connect accessories with this thread directly to the Riccardi Reducer.
♦ TSAPORED075: With this adapter the corrector can be connected to focusers with female thread M68x1.
♦ RIRED-M82: the adapter converts the internal thread M82x1 of the camera into an external thread M68x1 and thus allows the connection of the corresponding accessories.
| Thread at the telescope side: | M82x1 male - length 5 mm |
| Thread at the camera side: | M68x1 male - length 5.5 mm |
| Optical path of the adapter without male threads: | 3 mm |
What goes in the box:
♦ TS Optics Adapter
