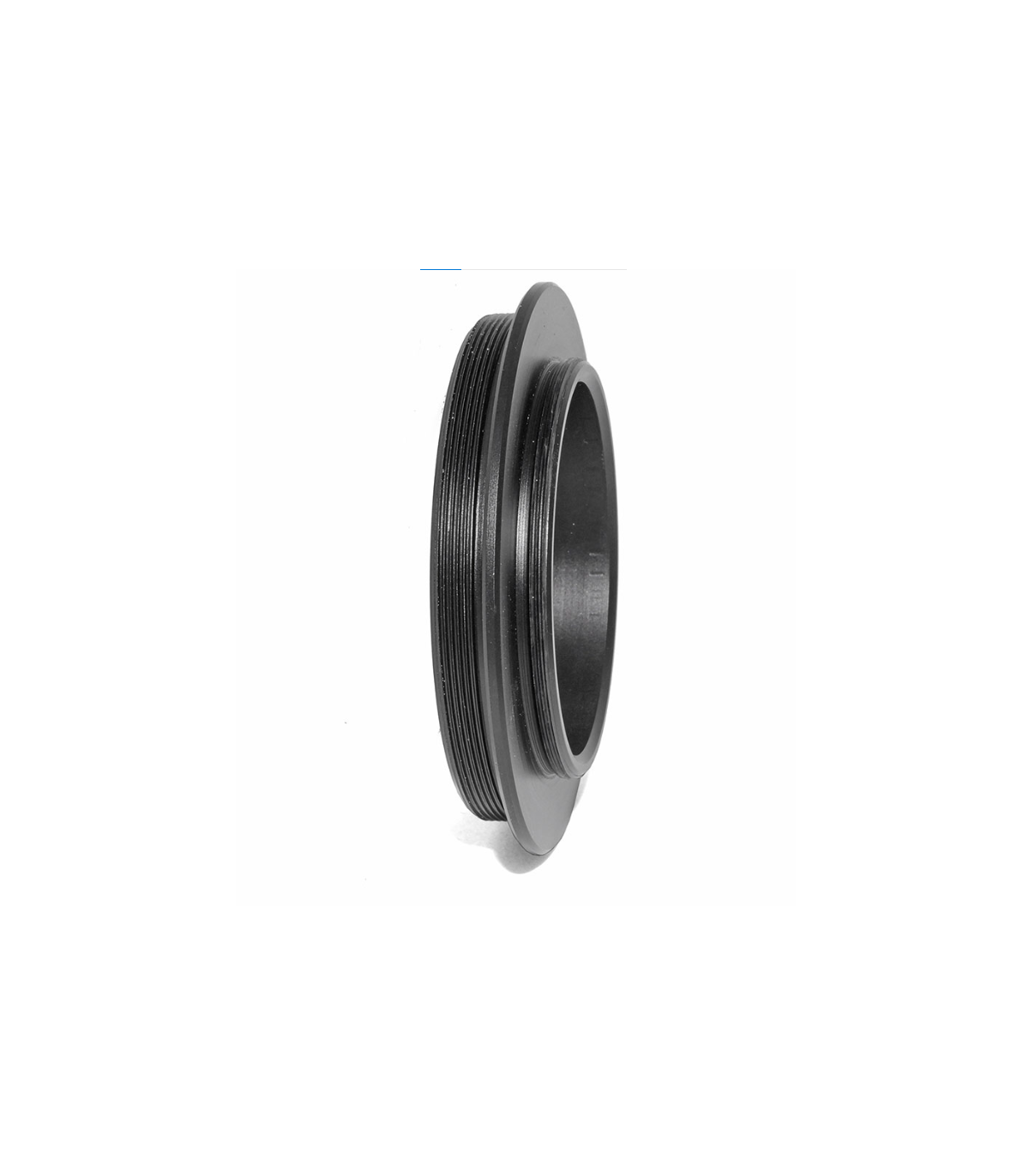

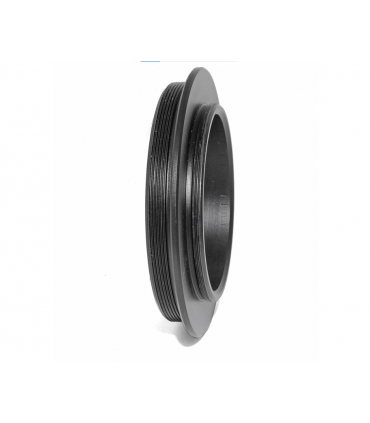

TS-Optics adapter from M82x1 to M68x1 with extra long M82 thread
The adapter allows, in connection with the FT35-M82, the connection of the Riccardi Reducer M82 to the Starlight Feather Touch FTF35 focuser.
♦ Telescopic side thread: M82x1 - length 9.1 mm
♦ Camera side thread: M68x1 - length 5.5 mm
♦ Total optically effective length of the adapter without external thread: 2.8 mm
♦ The adapter is screwed into the FT35-M82 connection adapter. The longer M82 thread leaves enough thread to screw the Riccardi reducer into the 3.5" Starlight FTF focuser draw tube.
€251.76
(VAT incl.)
Entrega entre 8 y 10 días laborables
Reference:
FT35M82-M68
TS-Optics connection adapter M68x1 to thread M82x1
This TS adapter allows you to adapt the internal thread M82 of the large Riccardi Reducer to a ZEISS level thread M68x1. The extra long M82 thread allows the coupling of intermediate sleeves and adapters.
Application example: Adaptation to the Starlight FeatherTouch FTF35.. 3.5" focuser:
The FT35-M82 adapter offers a threaded connection M82x1 (female thread) for the focuser. Now you can screw on this FT35M82-M68 adapter and have a M68x1 male thread on the camera side. On the telescope side you still have an external thread M82x1 with a good length of 6mm, where you can screw the Riccardi Reducer.
The advantage of this combination of adapters is that the reducer sinks into the draw tube. This saves valuable optical travel.
| Thread at the telescope side: | M82x1 - length 9.1 mm |
| Thread at the camera side: | M68x1 - length 5.5 mm |
| Optical path of the adapter without male threads: | 2.8 mm |
What goes in the box:
♦ TS Optics Adapter
