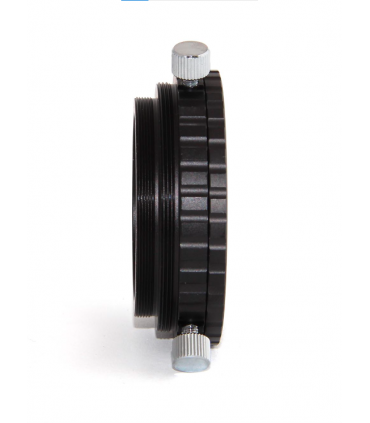

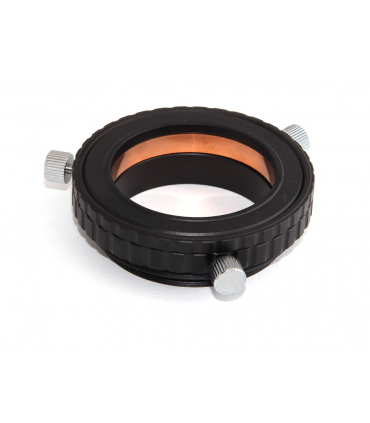

The adapter allows the connection of 2" accessories to focusers with a female thread M68x1 or M60x0.75 Vixen Level.
♦ Ideal for adapting 2" (50.8 mm) to different focusers
♦ Kurbauend: only 12 mm optical path from the connection thread M68x1
♦ Only 17 mm of optical travel from the connection thread M60x0.75
♦ Precise clamping with three ring-clamping knurled screws
♦ Suitable for Baader system and TS M68: can be used to build a 2" eyepiece projection device, for example
♦ The adapter has a male thread M68x1 on the eyepiece side for future adaptations
2" ultra-short TS eyepiece clamp for M68 and M60 threaded connection
This adapter allows the connection of 2" accessories to ZEISS level M68x1 internally threaded focusers and Vixen level M60x0.75 internally threaded focusers.

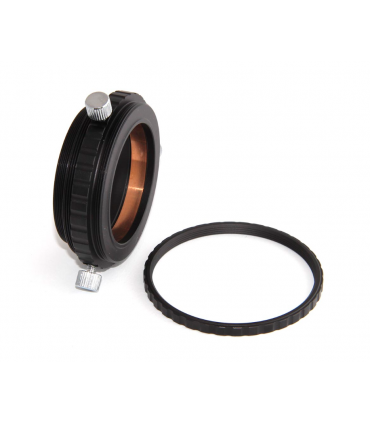

On the eyepiece side, the adapter has another M68 external thread, which is protected by a collar. You can connect the Baader or TS M68 system directly to this wire.
The optically effective lengths of the adapter:
When calculating the total length, the external threads on the telescope side are not counted because they disappear in the connection adapter.
♦ M60x0.75 thread distance to 2" receptacle: 17 mm
♦ M68x1 thread distance to 2" receptacle: 12 mm
Eyepice side connection: | 2" female and M68x1 male |
Telescope side Connection: | M68x1 male and M60x0,75 male threads |
Length of the Adapter: | 22mm |
What goes in the box:
♦ TS Optics Adapter
