TS-Optics to M54 adapter for ASA correctors with adapter flange
The adapter fits all 2" and 3" ASA correctors and fits the connection thread M54x0.75.
♦ Connection to the corrector: through countersunk holes suitable for a circle of holes 68.50 mm (distance of the holes to the center 34.25 mm)
♦ Connection chamber side: External thread M54x0.75: used in many filter drawers, filter wheels and CCD cameras.
♦ Total optically effective length: 4 mm - without external thread
♦ Suitable for the following ASA correctors, among others: ASA-2KORRR (reducing corrector 2" Newton 0.73x) and ASA3KORRW (Wynne corrector 3")
♦ Suitable for the TS-Optics TSG-OAG off-axis guider

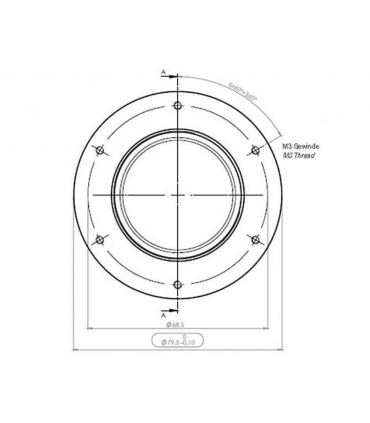

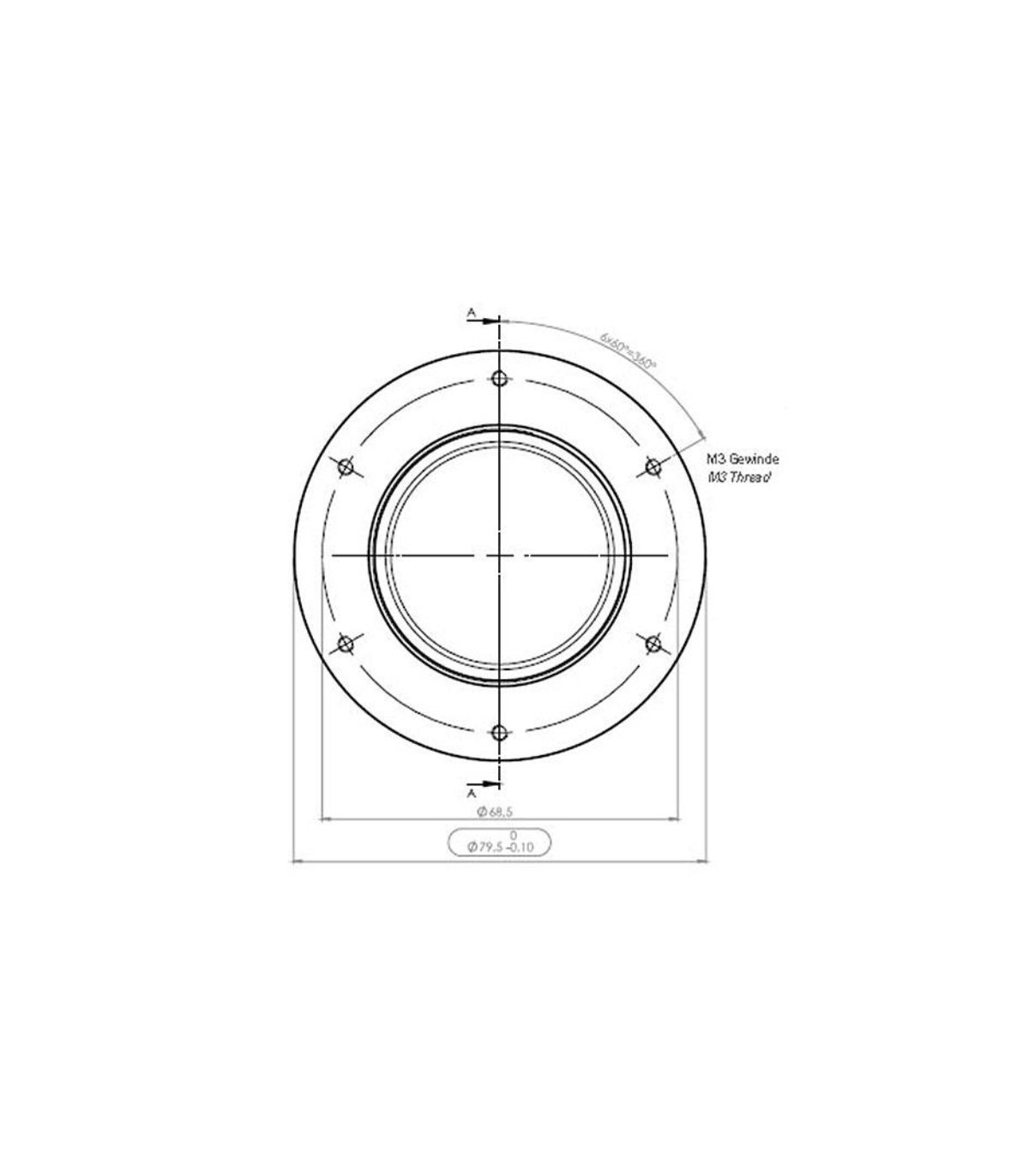

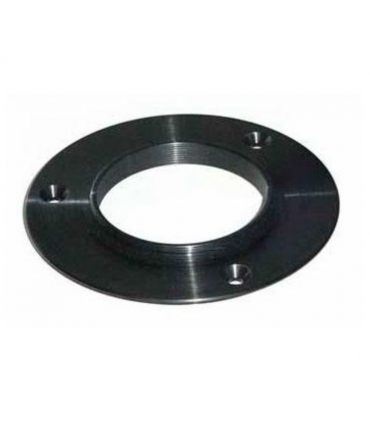

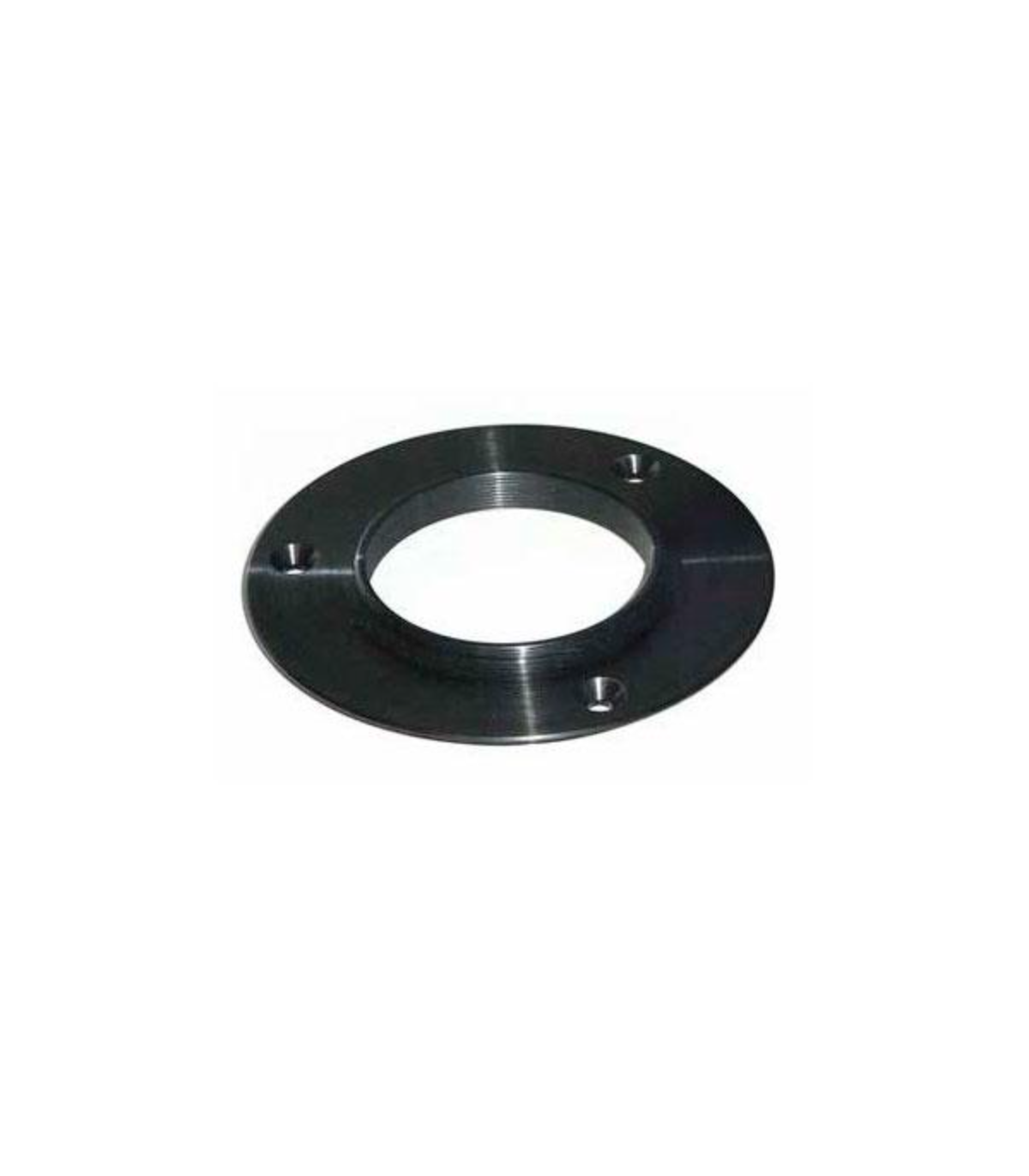

♦ Contrary to the drawing, only three holes for M3 screws, as in the product photo
€263.76
(VAT incl.)
Entrega entre 8 y 10 días laborables
Reference:
ASA3-M54
TS-Optics adapter to M54x0.75 for ASA correctors with adapter flange and TS giant eccentric guide
The adapter screws directly onto the offsets or the TS Gigant Off-Axis Guider with 3 M3 countersunk screws. Due to the short total length of 4 mm, you have maximum space for various accessories.
In connection with the TS Giant Off-Axis-Guider, you have a stable and extremely short adaptation with Off-Axis-Guiding. You just need 3x M3 countersunk head screws with 15mm thread length to fasten. The off-axis guide is clamped between the offset and the adapter. The overall length of the slip is only 4mm, it couldn't be shorter.
| Connection telescope side: | Three countersunk holes for M3 screws - hole circle 68.50 mm |
| Connection camera side: | M54x0.75 external thread |
| Optically effective overall length: | 4 mm (without external thread) |
What goes in the box:
♦ TS Optics Adapter
