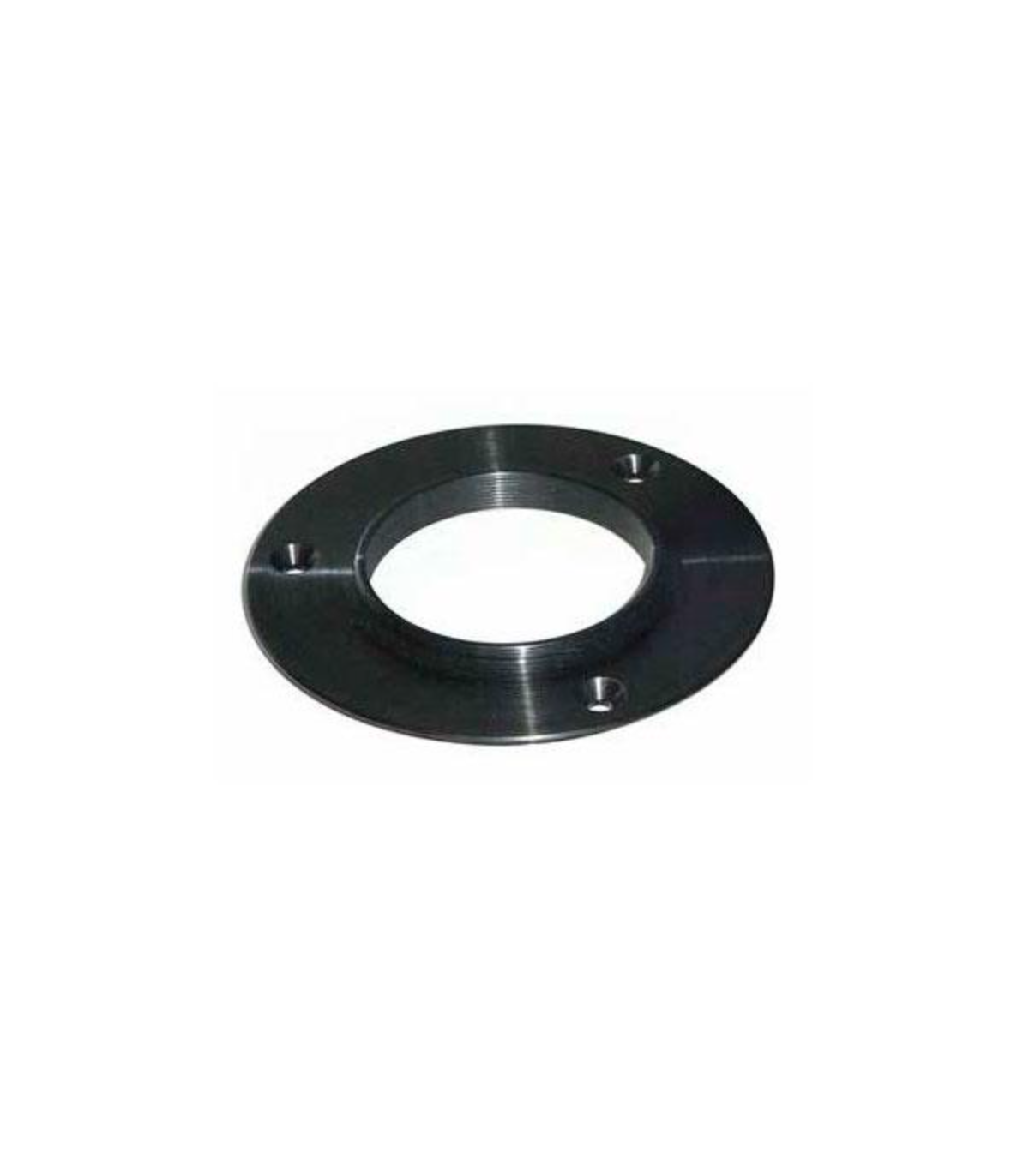

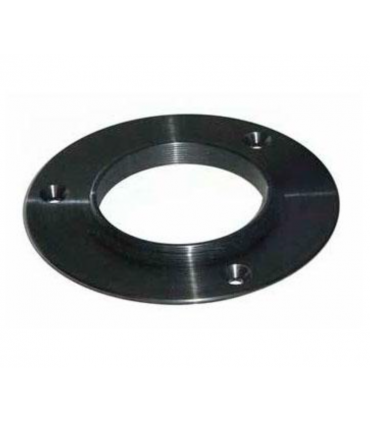

TS-Optics to T2 adapter for ASA correctors with adapter flange
The adapter fits all 2" and 3" ASA offsets and fits the T2 connection thread.

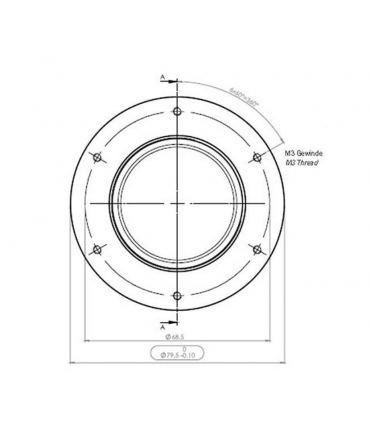

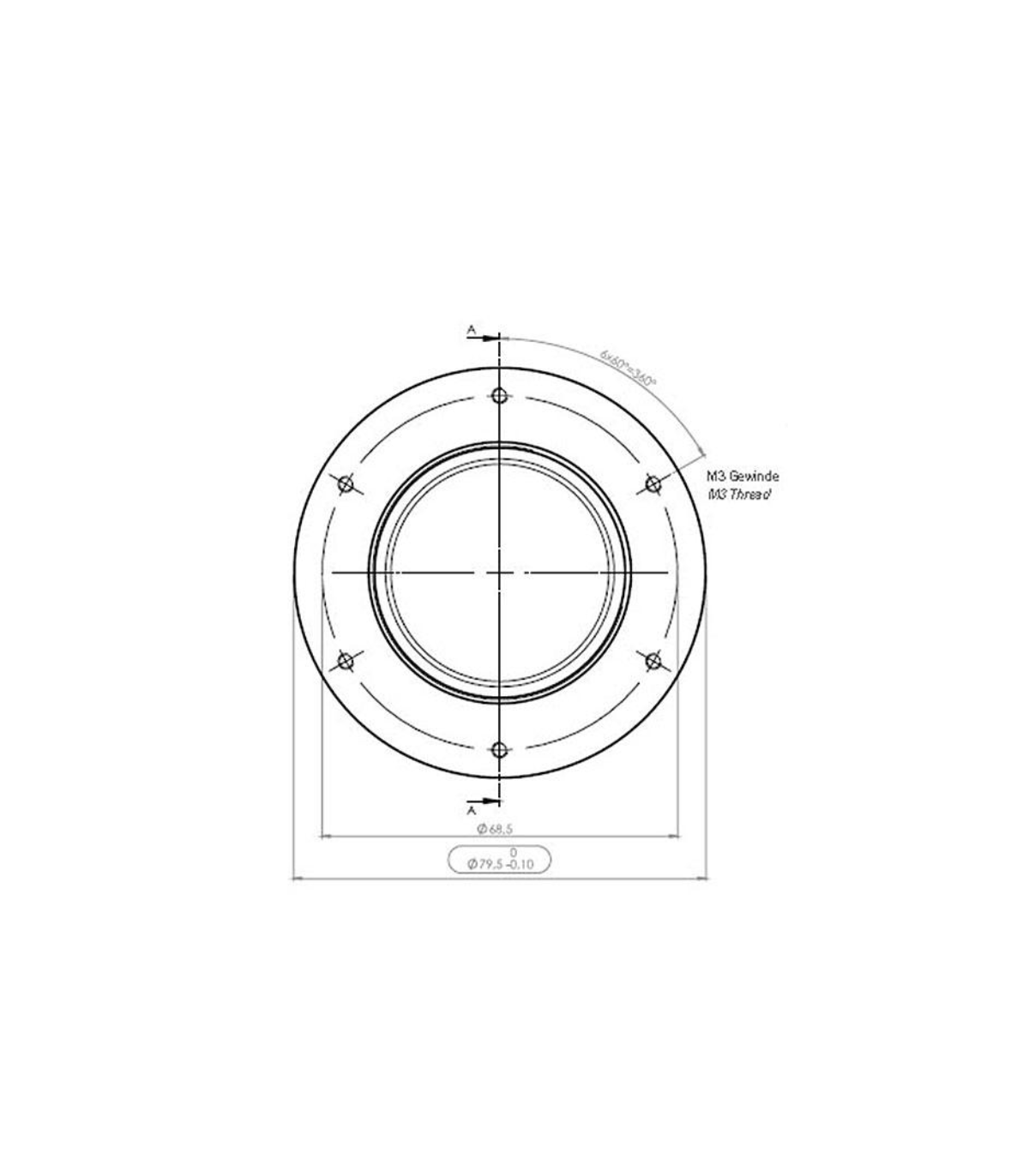

♦ Connection to the corrector: through countersunk holes suitable for a circle of holes 68.50 mm (distance of the holes to the center 34.25 mm)
♦ Camera side connection: T2 thread external thread M42x0.75 (male)
♦ Optically effective total length: 4 mm - without external thread
♦ Suitable for the following ASA correctors, among others: ASA-2KORRR (reducing corrector 2" Newton 0.73x) and ASA3KORRW (Wynne corrector 3")
♦ Suitable for the TS-Optics TSG-OAG off-axis guider
€215.76
(VAT incl.)
Entrega entre 8 y 10 días laborables
Reference:
ASA3-T2
TS-Optics to T2 adapter for ASA correctors with adapter flange and TS Giant Off Axis Guider
The adapter screws directly onto the offsets or the TS Gigant Off Axis Guider with 3 M3 countersunk screws. Due to the short total length of 4 mm, you have maximum space for various accessories.
In connection with the TS Giant Off Axis Guider, you have a stable and extremely short adaptation with Off Axis Guiding. You just need 3x M3 countersunk head screws with 15mm thread length for fastening. The off-axis guide is clamped between the offset and the adapter. The total length of the suit is only 14mm, it couldn't be shorter.
| Anschluss Teleskopseite: | Drei Senklöcher für M3 Schrauben - Lochkreis 68,50mm |
| Anschluss Kameraseite: | T2 Außengewinde (M42x0,75) |
| Optisch wirksame Baulänge: | 4mm (ohne Außengewinde) |
What goes in the box:
♦ TS Optics Adapter
