TS-Optics T2 focal adapter for Skywatcher focusers with internal thread M54x1
The focal adapter fits all focusers with an M54x1 female thread, such as Skywatcher Newtonians, and offers a T2 connection on the camera side.
♦ Very short: the adapter only needs a 2.5mm optical path
♦ On the camera side there is a photographic thread T2 (M42x0.75) - external thread
♦ The adapter also has a 2" filter thread (internal thread M48x0.75) on the telescope side. This thread allows the adaptation of 2" filters or correctors with M48 connection. Filter and corrector disappear in the focuser

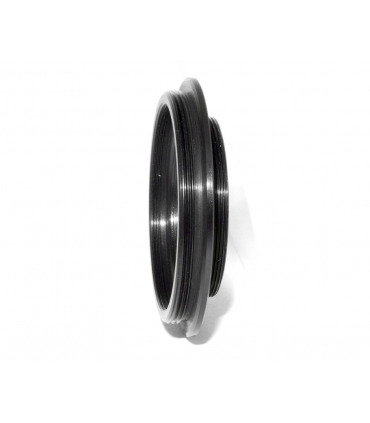

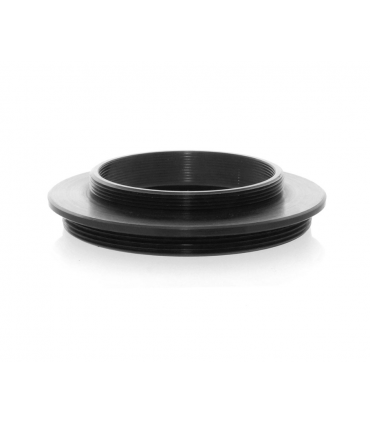

TS Optics adapter from M54x1 to T2 - focal adapter
The TSM54-T2 adapter offers a very short adaptation to the T2 photographic thread for all focusers with an M54x1 female thread. In addition, the adapter offers a 2" filter thread on the side of the telescope. Due to the short design, you can easily reach the focus with DSLR cameras and insert 2" filters into the beam path.
Among other things, the adapter fits:

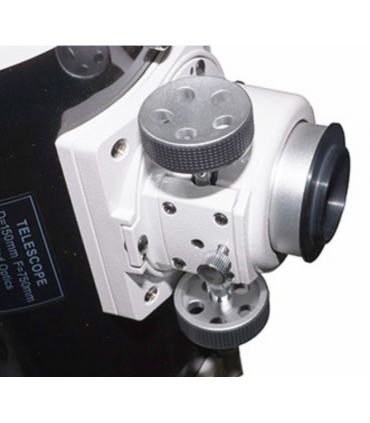

♦ Skywatcher Crayford focuser for Newtonians with female thread M54x1
♦ Newton extracts from Orion USA
What g
| Thread at telescope side: | M54x1 male and M48x0.75 female |
| Thread at the camera side: | T2 (M42x0.75) male |
| Distance M48 thread to T2-thread: | 7.2 mm |
| Length M48x0.75 female thread: | 4 mm |
| Length T2-thread male: | 4.5 mm |
oes in the box:
♦ TS Optics Adapter
