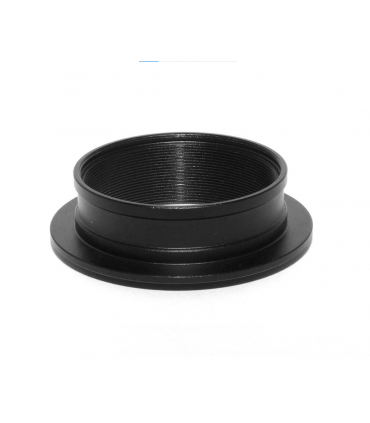

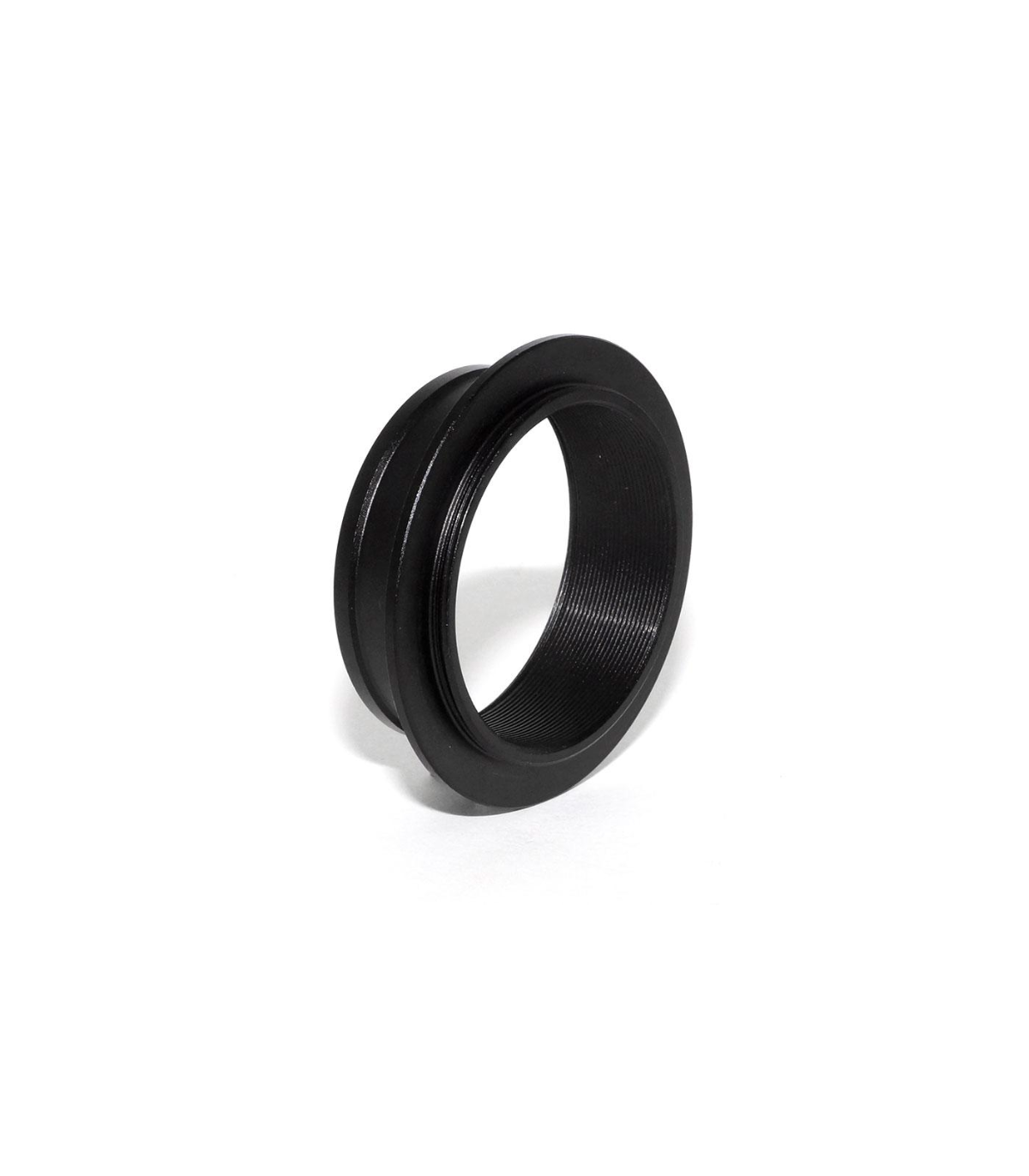

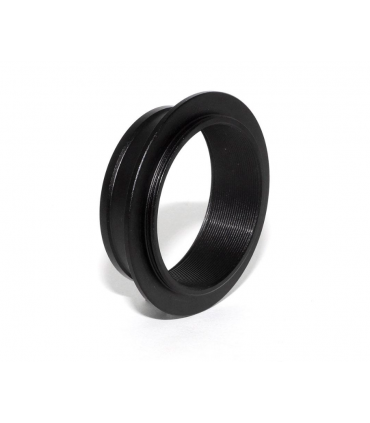

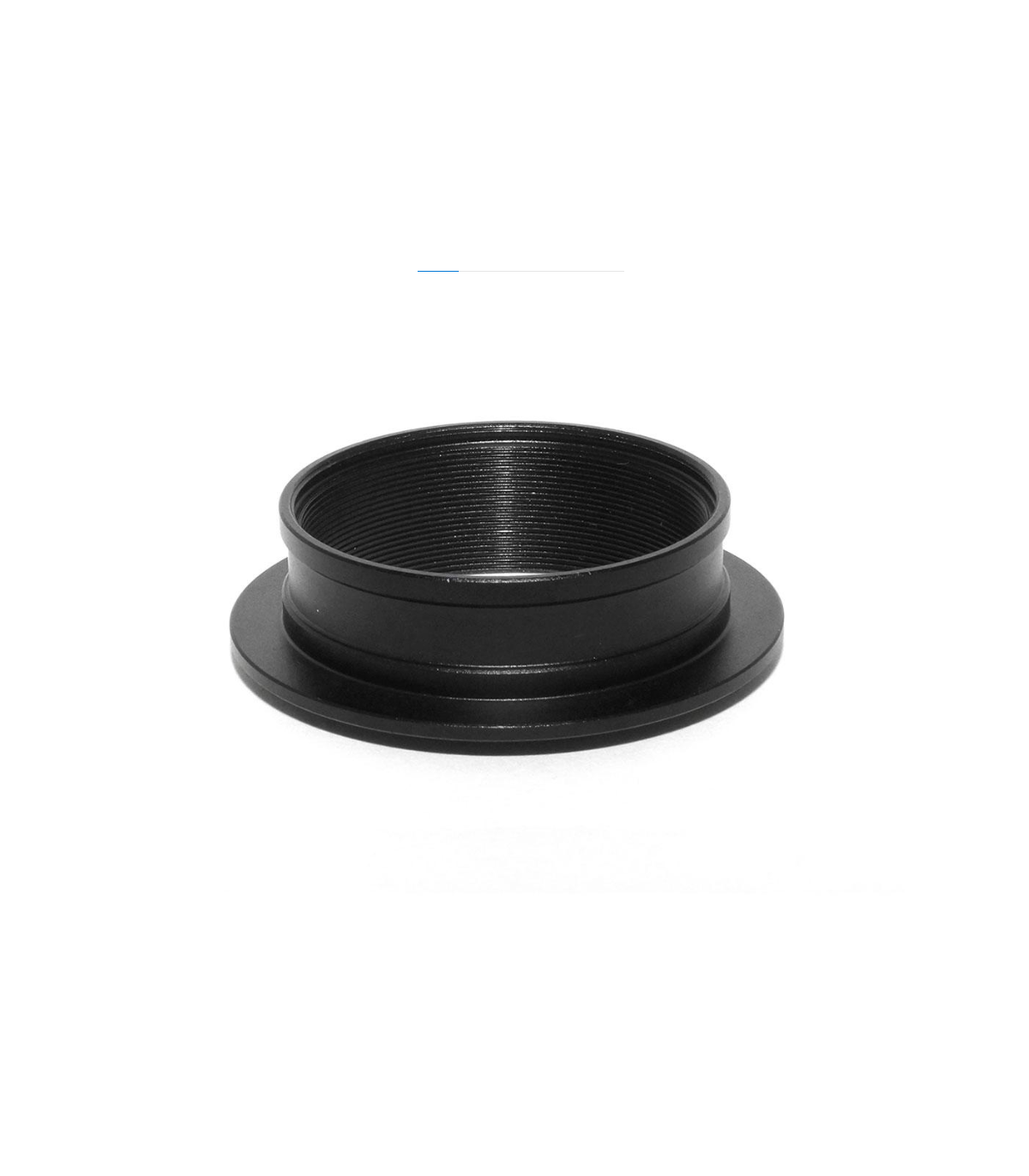

Trutek adapter 2" plug to SC thread - short
The short adapter allows the connection of SC threaded accessories to a 2" socket diameter.
♦ Telescope side: 2" barrel with filter thread M48x0.75 - 2"
♦ 2” barrel length: only 13.5mm
♦ Adapter length for M48 adaptations: 15.8 mm (SC external thread does not count)
♦ Chamber side: SC male thread with only 3 mm length - suitable for example for filter wheels with SC female thread connection
€71.76
(VAT incl.)
Entrega entre 8 y 10 días laborables
Reference:
TR2PFM-SCTM
Trutek 2" Short Adapter to SC Thread
The adapter allows the connection of filter wheels or adapters with SC threads on the telescope side to 2" focusers. The adapter is very short and the SC thread is also short, as it should not protrude too far into the filter wheel.
| Telescope side connection: | 2" nose piece with M48x0.75 filter thread |
| 2" nose piece length: | 13.5 mm |
| Camera side thread: | SC |
| SC thread length: | 3 mm |
| Optical length of the adapter: | 2.3 mm |
| Optical length of the Adapter M48x0,75 Connection: | 13.5 + 2.3 mm = 15.8 mm (without the male SC thread) |
What goes in the box:
♦ TS Optics Adapter
