Cooled USB 3.0 color astronomical camera with powerful back-illuminated CMOS sensor for astrophotography with square image format
♦ Powerful color camera at a premium price – ideal for getting started in semi-professional astrophotography
♦ Powerful and controlled Peltier cooling up to 35°C below ambient temperature

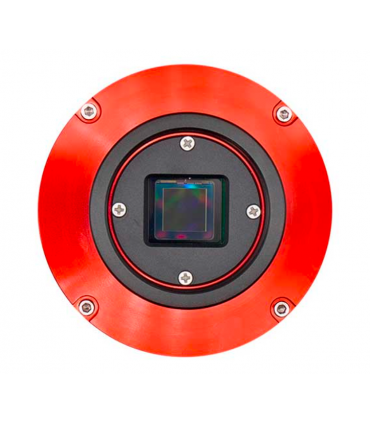

♦ 1" format Sony IMX533 sensor - square, backlit
♦ High resolution with 3.76 µm pixels
♦ 14-bit ADC: dynamic range like a CCD sensor
♦ No more amplifier glare and better suitability for light polluted skies
♦ Modern backlight technology for higher sensitivity
♦ Telescope side connection: female thread M42x0.75
♦ 17.5mm working distance from internal thread, only 6.5mm without black front ring

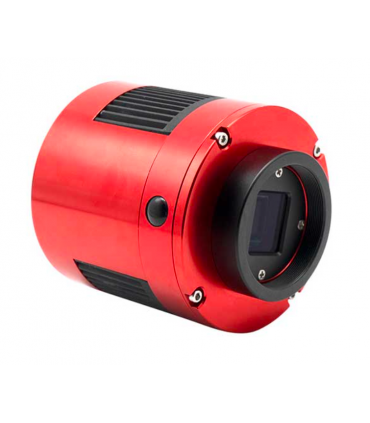

ZWO ASI533MC Pro: next-generation powerful color astronomical camera
ZWO has gone a step further with this new camera. The color sensor with a diagonal of approximately 16 mm can be used with almost any telescope. Due to the square shape, the corrected image field of the telescope is used optimally. With many telescopes, this even allows them to be used without a corrector.
A special feature of the ASI533MC Pro is the zero glare circuit, which eliminates amplifier glare that occurs with longer exposure times. With longer exposure times, this would brighten areas of the image. In this camera, the electronics also reduce the effects of external stray light, so you can expose longer under light-polluted skies.
One of the standout features of the ASI 533MC Pro is the sensational light sensitivity. The 80% QE thanks to the BACK ILLUMINATION technology and the very low amplifier brightness make the camera very suitable for all astronomical applications, but especially for deep sky astrophotography.
The "single shot" color camera offers more convenience than monochrome cameras. Not everyone wants to go through the complex L-RGB process to get beautiful color nebula images or planetary images. Color cameras give you the opportunity to get great pictures without changing the filter. However, in direct comparison with the DSLR camera, the ASI camera convinces with a much higher light sensitivity, a softer image and a significantly greater depth. Stars don't burn out that fast.
Other benefits and product features of the ASI 533MC Pro color camera:

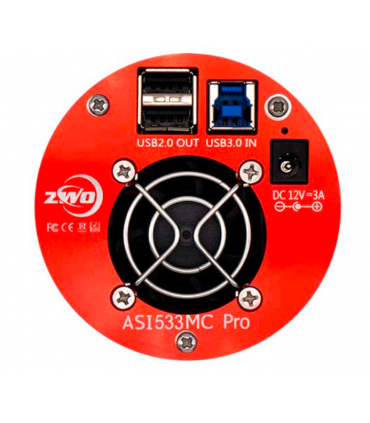

♦ USB 3.0 for fast download - can also be used with USB 2.0
♦ DDR3 memory buffer for stable data transfer with USB 2.0 - Minimizes amp glare
♦ Powerful Peltier cooling up to 35°C at room temperature
♦ One of Sony's most light-sensitive CMOS sensors
♦ High resolution with 3.76 µm pixels: ideal for fast and sharp telescopes like Apos, Hyperstar, Celestron Faststar, Fast Newtonian telescopes...
♦ Supplied with AR clear glass filter - full transmission even in infrared. If IR is to be blocked, an IR cut filter is required.
♦ Distance of connection thread T2 (internal thread) to the camera sensor: 17.5 mm
♦ Distance from front surface to sensor (when using external thread): only 6.5mm
♦ High sensitivity - QE greater than 80% - ideal astronomical camera for faint objects
♦ 14-bit ADC...this gives you the same depth as CCD cameras, but with much higher sensitivity
Camera application areas:
♦ Deep sky recordings (nebulae and galaxies): Due to the high sensitivity, nebulae and galaxies are captured after a few seconds. The camera can be cooled down to 35°C below ambient temperature. This further reduces the already low noise level. By increasing the GAIN (comparable to the ISO setting on digital SLR cameras), you can reduce exposure times to less than 30 seconds. This eliminates effects caused by air turbulence or tracking inaccuracies.
♦ Lunar and planetary imaging: Extremely short exposure times due to high sensitivity freeze air turbulence. Due to the high resolution of the sensor, highly detailed images can be obtained even with a shorter focal length telescope. Video astronomy is also possible.
back lighting technology
Sony's back-illuminated CMOS image sensor improves sensitivity and noise reduction, key factors in improving image quality, while the basic pixel structure has been radically reoriented from front to back exposure. The advantages of CMOS image sensors, such as low power consumption and high operating speed, have been retained.
Postexposure improves light capture while increasing the amount of light. This makes significantly shorter exposure times possible and leads to an improved quantum efficiency of 80%.
Sony has developed a unique photodiode structure and on-chip lens optimized for back-illuminated structures, resulting in higher sensitivity and lower non-light random noise by reducing noise, dark current, and defective pixels compared to traditional structure with front lighting.
No amp glow
Conventional CMOS sensors produce a faint source of infrared light during operation, which can often be seen in the corners of uncalibrated images as a telltale sign of "amplifier brightness." Because the ASI533MC Pro uses a zero amp brightness circuit, you don't have to worry about amp brightness or amp brightness even when using high-gain, long-exposure imaging.
Important: external power supply required!
Please note that all ZWO cameras with cooler must be connected to an external 11-15V power supply to work.
Even when the cooler is not in use, power must be present for the camera to be recognized reliably.
TS Tip 1: 2" Filter Integration, 360° Rotation & Quick Coupling
The chamber is often used in concealers that do not offer a filter thread. Also, filters should always be used as close to the camera as possible. We offer you a solution that can do much more.
♦ 2" filter holder directly in front of the chamber
♦ 360° rotation for the correct selection of the image section (less important here due to the square format)
♦ Quick Disconnect - You can remove the camera from the telescope at any time without screwing or tangling cables

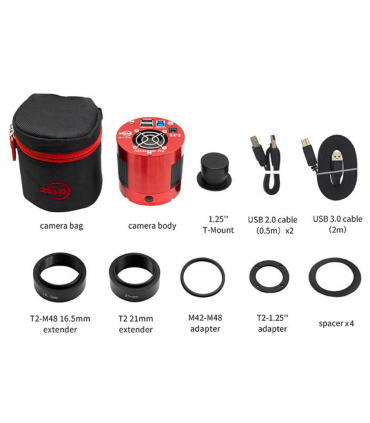

The adaptation is very simple, the 21 mm T2 extension is replaced by:
♦ 1x TSROTT2-T2 and 2x T2AbstimmA1
One tuning ring goes on the camera side, one tuning ring goes on the telescope side of the rotator. Then screw in the adapter M42-M48 with a length of 16.5mm and it will be at the correct distance with the camera.
TS Tip 2: Camera and Accessory Storage
Especially in our latitudes, the nights are usually very humid. This moisture condenses on your camera, eyepiece, or filter as they enter the warm interior of the apartment. Cold rooms in particular are affected. A photo session ends quickly because the sensor freezes.
Good storage is an important prevention against dew and also prolongs shelf life.
After use, put the camera into the TS Protect case and add some silica gel. During storage, the silica gel absorbs moisture from the chamber. At the same time, the penetration of moist ambient air is prevented. Due to dry storage, even small dry tablets can be partially regenerated with cooled chambers. Your camera or accessories are always ready for you in optimal conditions. You can find the silica gel and the case in our product recommendations.
ZW Optical provides software and drivers online for free download.
Software and drivers for all ZWO cameras
ZWO Cameras FAQ:
ZWO constantly updates the FAQ area, here you can find answers to many questions.
FAQ about ZWO cameras
ZWO Users Forum
Instructions for ZWO products:
ZWO constantly updates the page, here you can find instructions for ZWO products.
How do I clean my ZWO camera?
ASI chamber and regenerating desiccant tablets: Please click here.

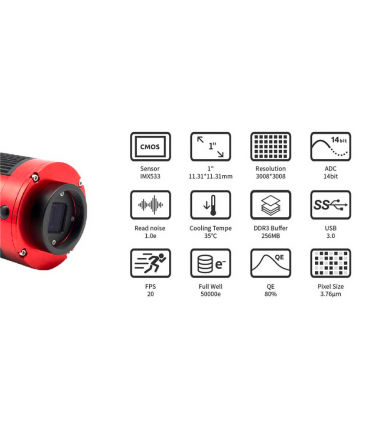

|Sensor:||Sony Color IMX533 square back-illuminated CMOS|
|Sensor size:||11.31 mm x 11.31 mm - 15.97 mm diagonal|
|Pixel size:||3.76 µm|
|Pixel number:||9 megapixels, 3008*3008|
|Cooling:||Powerful Peltier cooling|
|Full well:||50 ke|
|Readout noise:||1.0 to 3.8 e|
|Sensitivity:||Peak 80% QE|
|Frame rate at maximum resolution:||approx. 20 fps (approx. 54 fps at Full HD)|
|Power consumption:||12 V, 3 A|
|Telescope connection:||M42x0.75 female thread|
|Protection glass:||D32-2-AR protection glass with full IR transmission|

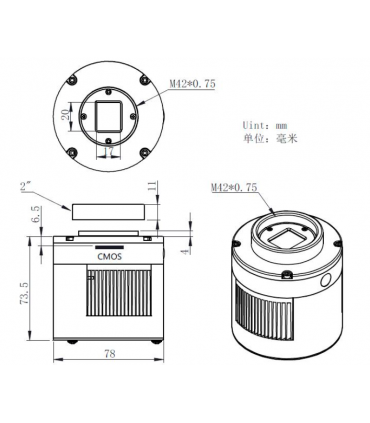

|Working distance from female thread to sensor:||17.5 mm|
|Height of the thread adapter ring:||11 mm|
|Working distance from front surface to sensor:||6.5 mm|
