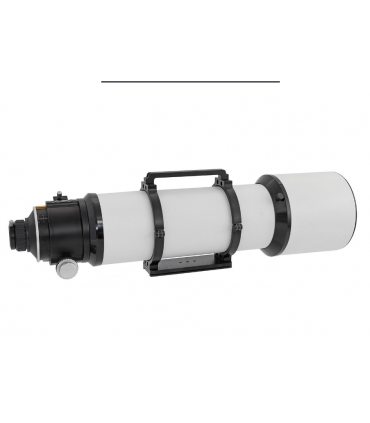

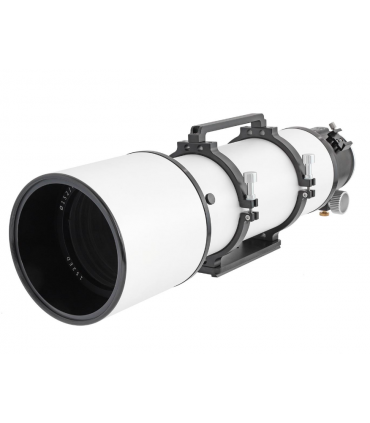

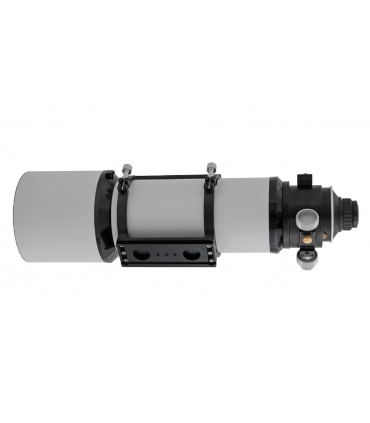

TS-Optics 152mm f/5 ED Rich - Field - Refractor with 4" RAP Focuser
The large 6" aperture ED refractor from Teleskop-Service impresses with its high light intensity: it is a classic comet finder.
♦ 152mm aperture / 760mm focal length / f/5 focal ratio;
♦ 2 element multicoated lens with Hoya FCD1 as ED element.
♦ The lens including the mount is made in Japan.
♦ Interior screens with high contrast and against reflections.

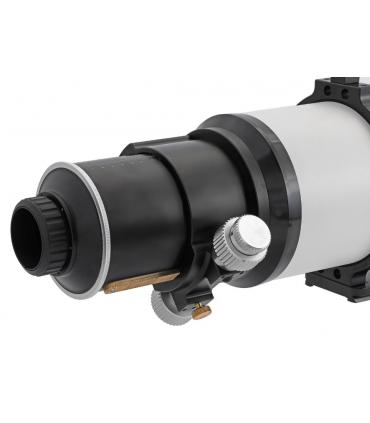

♦ 4" Ball Bearing RAP Focuser with Enhanced Bearing - Supports cameras up to 10kg.
♦ 2" receptacle with compression ring, 1.25" compression; working distance fits 2" accessories.
♦ Internal thread M63x2 and Internal thread M102x1 for screw-in adaptations in astrophotography.
♦ Retractable spray shield for transport.
♦ CNC clamps, Losmandy style dovetail bar, carrying handle and seeker shoe are included.

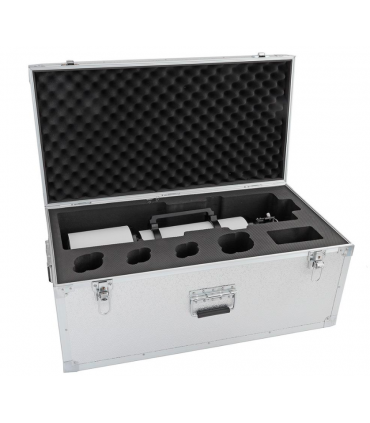

♦ A sturdy carrying and storage case is also included.
TS 152mm f/5 widefield refractor and comet finder
This 2-element ED is a truly extreme telescope for the ultimate wide-field observation. The stars are as thin as a needle, as only a well-corrected refractor can produce. The refractor remains easy to transport with a transport length of around 70 cm and 11 kg. A stable azimuth mount or a good equatorial mount such as the AVX or H-EQ5 is recommended as a base. The 2-element ED lens from Japan offers an image up to about 100x without disturbing color errors thanks to very good color correction. Sharpness is preserved up to about 250x, but after that we recommend a filter to reduce chromatic aberration.
The 2 element lens in a temperature compensated mount:
The optics and frame are made in Japan. Image quality is high, and contrast remains strong even at the maximum magnification range. Chromatic aberration is reduced with HOYA's FCD1 ED element.
Astrophotography with the TS 152mm f/5 ED refractor:
Although the telescope is optimized for wide-field viewing, it will also be able to photograph nebulae and galaxies. The fast f/5 aperture ratio allows for short exposure times. However, an image field corrector is absolutely necessary to get sharp stars all the way to the edge. We recommend the TSFLAT25DEL 1.0x corrector, which screws directly into the internal M63x1 thread of the focuser. The working distance is 55 mm from the M48 thread.
Especificaciones:
| Aperture: | 152 mm |
| Focal length: | 760 mm |
| Focal ratio: | f/5 |
| Objective: | 2-element ED objective with FCD1 as ED element |
| Connection focuser: | M102x1 female, M63x1 female, 2" and 1.25" |
| Diameter dew shield: | 204 mm with additional aperture of 90 mm |
| Transport length: | 70 cm |
| Weight: | 11 kg |
