TS-Optics Optics XL Premium Losmandy Level Dovetail Clamp

TS-Optics Premium XL Dovetail Clamp for Losmandy Style Dovetail Bars

With the TS-Optics Quick Release Prism Clamp, you can securely attach your telescope to the mounts. A high clamping force is achieved thanks to the flat clamping and two clamping screws. In addition, unsightly pressure points on the dovetail bar are avoided.

The dovetail clamp is ideal for building double fixtures. The threads are made of hardened aluminum, even after many years there will be no wear. The two slotted holes inside are suitable for M6 and 1/4" screws.

A secure and precise hold for your telescope or its accessories

Whether you want to adapt your telescope to a mount with a Losmandy-style dovetail bar, or attach heavy accessories, such as a guide scope, to the piggyback of your telescope, the premium TS dovetail clamp always provides a stable transition. .

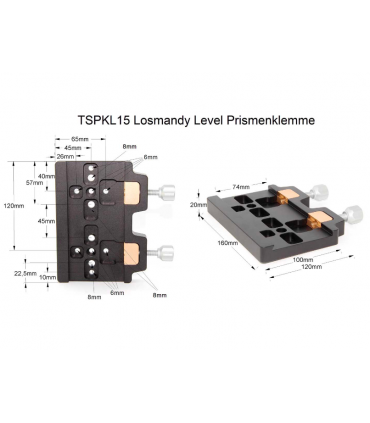

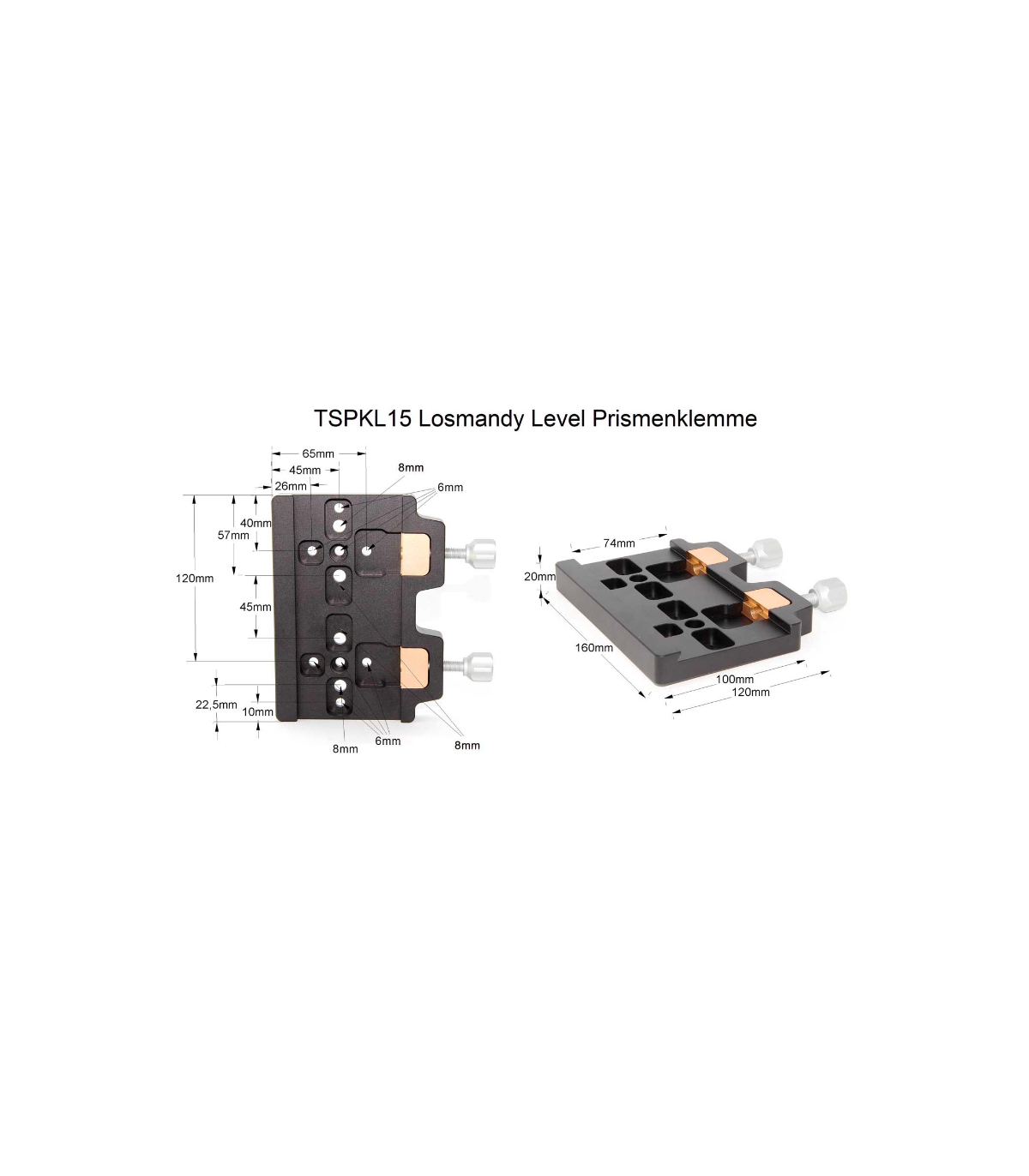

Due to the clamp length of 160 mm, vibrations are reliably reduced and even very long dovetail bars up to more than 50 centimeters in length are clamped well.

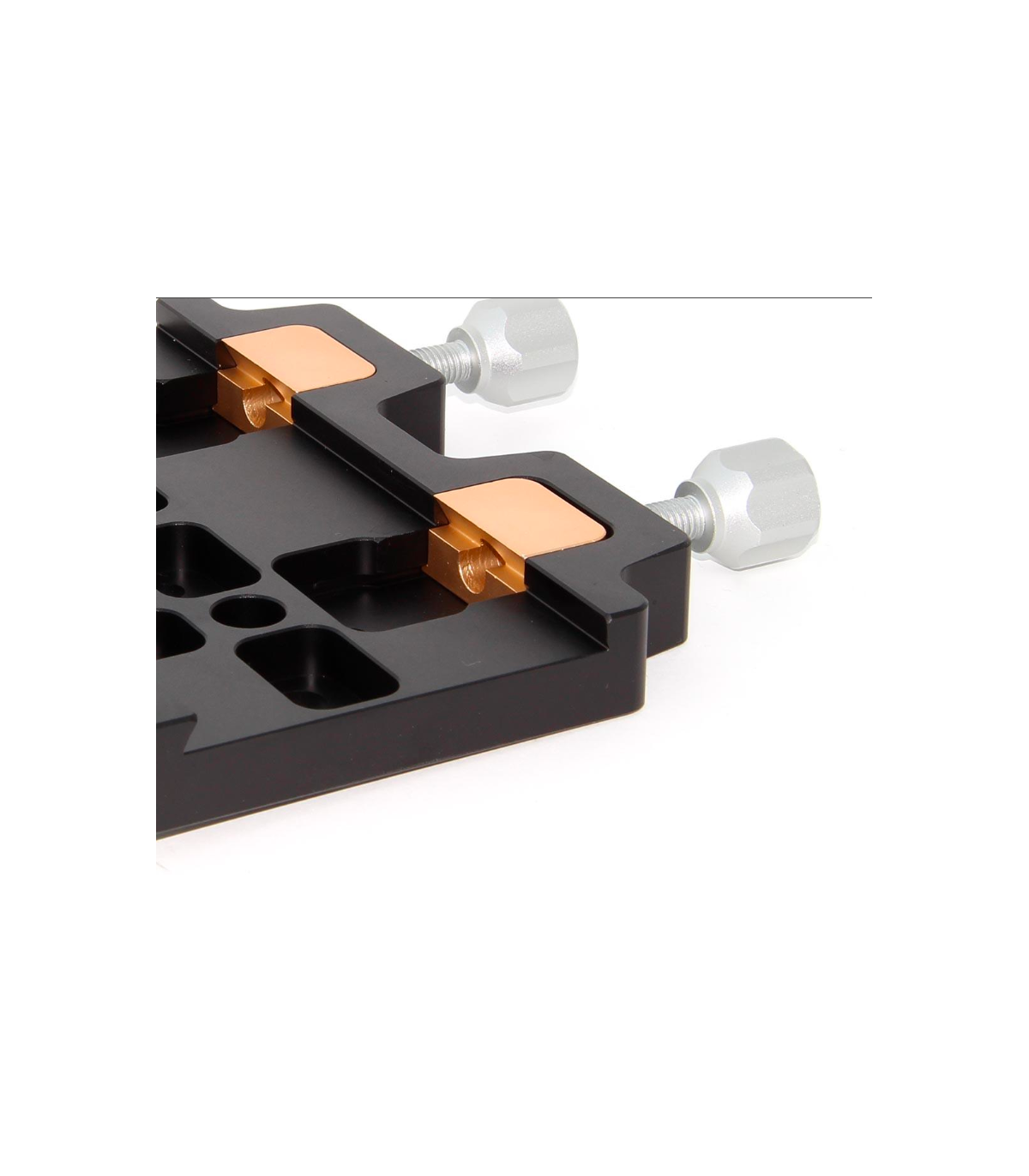

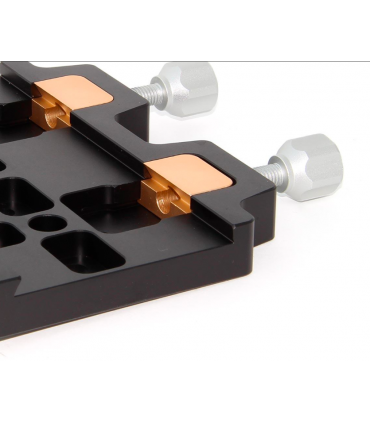

Despite the tight clamping, unsightly nicks are avoided

Two generously sized surfaces press the dovetail bar towards the other end of the clamp. The pressure is not concentrated in one point, but in a larger area with a width of 62mm. This has a positive effect on the load capacity. In addition, unsightly pressure points are reliably avoided.

Extremely flexible thanks to 14 countersunk holes

The dovetail clamp can be used extremely flexibly thanks to the 14 countersunk holes. You can attach the clamp to your mount and equip it with a Losmandy style quick release coupling. Or you can attach tube rings or a camera mount to the clamp base, allowing you to use heavy accessories along with your telescope.

Especificaciones:
