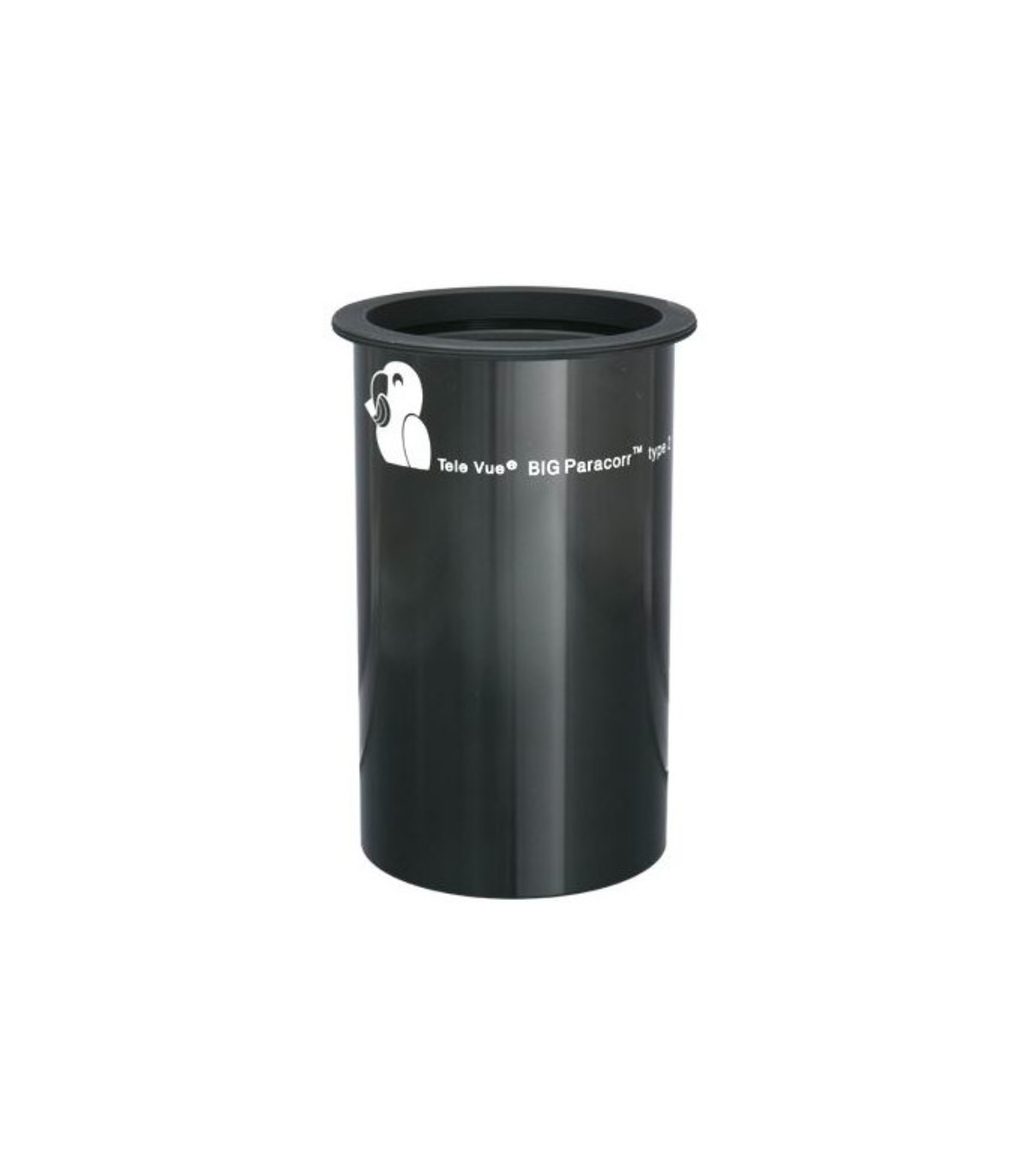

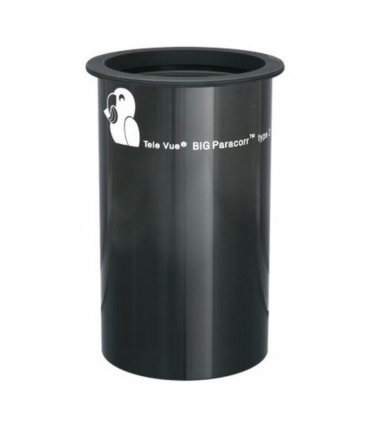

TeleVue BIG Paracorr Type 2 Coma Corrector, 3"

VIP-3010: specially designed for large camera sensors

Taking into account the trend towards ever larger camera sensors, TeleVue has now further developed the legendary PARACORR for large sensors (full frame or large format). To use this coma corrector, the Newtonian telescope must be equipped with a 3" focuser.

Features of the VIP-3010 BIG Paracorr:

♦ 100% illuminated and corrected field of view: 52 mm diameter

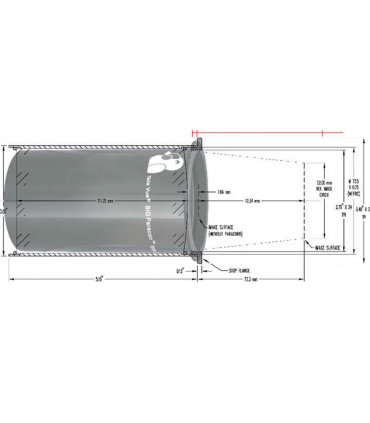

♦ Working distance: 73.3 mm from the 3.4" connection thread (telescope side)

♦ Length 5.125"/130mm

♦ Focal Length Extension: Factor 1.15x

Adaptation on the telescope side:

The BIG Paracorr has a 3" barrel. Therefore, the focuser must be able to hold 3" accessories. This requirement is met, for example, by the large 3" JMI Event Horizon focuser (see recommended accessories).

Camera Side Adaptation:

With our optional VIP3010-M68 adapter, you can connect the full range of M68 accessories, such as our M68 off-axis guide. The adapter itself is only 1mm long. From the M68x1 thread you have a working distance of 72.3mm to the camera sensor. This offers enough space for generous adaptations. If filters are used, you must add 1 mm to the working distance.

Visual use of the VIP-3010

You do not need a second corrector to remove the coma for visual use with your telescope. Instead, screw the TeleVue VISA into the BIG Paracorr first, then screw the TeleVue Tunable Top into the VISA. Now you can use your 2" or 1.25" eyepieces.

Especificaciones:

Capacidad
Conexión (lado de telescopio)	3"
Longitud óptica (mm)	80
En general
Color	negro
Serie	Paracorr
Tipo	Aplanadoras, Correctores, Reductores
Tipo de construcción	Corrector de coma
