The Type 2 Paracorr eliminates coma in observations and photography through Newtonian telescopes, with variable distance adjustment
♦ Intended for fast Newtonian telescopes (from 1:4.5)
♦ works up to 1:3 aperture ratio
♦ Does not produce spherical or chromatic aberration
♦ Use on 2" focusers
♦ Accepts 2" and 1.25" eyepieces and can be adjusted to your field iris position
♦ adaptable to various photographic connections (T2, M48, ...)
♦ 1.15x focal length extension
♦ Focus shift 46mm out

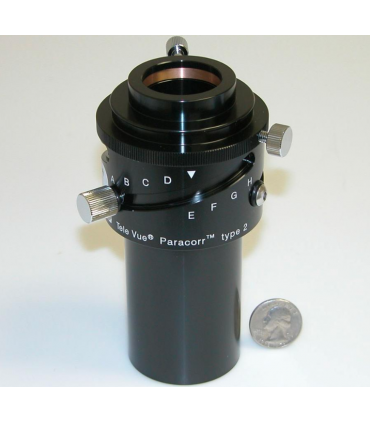

Paracorr Type 2
An optical chain is only as good as its weakest link. With the development of Nagler 82 degree and Ethos 100+ degree eyepieces, Tele Vue offers the largest, flattest and best corrected fields of view in the industry. Combine the Nagler/Ethos revolution, the Dobsonian revolution, and Paracorr to get the ideal pairing for spectacularly wide and sharp "spacewalk" viewing.
life without paracorr
Coma makes stars look like fuzzy comets whose tails point radially from the center of the field. The faster the speed of your reach, the worse the effect. All parabolic mirrors used in Newtonian reflecting telescopes have limited field sharpness due to coma. Even a perfectly made 13" f/4.5 parabola has only a diffraction limited field of about 0.1 degrees. Previous attempts to correct coma have had limited usefulness. Some correctors were designed primarily for astrophotography, some required difficult installation on the focuser tube.Dedicated coma correction eyepieces were another approach.However, these were limited to 50 degree apparent fields and would orphan your existing eyepiece collection.
Life with Paracorr Type-2
Paracorr is a universal corrector that tightens and intensifies star images in all ratios f up to f/3! without adding any false color or spherical aberration! You no longer have to constantly change a Dobsonian to keep objects centered for a sharp display. Using a Tele Vue eyepiece, position the M-13 at the edge of the field and enjoy fully resolving its beauty as it pans across your view. Paracorr is easy to use. It slides into your focuser, like a Barlow. To minimize focuser travel due to the extra length, a slight 15% Barlow effect was designed into Paracorr to effectively draw focus. Paracorr is recommended for use with all Tele Vue eyepieces because its Plössls, Radians, Panoptics, Naglers, Ethos and Delos eyepieces achieve higher levels of aberration correction than competitive models. However, Paracorr is also compatible with other eyepiece brands. Try Paracorr on your "DobNewt". We think you'll agree that the revolution is complete.
paracorr eat comma

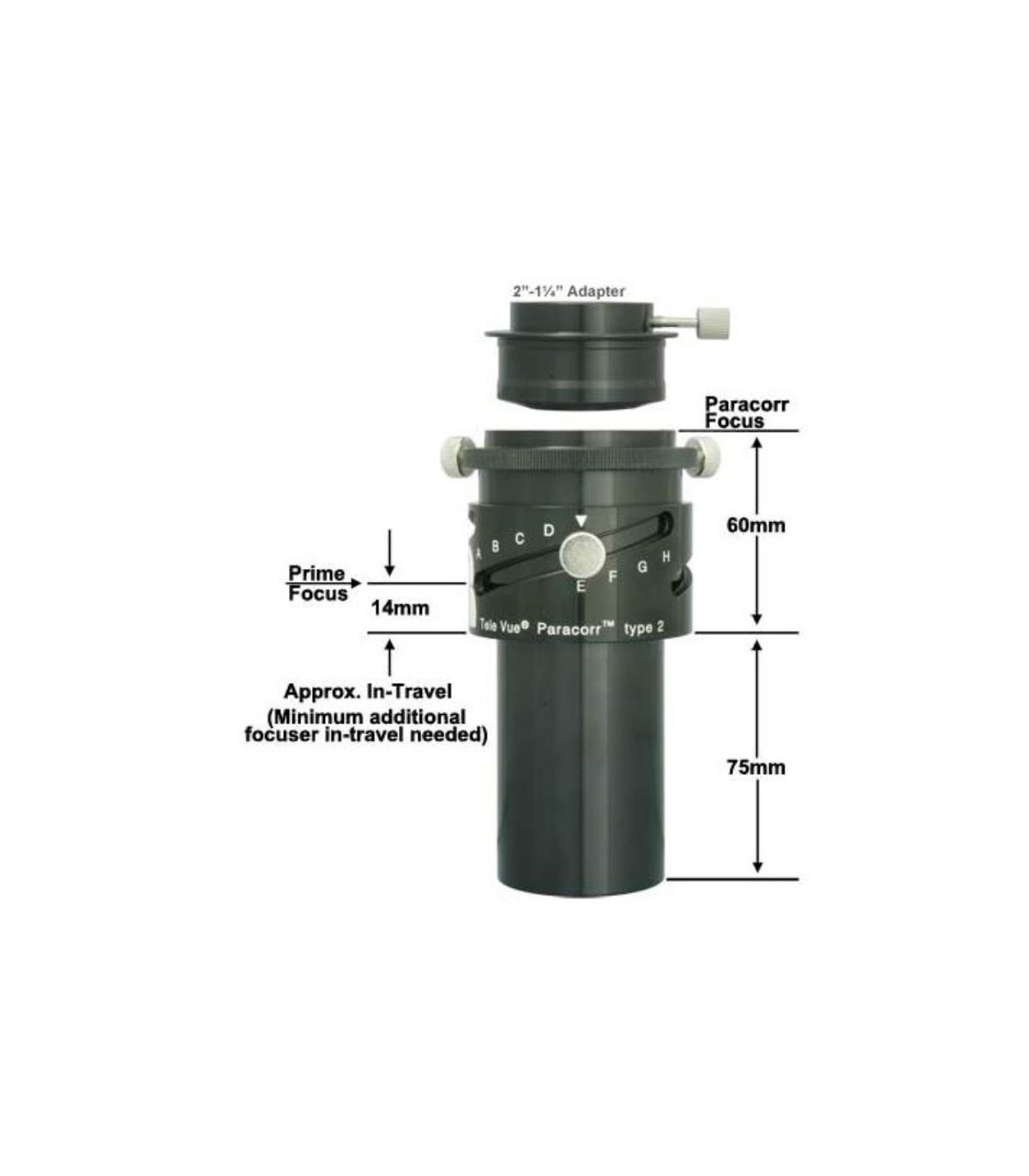

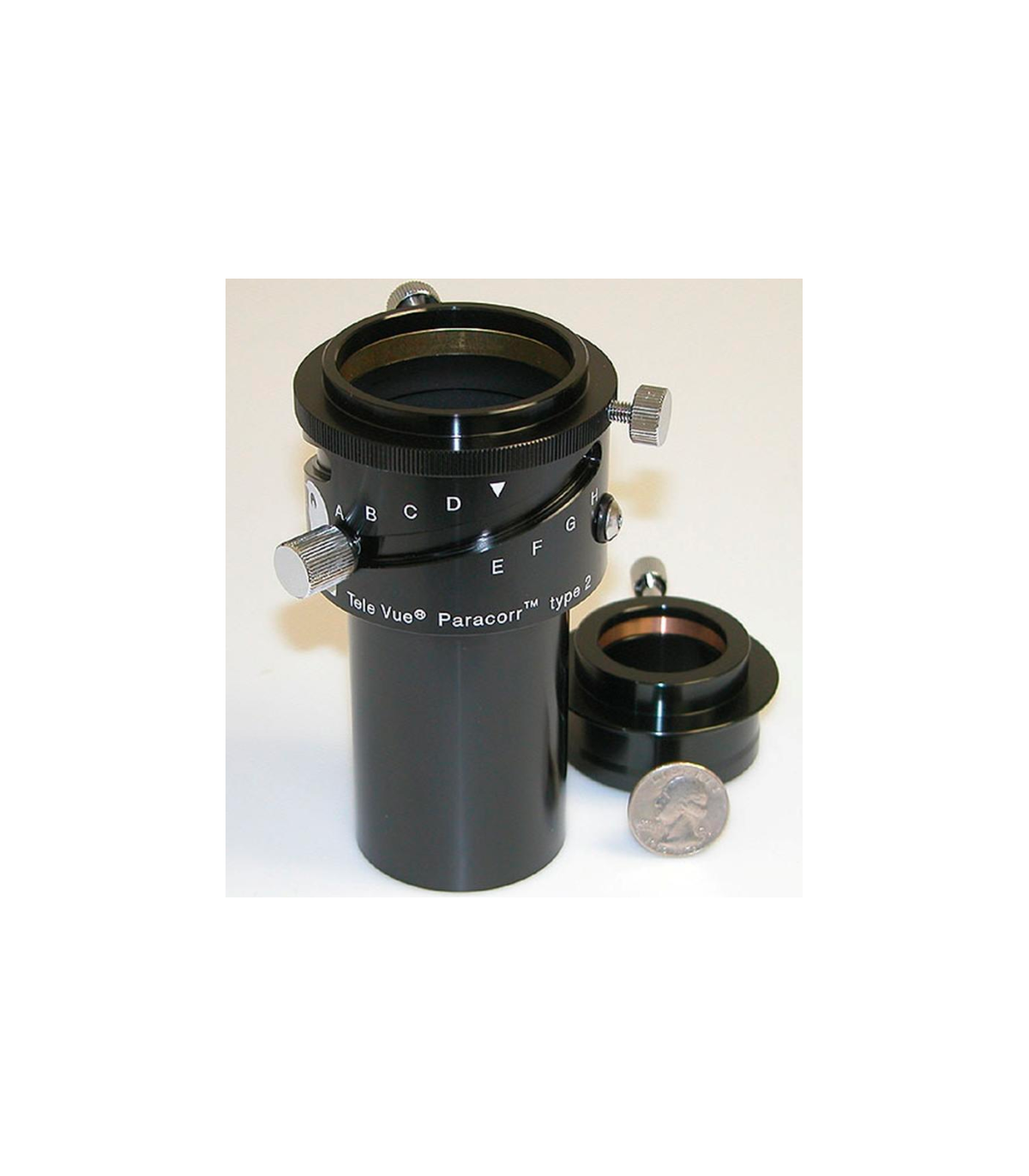

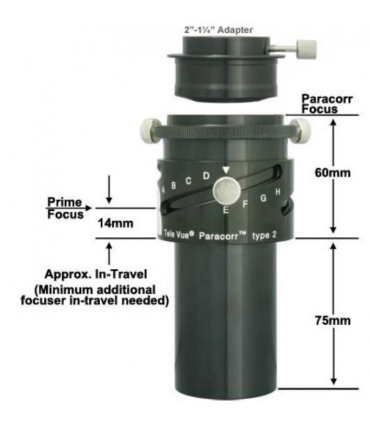

Paracorr can be used with 2" and 1.25" eyepieces. For visual use, slide Paracorr into your focuser like a Barlow lens and your eyepiece into Paracorr. 1.25" eyepieces will use Paracorr's special low profile 1.25" reducer adapter. Paracorr is threaded for 2" filters. Optimization of coma correction by using Paracorr's tunable top. As you have read, all Newtonian/Dobsonian telescopes can benefit from using Tele Vue Paracorr (Parabola Corrector) to remove coma in the image One aspect to optimize this correction is the distance from the eyepieces focus point (field stop location) to the last Paracorr lens surface (within a small tolerance of +/- of course Typical eyepieces used with fast Newtonians may have different field stop locations "Tunable Top" allows optimized aberration control for all Tele Vue eyepieces and many others by simply loosening a screw and turning the Tunable Top .The height of the eyepiece barrel goes up and down, allowing you to maintain the proper field stop at the Paracorr lens distance.For your reference, here is a guide Recommendations guide for choosing the best Tele Vue multi-eye settings. parts for optimal correction:
astrophotography

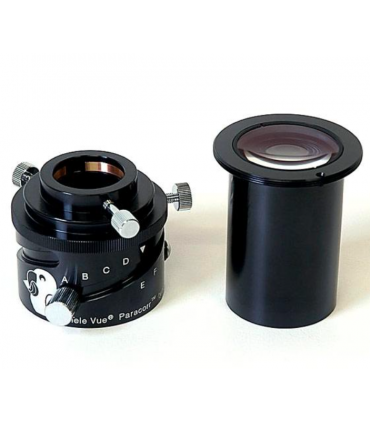

Paracorr also works with DSLR and CCD cameras. Simply unscrew the lens assembly from the Tunable Top and attach the appropriate threaded accessory tubes and camera mounts. Mount your DSLR or CCD on the Paracorr Type 2 lens set and full-frame photo quality will be spectacular, as star image sizes in the image plane can be less than 0.001" on the frame Full for an f/4.5 mirror.Out-of-field sharpness is further enhanced as Paracorr also acts as a field flattener.Works at all f-ratios to f/3 and slower without adding any false color or spherical aberration. .In general, we recommend APS size formats, which would typically produce 90% illumination on a 30mm diagonal chip Paracorr Type 2 allows the optical assembly to be separated from the Tunable Top and used with Tele Vue imaging system components to allow use with SLR and CCD cameras 27mm diameter APS size formats recommended to minimize field vignetting Ideal for mirrors as fast as f/3
Especificaciones:
En general |
|
Peso (g) | 499 |
Color | negro |
Serie | Paracorr |
Tipo | Aplanadoras, Correctores, Reductores |
Tipo de construcción | Corrector de coma |
