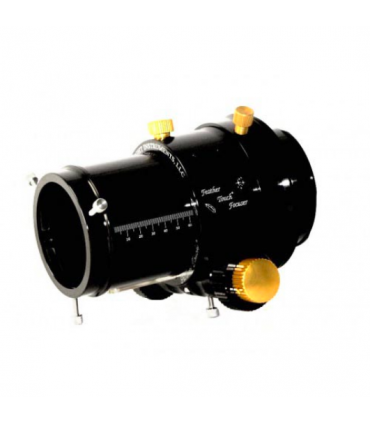

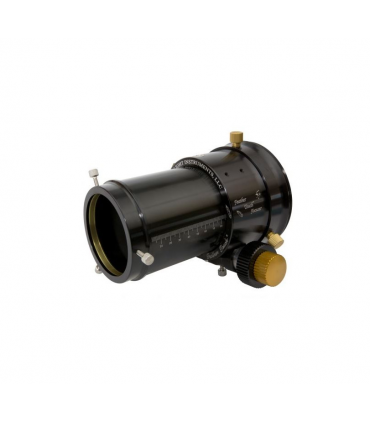

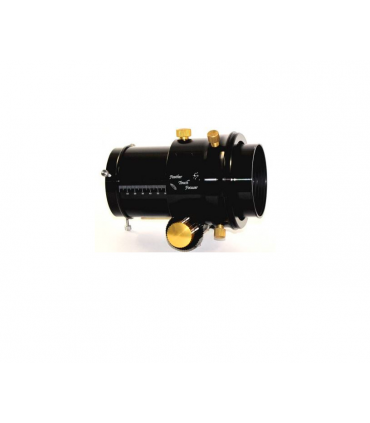

Starlight Instruments Feather Touch® FTF3235B-A TRUE 3.0" Dual Speed Focal Dia. with 88.9mm Travel
The FTF3235B-A is a high-end focuser for refracting telescopes for applications such as astrophotography, but also for observation with 3" eyepieces.
♦ Extension tube adjustment range 88.9 mm
♦ 100% correct field level position - extension tube does not yield
♦ 81.28mm free illumination so full format tabs are also illuminated
♦ 3.2" clear opening allows use of 3" clamps and therefore 3" eyepieces
♦ Extension tube adjustment by rack and pinion. The drawtube itself is smooth in a combination of Teflon and stainless steel.
♦ Shown with optional A32-3203-1 telescope connection adapter with rotation and optional 3" and 2" adapter, not included
♦ Adapter A32-3203-1 is required for 360° rotation and for adaptation to the M120x1 thread on the telescope side.
♦ 3" adapter and 2" adapter are not included in the scope of delivery, they are optional
Starlight Instruments TRUE 3" Touch Pen Focuser with Micro Reduction - 88.9mm Adjustment Range
This focuser shares the same construction and design as the smaller 3" focusers, but has been oversized to accommodate 3" observation accessories.
The clear opening is 3.2", so a 3" clamp can be used, which fits 3" eyepieces or 3" star diagonals. This is also the difference from standard 3" focusers.
Compared to 2" focusers, the focuser above all offers better illumination, which is necessary for working with larger chips or fast telescopes.
The adjustment range is generously dimensioned at 88.9 mm and is therefore also suitable for refractors with a large back focus.
The advantages of Starlight Feather Touch focusers:
♦ 100% correct position of the image plane - no tilt
♦ Good illumination even for large sensors
♦ Micro reduction for more precise focus
♦ Free adaptation to different types of telescopes (connection adapter see recommended accessories)
♦ Brake for free resistance adjustment - eliminates the need for clamping
♦ Regulation of the extension tube by rack and pinion decoupled from the bearing
♦ Brass toothed racks and hardened stainless steel toothed wheels ensure a responsive fit even under maximum loads
♦ Long life: the Feather Touch focuser is for life
♦ Wide range of accessories and connection adapters, as well as the possibility of motorization
Note: Telescope connection adapters and adapters on the eyepiece side are not included in the scope of delivery.
Especificaciones:
| Tube travel: | 88,9 mm (3.5") |
| Clear aperture: | 81.28 mm (3.2") |
| Stray light treatment: | internal baffle system for avoiding stray light |
| Rotation: | 360° rotation with optional connection adapter |
| Connection telescope side: | dovetail ring clamping TFPE |
| Connection eyepiece side: | M86x1 female thread |
| Lifting Capacity: | up to 7 kg (16 lb) |
| Racked In from Mounting Face: | 93,27 mm (3.672") |
| Racked Out from Mounting Face: | 136,35 mm (5.368") |
